Home >> Volvo >> 2011 >> XC60 AWD L6-3.0L Turbo VIN 90 B6304T4 >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams >> Electrical Diagrams >> Follow-Me-Home Lighting LHD

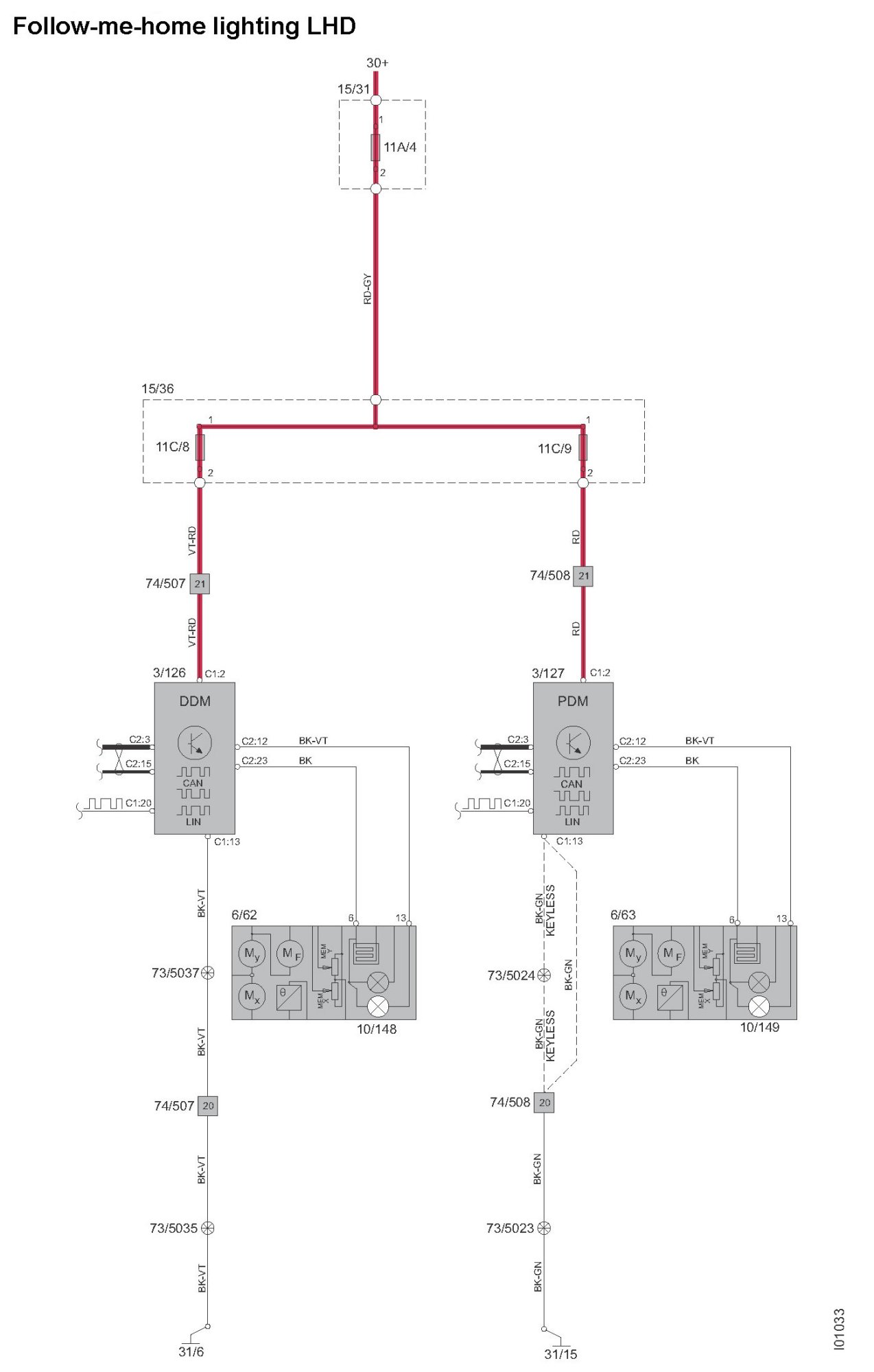

Follow-Me-Home Lighting LHD



Follow-Me-Home Lighting LHD







Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
