Electric engine heater, 110 V, 6-cyl

INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text

Electric engine heater, 110 V, 6-cyl

Applies to the S80

- Remove the left-hand cover panel under left-hand headlamp by first carefully prizing loose the right-hand end face until the four clips on the inside release, following which, pull it out to the right.

Note! Do not damage the paintwork.

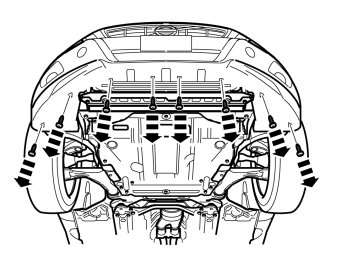

- Remove the engine splash guard.

- Drill out the marked hexagonal surface and cut/file until it is level at the edges.

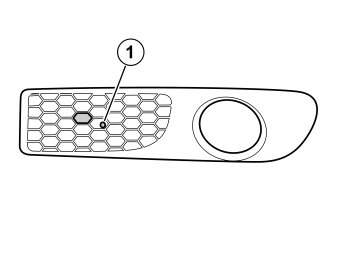

- Drill a - 8.5 mm (21/64 ") diameter hole in the hexagonal surface (1) approximately as illustrated.

Illustration A, B, C and D
- Take the front engine block heater socket's components from the kit and assemble the front engine block heater socket as illustrated.

Illustrations A and B

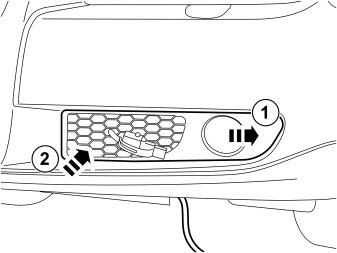

- Secure the front engine block heater socket's connector into the panel.

Illustrations A, B and C

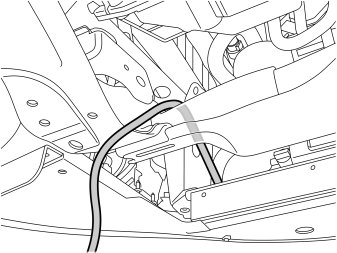

- Route the front engine block heater socket's cable on the inside of the strut, over/inside the left-hand front corner of the subframe and let it hang down as illustrated.

- Press in the panel with the connector in its location.

Applies to the V70

- Remove the engine splash guard.

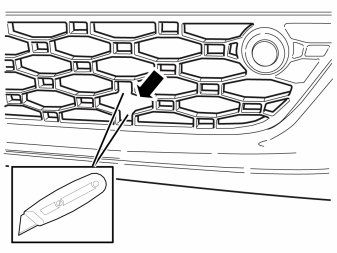

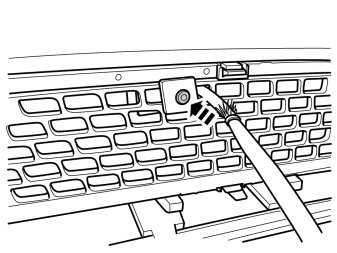

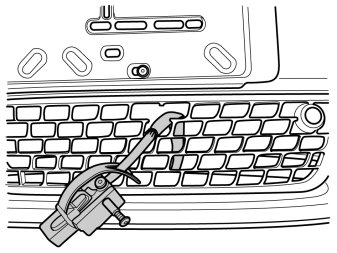

- Take a sharp knife. Cut off the grille section as illustrated.

Illustration A, B, C and D

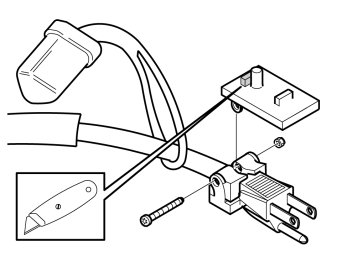

- Take the front engine block heater socket's components from the kit and assemble the front engine block heater socket as illustrated.

- Disconnect the three clips from the air baffle. Pull the air baffle downwards slightly to facilitate access.

Illustrations A and B

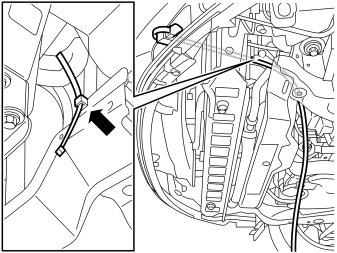

- Route the front engine block heater socket's cable on the inside of the strut, over/inside the left-hand front corner of the subframe and let it hang down as illustrated.

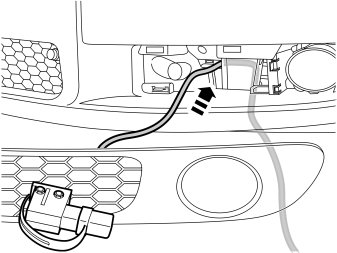

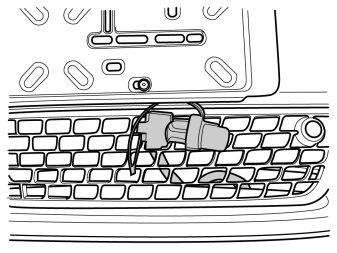

- Press the connector into place.

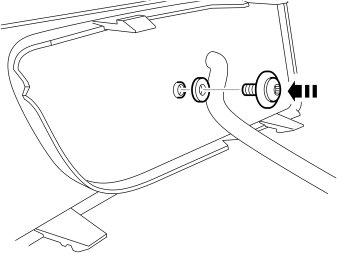

- Install the front engine block heater socket in the hole below, centre it in the hole. Tighten in the connector using a Torx screw (L=40 mm) and the mounting plate from the kit.

Applies to the XC70

- Remove the engine splash guard.

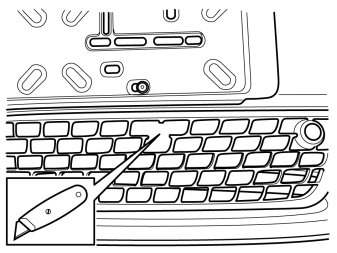

- Take a sharp knife. Cut off the grille section as illustrated.

Illustration A, B, C and D

- Take the front engine block heater socket's components from the kit and assemble the front engine block heater socket as illustrated.

Illustration E

- Cut off the small lug on the rear mounting plate.

- Disconnect the three clips from the air baffle. Pull the air baffle downwards slightly to facilitate access.

Illustrations A and B

- Route the front engine block heater socket's cable on the inside of the strut, over/inside the left-hand front corner of the subframe and let it hang down as illustrated.

- Press the connector into place.

- Install a tie strap with edge clip on the panel edge in the front edge at the left-hand front corner of the subframe.

- Take two clips from the kit and install them on the upper edge of the subframe, and turned in toward the subframe U-profile. Install the clips approximately in the positions illustrated.
- Install a tie strap with clip in the hole in the upper edge of the subframe in order to clamp up any excess cable. The tie strap must be fitted turned in toward the subframe U-profile

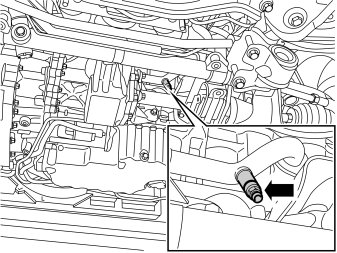

- Drain the coolant.
- Tighten the nipple after the coolant has been drained.

Applies to the XC60

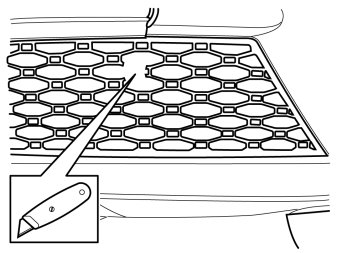

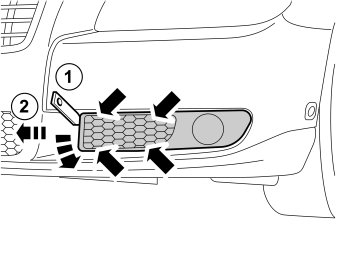

- Take a sharp knife and cut off the grille sections as illustrated.

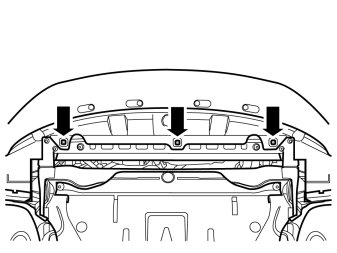

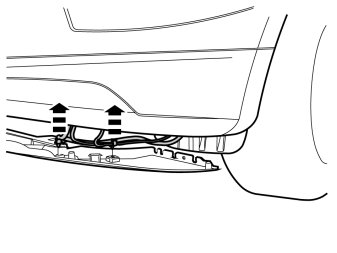

- Detach the three clips from the air baffle by squeezing the catches together and pulling them off.
- Detach the air baffle from the bumper cover.

- Disconnect the cable harness and the washer hoses with clips from the air baffle's left-hand side.
- Secure the left-hand end of the air baffle just below the bumper cover.
