Connecting Rod: Specifications






















Cap connecting rod

Stage 1 30 Nm
Stage 2 90 degree

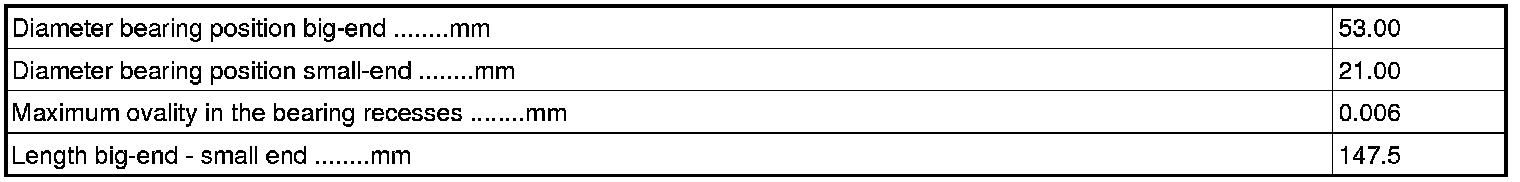

Connecting rods
