Diagram Information and Instructions
>>
List of Components By Component Number
>>
Changes Implemented Up to and Including November 2010
Changes Implemented Up to and Including November 2010
List Of Components

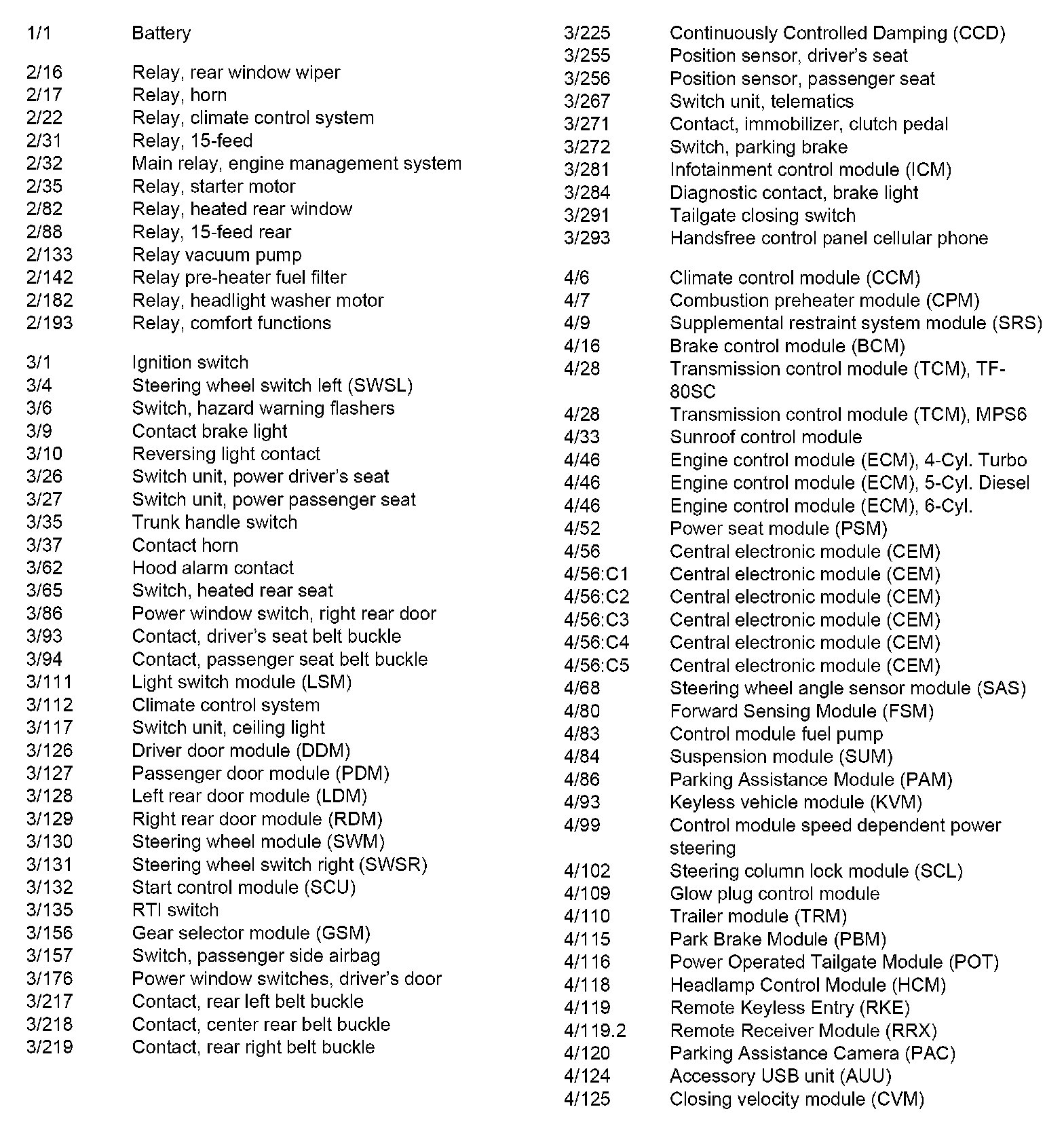

1/1 - 4/125:

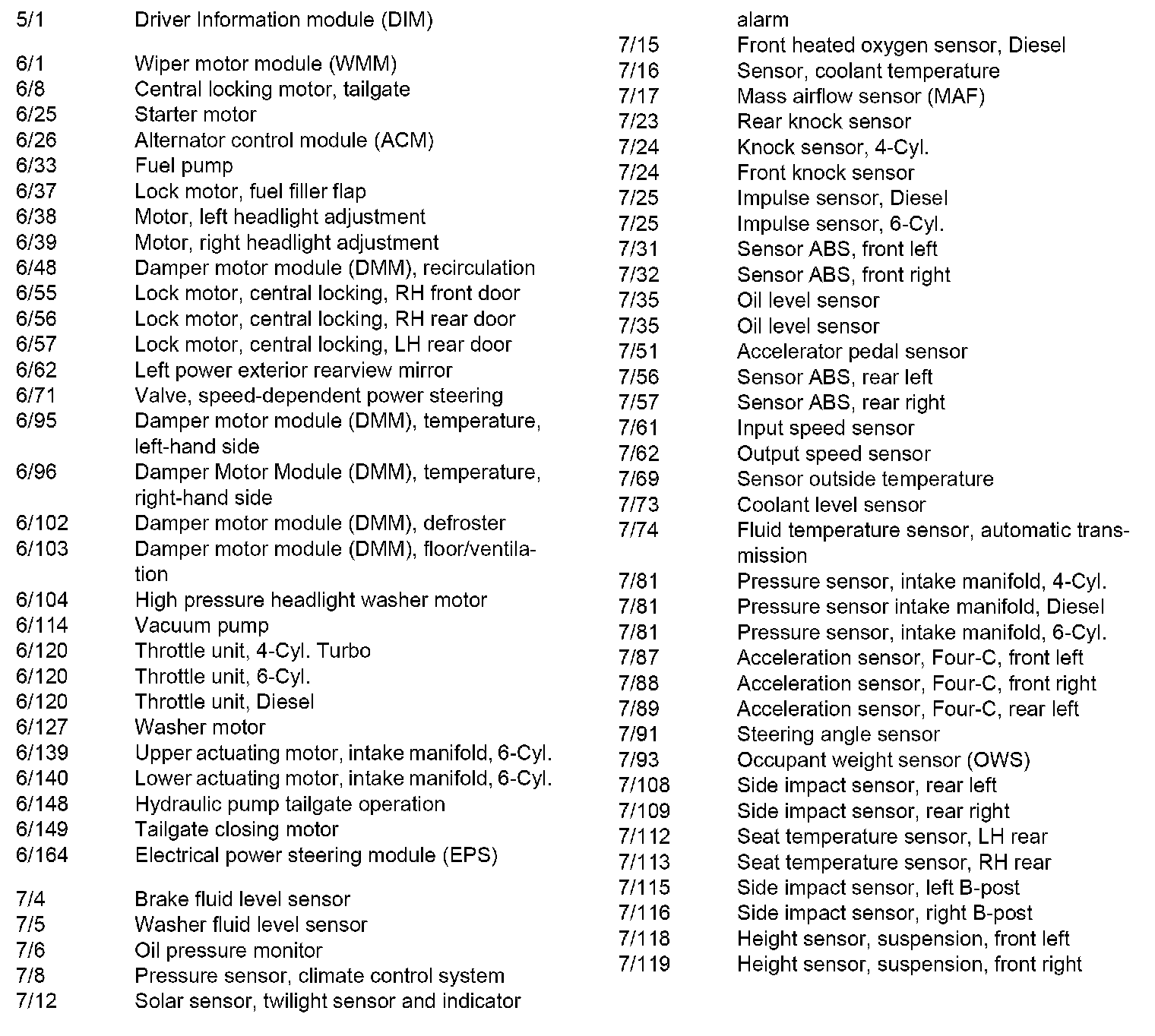

5/1 - 7/119:

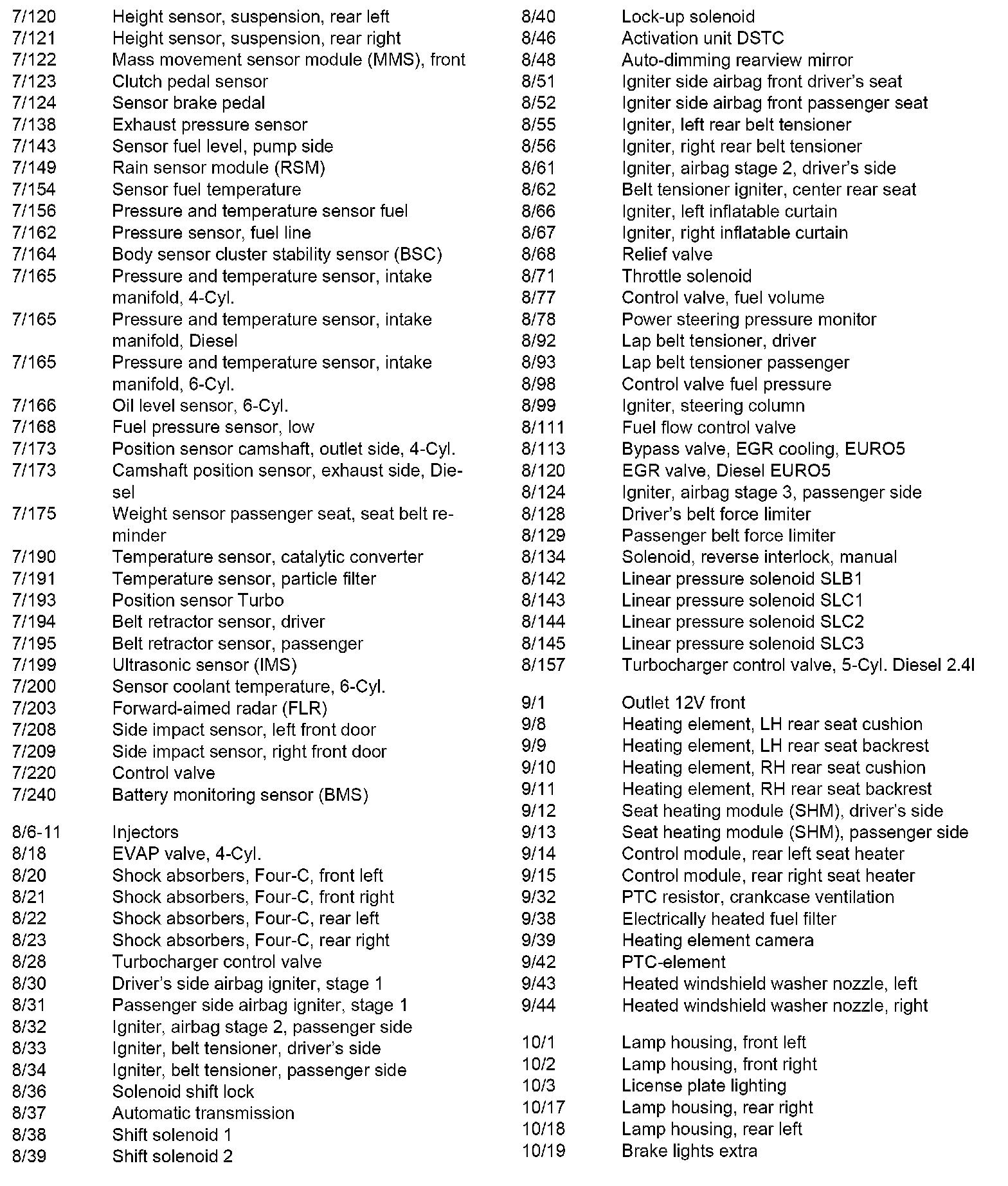

7/120 - 10/19:

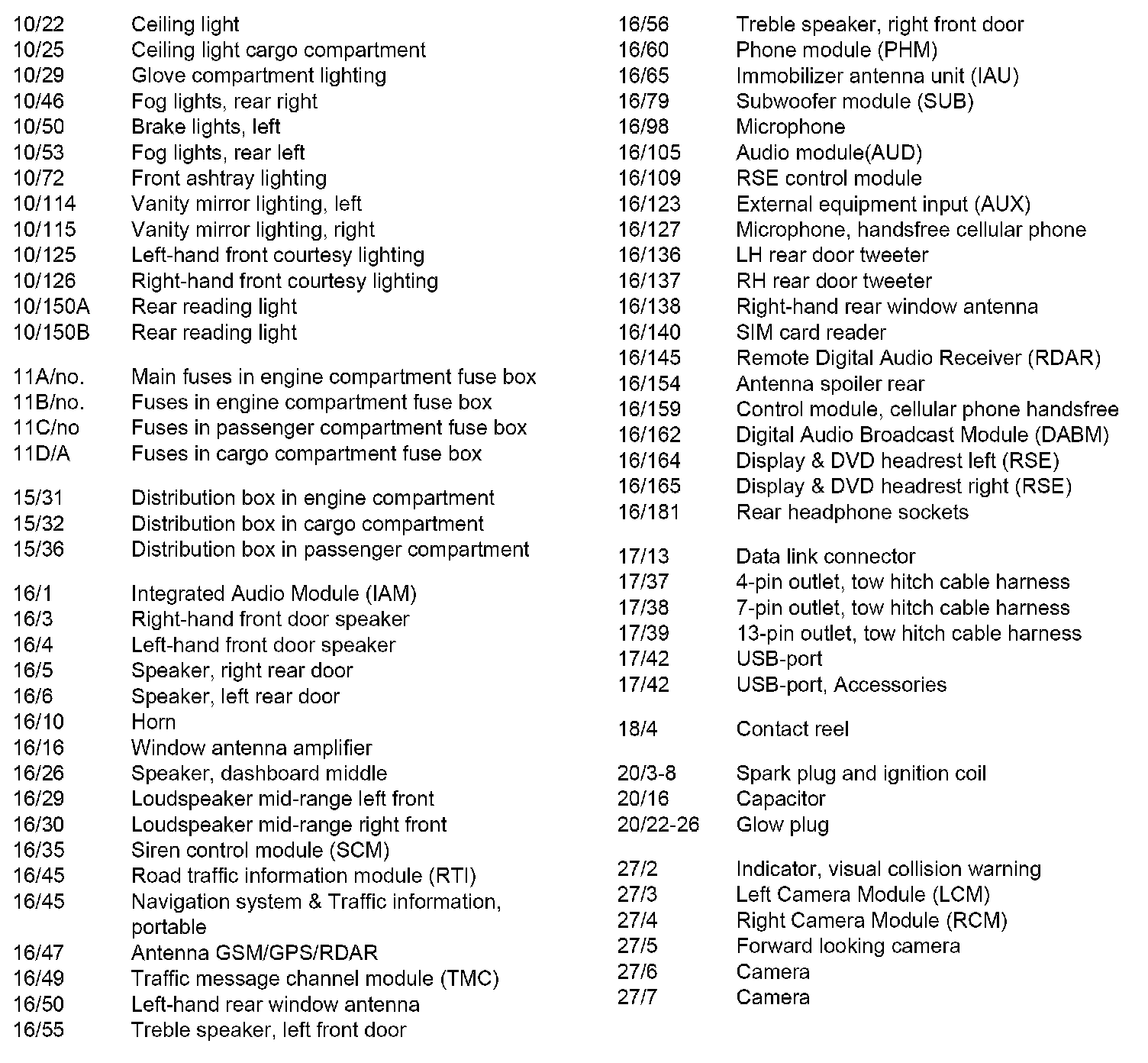

10/22 - 27/7:

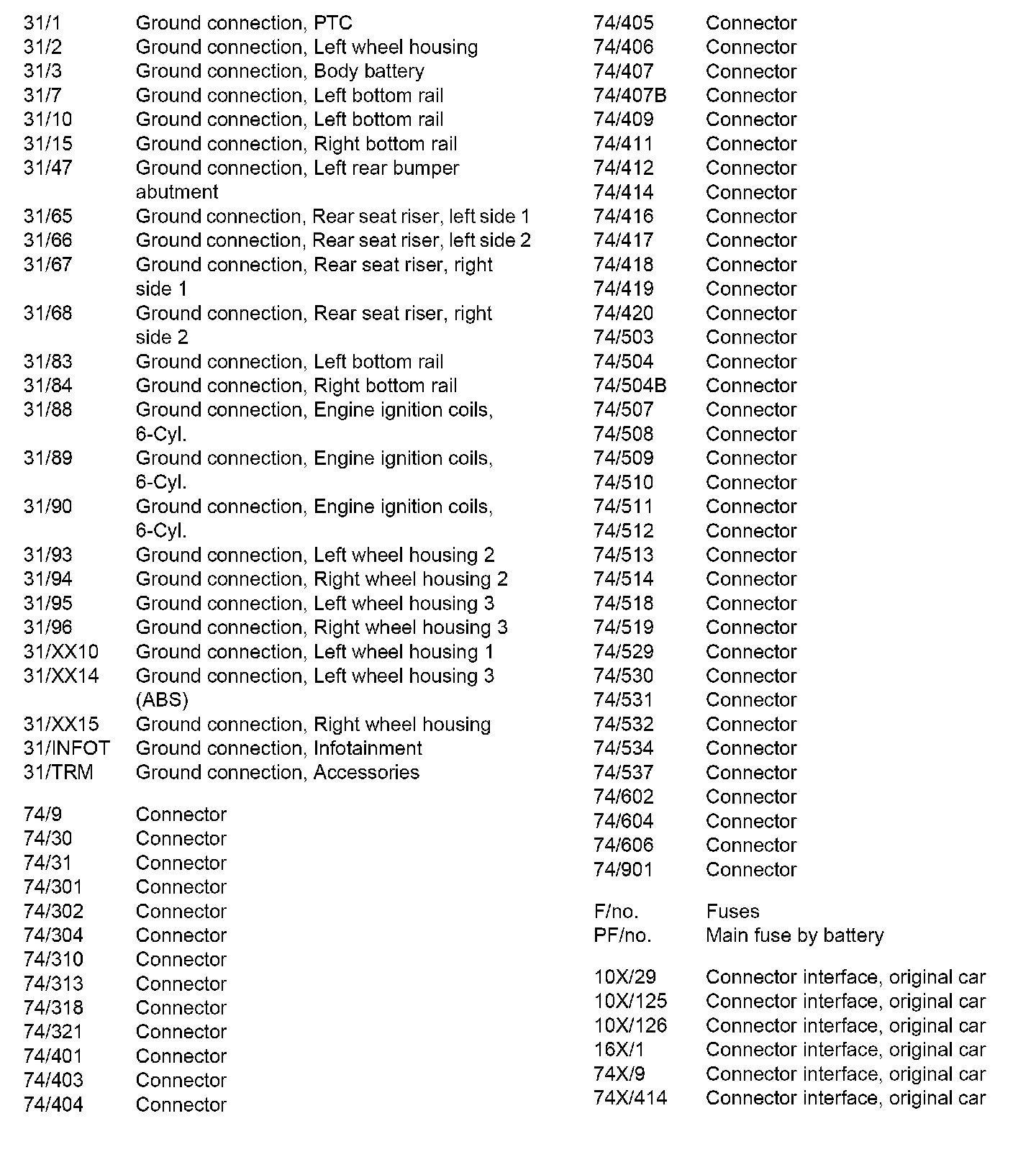

31/1 - 74X/414:
