Combined Instrument Panel

Combined instrument panel

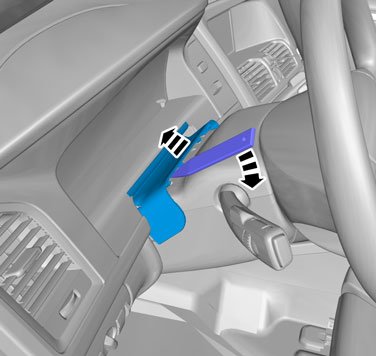

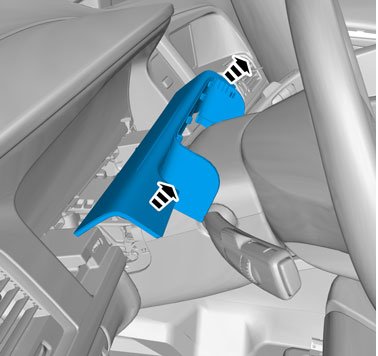

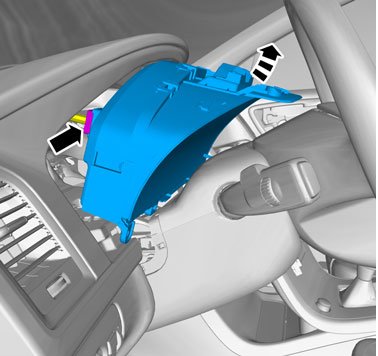

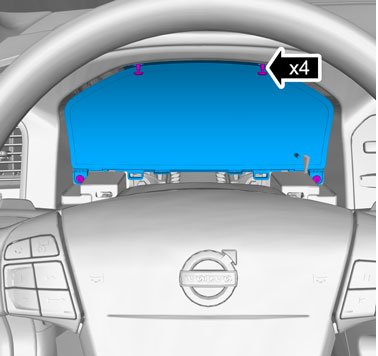

Removal





Caution! The instrument cluster and generic electronic module (GEM) must only be removed and new ones installed and loaded with software 1 at a time.

















Caution! Take extra care when handling the component.

Note! Make sure that the component terminals are not bent or damaged.

Installation

To install, reverse the removal procedure.

Order and download software according to: Programming and Relearning

Restore customer parameters according to: Programming Driver information module (DIM)
