Design






Design

Tailgate system

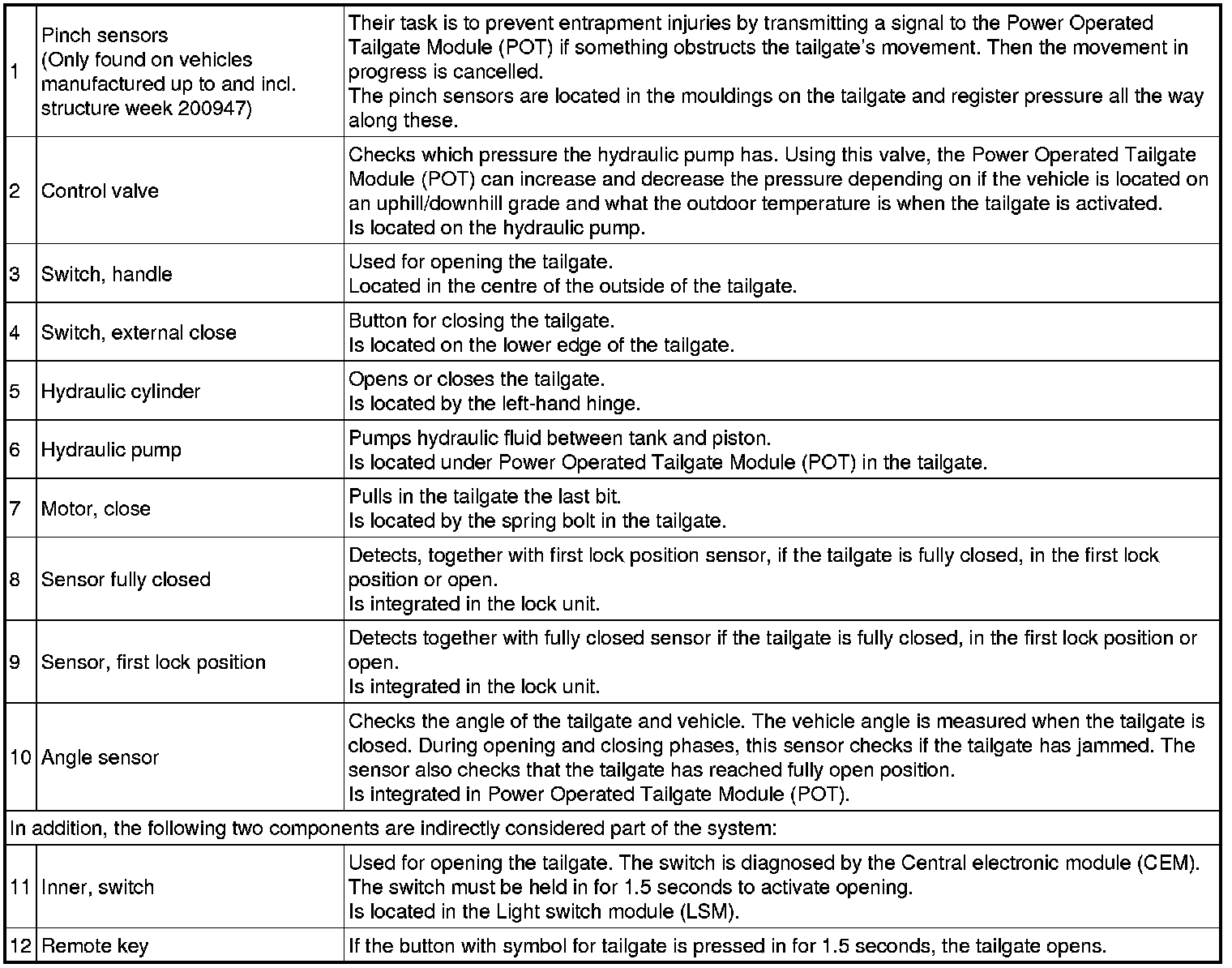

Location of Components, Power-Operated Tailgate Module (POT):




The task of the Power Operated Tailgate Module (POT) is to check the tailgate's electro hydraulic opening and closing mechanism. To achieve this, it is included in a system together with the following components:
