Title XC60: Accessory RTI Installation Extra Co-Ax cable requiredRef No US24197.1.1 en-US
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 3960 Func Desc accessories
Status Released
Status Date 2011-01-21
Issue date 2011-01-20
Reference
Attachment

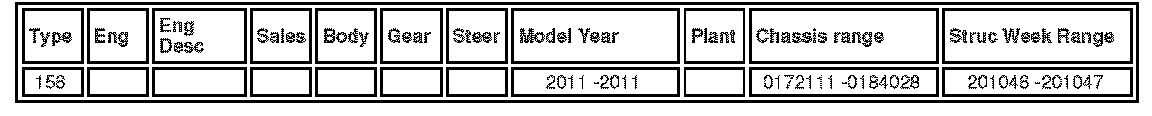

Vehicle Type

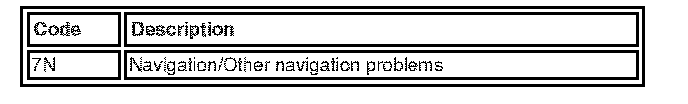

CSC
DTC
Text
DESCRIPTION:
When installing the accessory RTI navigation system en XC60 vehicles produced during structure weeks 2010w46 and 2010w47 it will be necessary to add a Co-Ax cable from connector 74/119 to the IAM (Integrated Audio Module) GPS (Global positioning System) antenna connection.
PRODUCT MODIFICATION:
XC60 produced from structure week 2010w48 with option "RTI preparation" will have this cable included from production.
SERVICE:

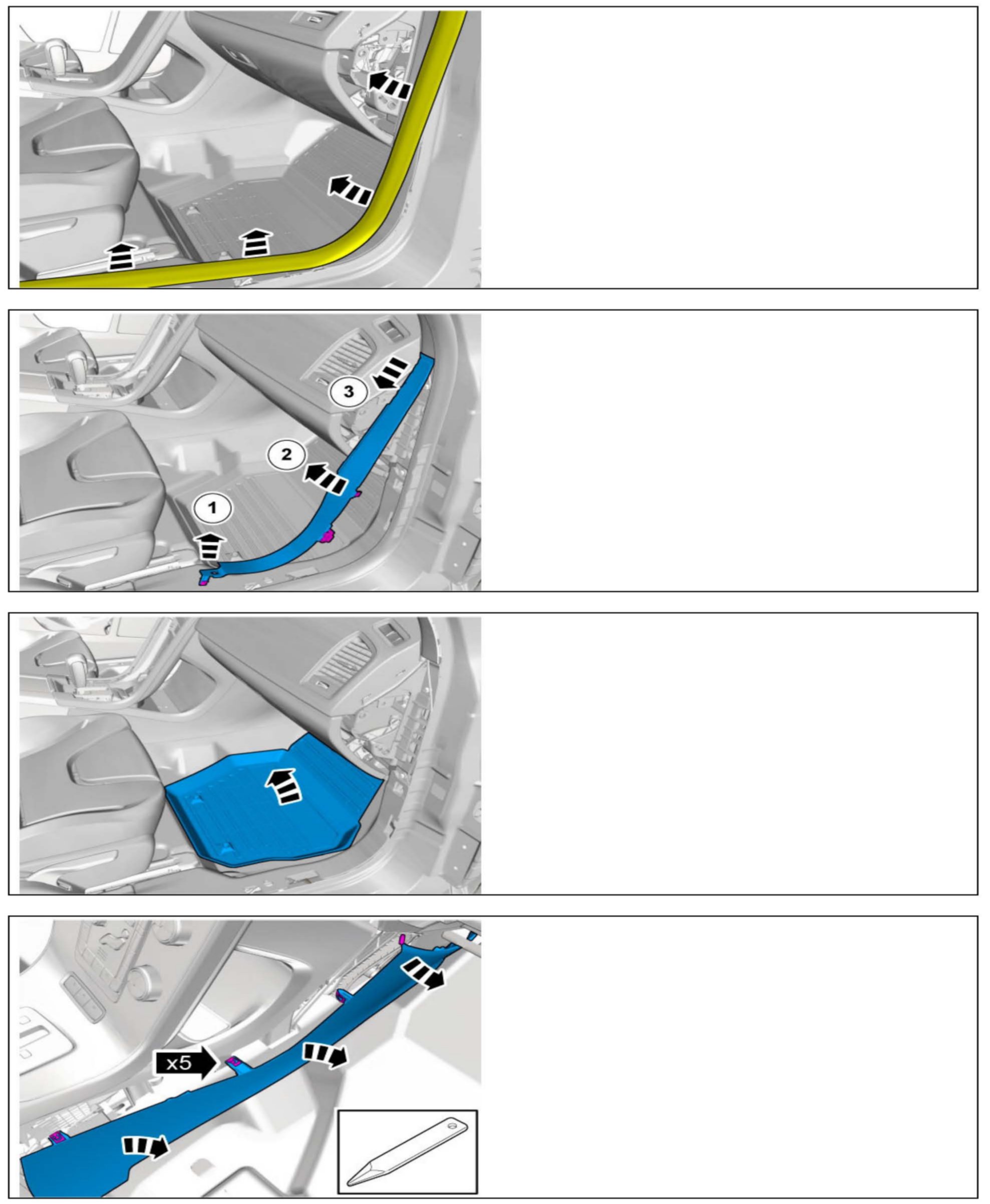

When installing accessory RTI part number 31266958 on vehicles listed in the header please follow the mounting instructions in the attachment mounting instruction RTI Co ax. pdf

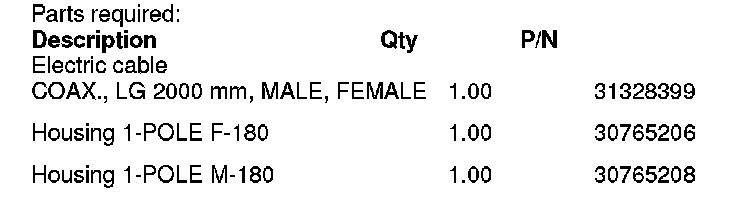

Parts Required
VOLVO STANDARD TIME GUIDE OPERATION NUMBER:
08029 Accessory RTI installation Extra Co-Ax cable required struc week 46 and 47 only 0.5 hr

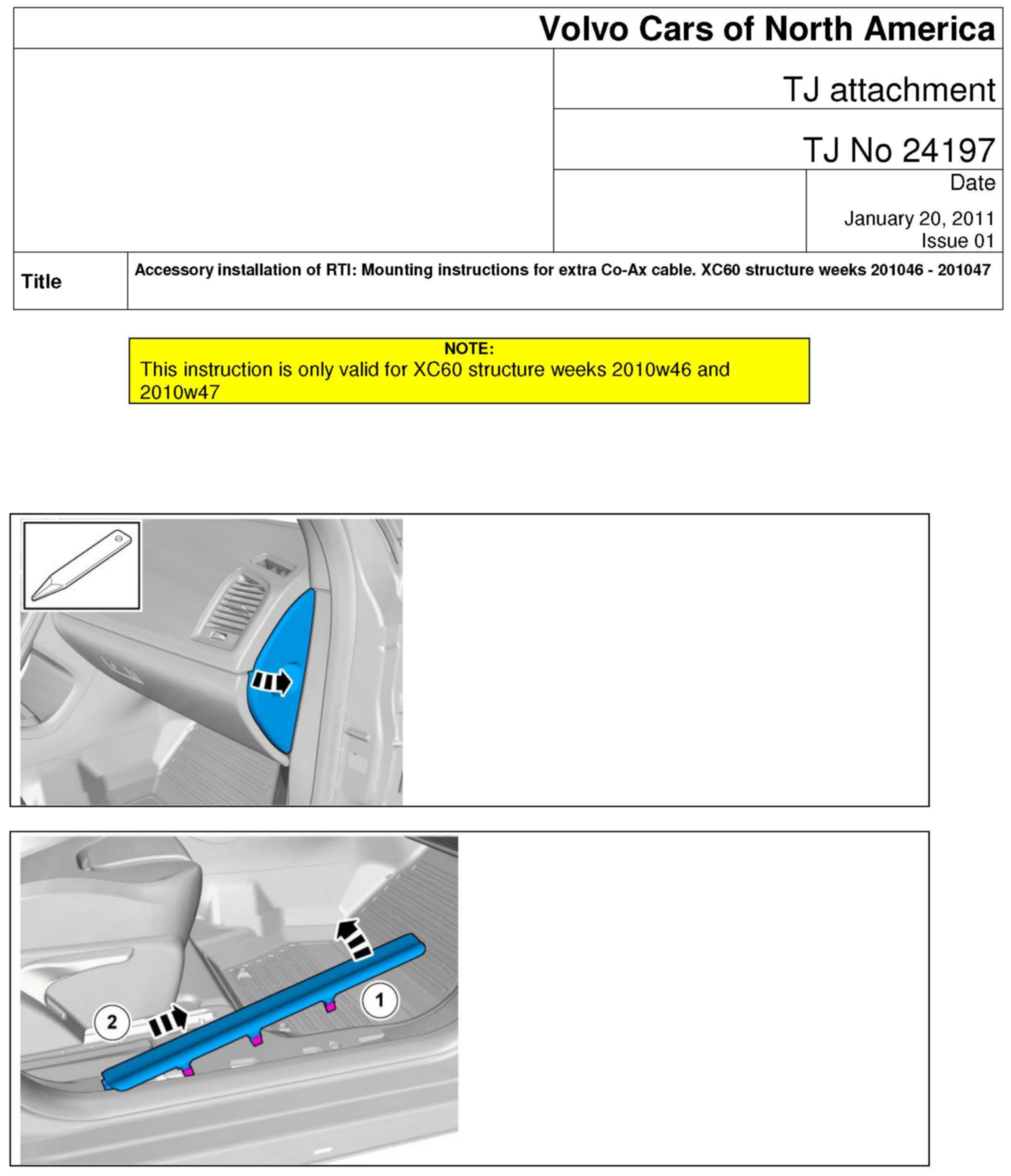

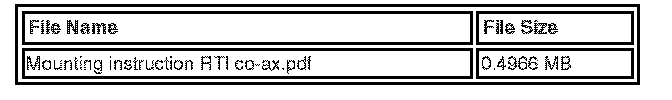

ATTACHMENTS
TJ Instructions
