Pinout Values and Diagnostic Parameters

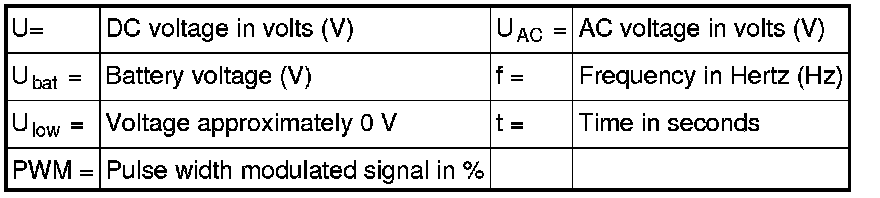

Signal specification

General
All the values given below are between the respective terminal in column 1 and terminal #A11 in column 1 (power ground) unless otherwise stated in brackets after the table entry.

Note! It is important to connect the breakout box and to check the ground connections before starting to measure.

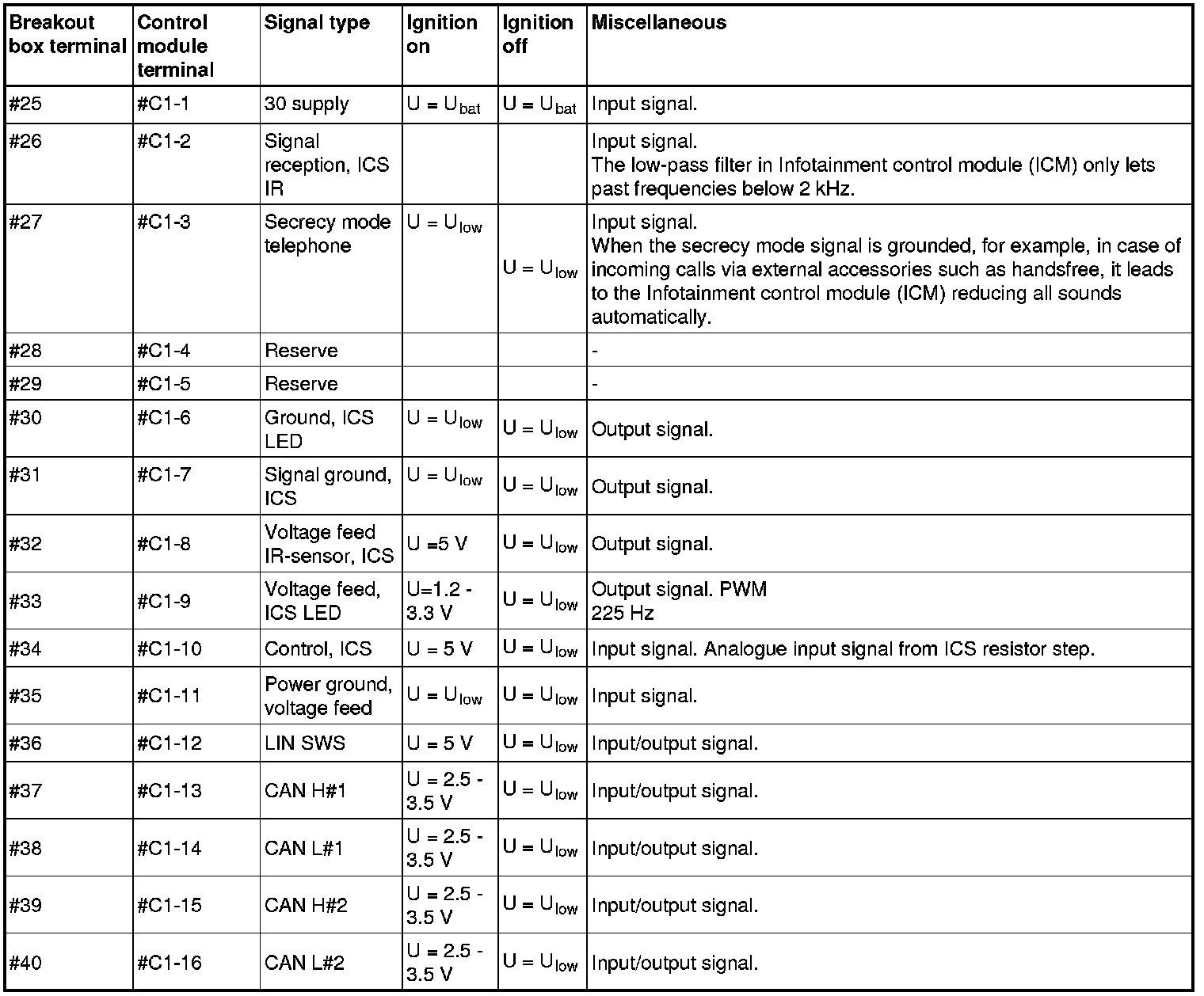

Connector C1









ICS Infotainment Control Switch
IR Infra Red
LED Light Emitting Diode
LIN Local Interconnect Network
SWS Single Wire Sealing

Connector B
