Function

Function

Controlling functions

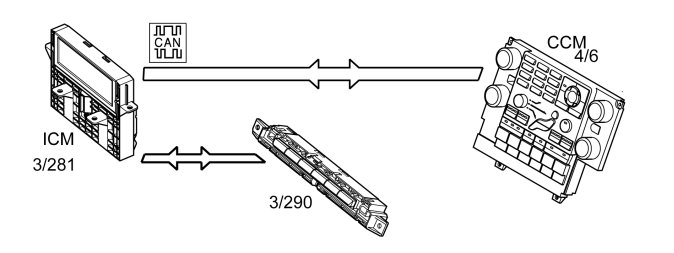

The infotainment control module (ICM) (3/281) is partially controlled by the control module's own keypad (3/290) and partially by the keypad on the climate control module (CCM) (4/6). The signals from the keypad on the climate control module (CCM) are transmitted via the control area network (CAN).

The functions that are controlled by the keypad of the infotainment control module (ICM) are:
- AM
- FM
- CD
- AUX
- Eject
- Digital radio
- USB (option/accessory)
- iPod (option/accessory)
For more information about the keypad on the climate control module (CCM), see Design and Function, Climate Control Module (CCM).

Controlling the functions using the steering wheel buttons

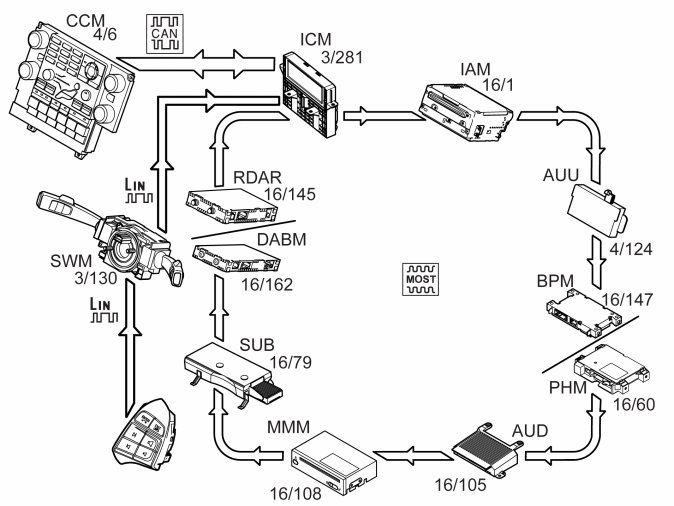

The steering wheel buttons connected to the steering wheel module (SWM) (3/130) can be used to control:
- volume control and CD track / radio selection
- menu selection for traffic information
- volume control during a hands free call and menu selection for phone module (PHM) (16/60) and Bluetooth phone module (BPM) (16/147).
The signals from the steering wheel buttons are transmitted to the steering wheel module (SWM) with LIN communication. The steering wheel module (SWM) transmits the signals on to the Infotainment Control Module (ICM) (3/281) using LIN communication. The infotainment control module (ICM) in turn transmits the signals on to the affected control module on the MOST network.
For more information, see Design and Function, steering wheel module (SWM).

Functions controlled by the infotainment control module (ICM)
For information about the functions controlled by the infotainment control module (ICM) but carried out by other control modules on the MOST network, see Design and Function for the relevant control module and for the MOST network.

Infotainment Theft Protection (ITP)




The Infotainment Theft Protection (ITP) function is designed to prevent non-approved control modules from being installed in the infotainment system. This is to prevent the theft of units.

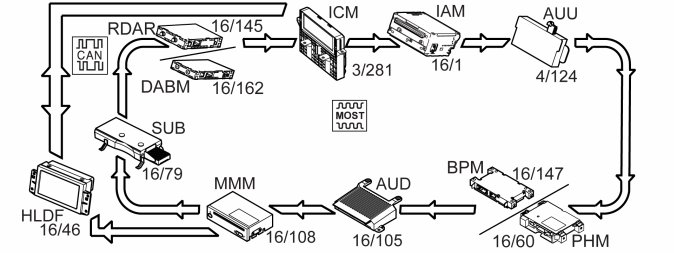

The function is controlled by the infotainment control module (ICM). The infotainment control module (ICM) (3/281) checks the serial number on all control modules in the MOST network and the High Level Display Front (HLDF) (16/46) and compares these with a list stored in the central electronic module (CEM). The list is transmitted to the infotainment control module (ICM) via the controller area network (CAN). The infotainment control module (ICM) retrieves data about the serial number of the control modules via the MOST network. The infotainment control module (ICM) compares the information with the stored serial numbers.
If a control module is not in the stored list, it is disconnected from the MOST network and the functionality of this control module is blocked. This means that control modules in the MOST network cannot be moved from one vehicle to another. This function also applies to the High Level Display Front (HLDF), which communicates with the infotainment control module (ICM) via the controller area network (CAN).
If a control module is not included in the stored list or if a control module in the stored list responds incorrectly, then a diagnostic trouble code (DTC) is stored in the infotainment control module (ICM).
For further information, see Design and Function, MOST.
