Alarm, Volvo Guard Alarm System, Movement Sensor

Alarm, Volvo Guard Alarm System, movement sensor



























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






Alarm, Volvo Guard Alarm System, movement sensor

Note! This accessory requires software unique to the car.





- Turn the ignition switch to position 0.

Note! Wait at least three minutes before disassembling the connector or removing other electrical equipment.

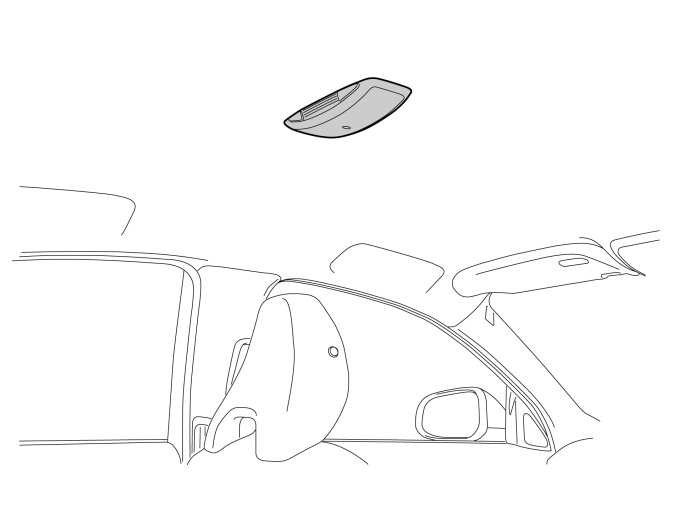

- Carefully prize off the reading lamp in the roof using a weatherstrip tool.





- Disconnect the cable from the reading lamp and place to one side.





- Take the new reading lamp and sensor from the kit. Press the sensor into the reading lamp. Make sure that all catches have engaged. The connector in the sensor must point to the left and the connector in the lamp to the right when the unit is reinstalled in the car.





- Plug both connectors into the reading lamp/sensor.
- Reinstall the unit into the roof panel.





- Program the software.
