Ride Height Sensor: Service and Repair

Position sensor, suspension front

Operation number: 38623-2

Removal

Note! Removal steps in this procedure may contain installation details.

Follow instructions for lifting points body frame Refer to: Jacking points body Locations

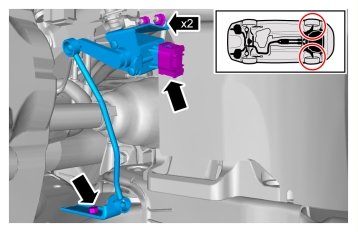

Note! Note the position of the component before removal.

Torque: M6, 10 Nm





Installation

To install, reverse the removal procedure.

Calibrate according to Calibrating position sensor and resistance
