Central Electronic Module (CEM)

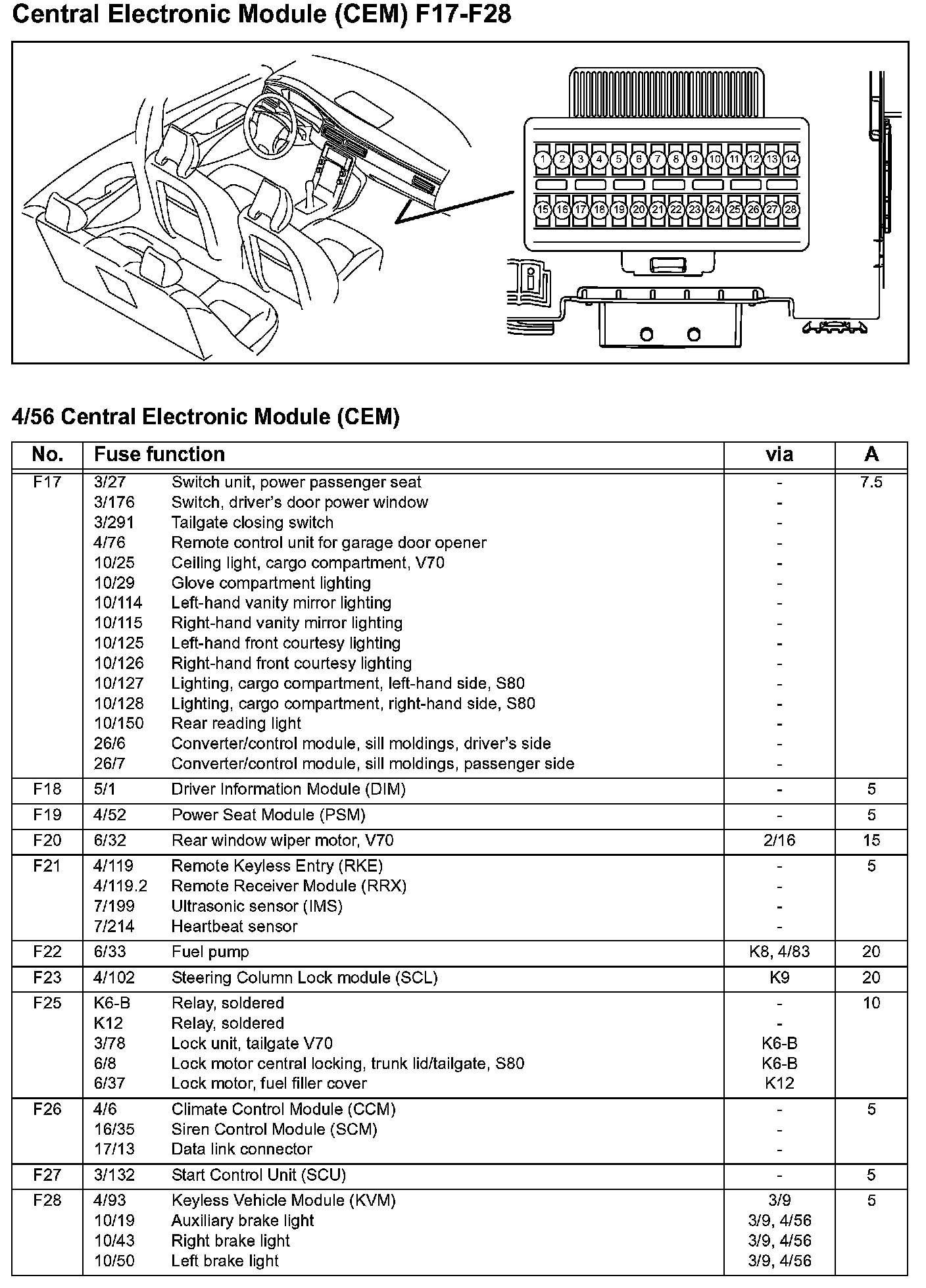

Central Elecrtronic Module(CEM) F17-F28:

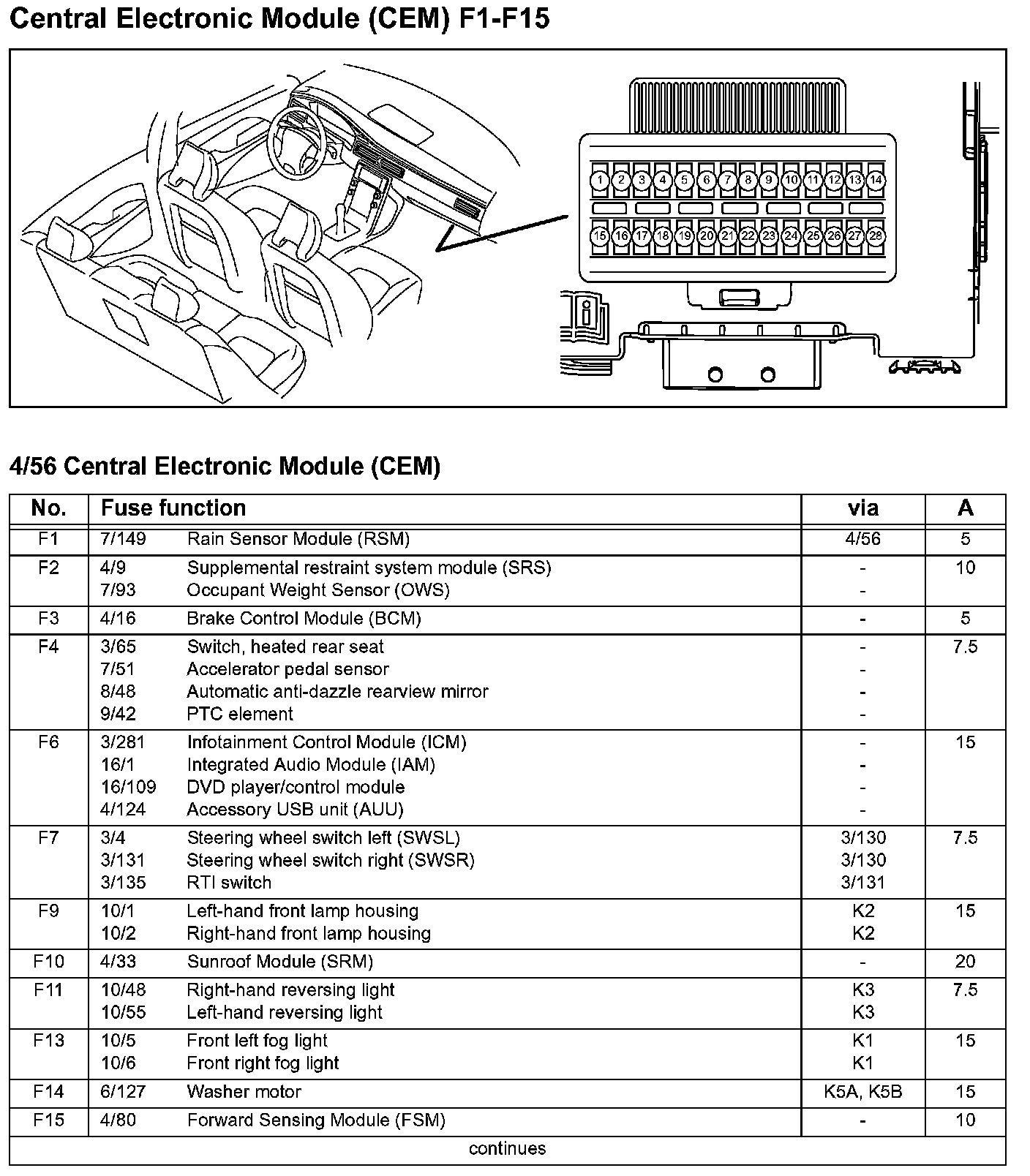

Central Electronic Module (CEM) F1-F15:
