Engine Controls - MIL ON/DTC ECM P125000
TIE - Technical JournalTitle: "ENGINE SYSTEM SERVICE REQUIRED" message and ENGINE CONTROL MODULE (ECM) 125000
Ref No: US22960.2.0 en-GB
Issuer: -
Partner: 3 US 7510 Volvo cars North America
Func Group: 2830 Func Desc: control system, ignition
Status: Release
Status Date: 2010-06-21
Issue date: 2010-06-21
Reference: VIDA, VSTG
Attachment

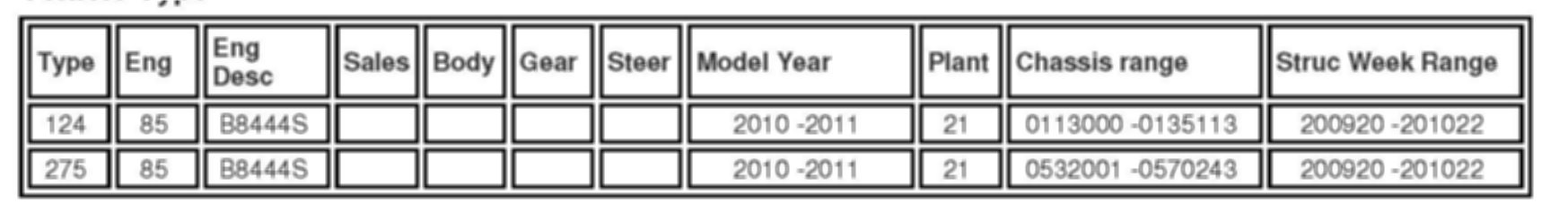

Vehicle Type
CSC

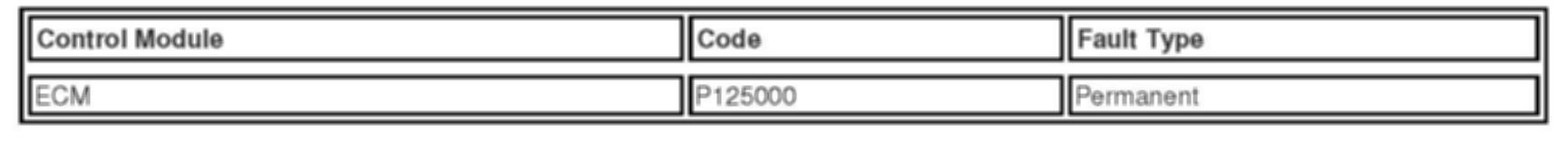

DTC
Text

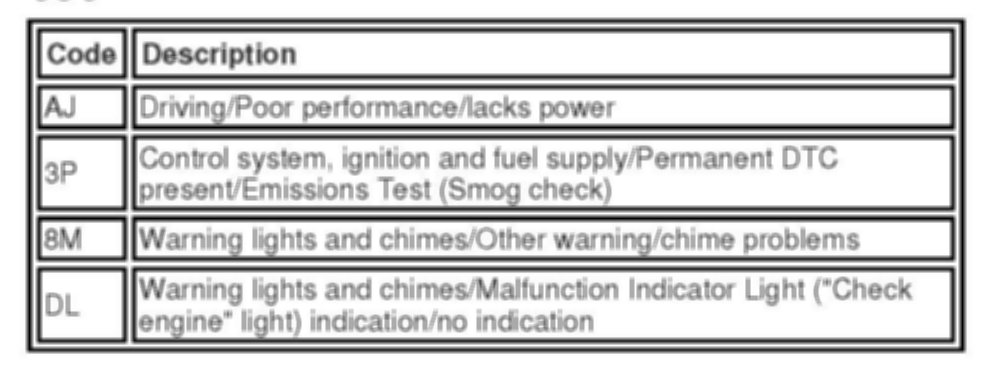

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION:
A CEL (Check Engine Light) and "ENGINE SYSTEM SERVICE REQUIRED" message may be displayed in the Driver Information Module (DIM) due to DTC ECM P125000, pinpointing the throttle. Analysis shows that this is caused by a too sensitive calibration of ECM software (SW).
PRODUCT MODIFICATION: New ECM SW was developed during structure week 2010w23 (see chassis ranges above).
SERVICE: Upgrade the ECM with latest ECM SW.
SINCE THIS IS ECM SW RELATED, DO NOT REPLACE ANY COMPONENTS DUE TO THIS DTC.
Type 124 P/N 30785201
Type 275 P/N 30677021
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number 36004-2 - Software control module downloading - See VSTG
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.
