Windshield Washer Reservoir: Service and Repair

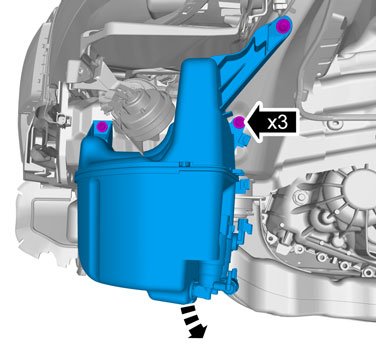

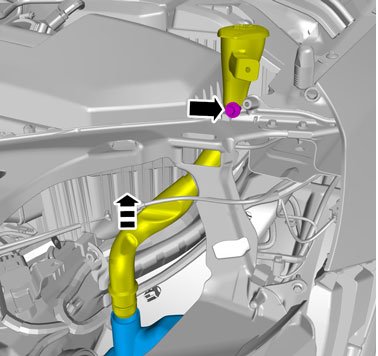

Washer fluid reservoir

Operation number: 36338-2

Removal





See information on component position washer reservoir Refer to: Location of components, washer reservoir Locations

Remove left side casing bumper front Refer to: Cover bumper front Service and Repair

Remove the headlamp Refer to: Headlamps Headlamps





Warning! Be prepared to collect escaping fluid.

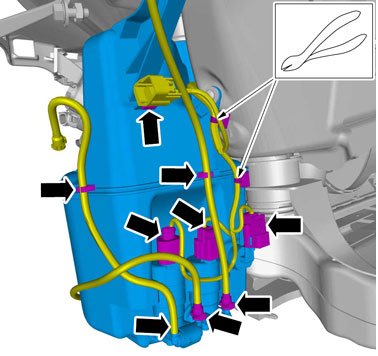

Caution! Note the position of each cable.









Installation

To install, reverse the removal procedure.
