Washer Fluid Level Switch: Locations

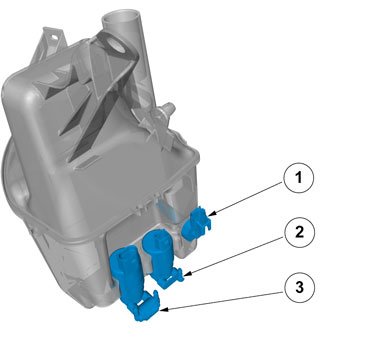

Location of components, washer reservoir

Location of components




1. Level sensor washer fluid
2. Washer fluid pump windscreen
3. Washer fluid pump headlamp
