Front Control Arm

Front control arm






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the plenum cover

Remove the wheel Refer to: Wheels Service and Repair

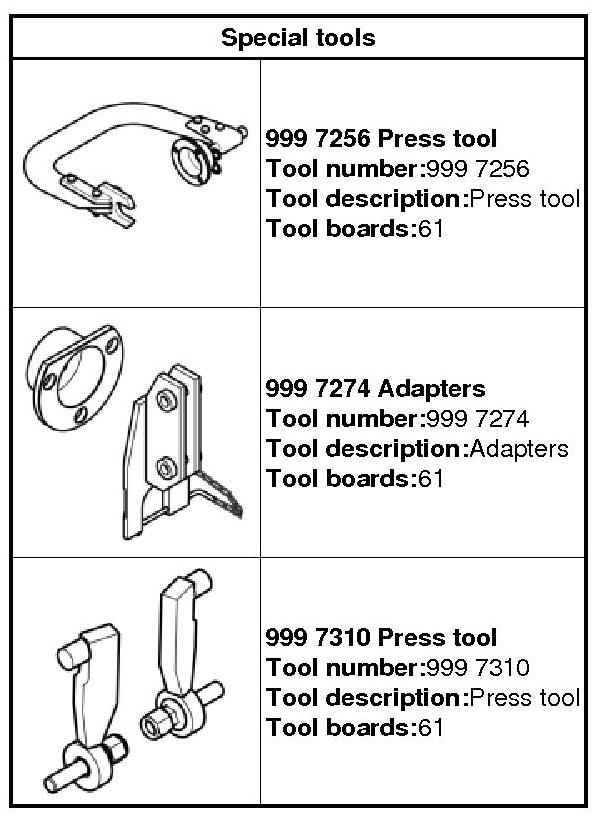

999 7256 Press tool 999 7256 Press Tool 999 7274 Adapters 999 7274 Adapters





Remove the following items:
1. Torque: Ball joint to wheel knuckle, 100 Nm
Torque: Ball joint to wheel knuckle, 110 Nm

2. Torque: Driveshaft to wheel hub (front) Stage 1: 35 Nm Stage 2: 90 degree




Torque: Mount front brake caliper, 200 Nm




999 7310 Press tool 999 7310 Press Tool





Remove the following items:
1. Torque: Lower arm front to subframe (front mounting) Stage 1: 140 Nm Stage 2: 45 degree

2. Torque: Lower arm front to subframe (rear mounting), 175 Nm

3. Torque: Lower arm front to subframe (rear mounting), 175 Nm

Installation

To install, reverse the removal procedure.
