Collision Sensor, B-Pillar

Collision sensor, B-pillar

Operation number: 88452-2

Removal

Note! Removal steps in this procedure may contain installation details.





Battery, disconnection Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting

Remove the B-pillar trim panel Refer to: B-pillar trim panel B-Pillar Trim Panel

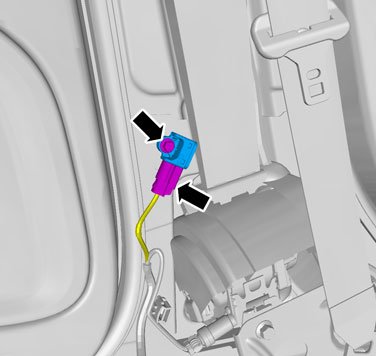

Torque: Impact sensor to body, 6 Nm

Installation

To install, reverse the removal procedure.
