Ignition Switch: Service and Repair

Key Slot SCU

Operation number: 33437-2

Removal

Remove the combined instrument panel Refer to: Combined instrument panel Combined Instrument Panel

Remove start button SCU Refer to: Start Button SCU Service and Repair

Remove aerial unit SCU Refer to: Antenna Unit SCU Service and Repair

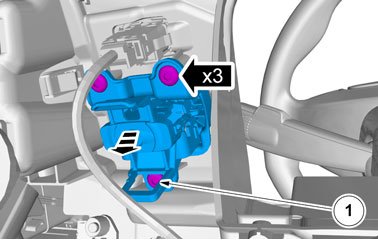

Caution! Make sure that a new bolt is installed.

Installation

To install, reverse the removal procedure.
