Parking Assistance, Rear

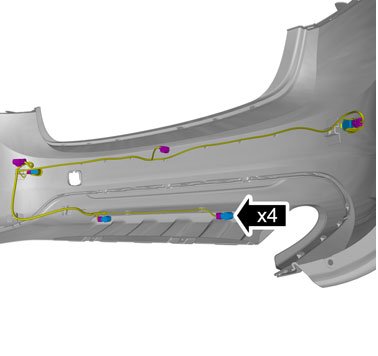

Distance sensors parking assistance rear

Operation number: 36700-2, 36701-3

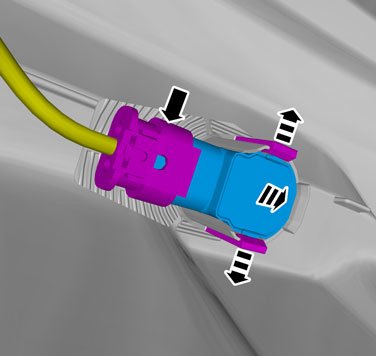

Removal





Remove casing bumper rear Refer to: Cover bumper rear Service and Repair









Installation

Follow instructions for paint Refer to: Paint Paint

To install, reverse the removal procedure.
