Infotainment Sys. - Resetting U.S. Values After Upgrade
TIE - Technical JournalTitle Unit value settings must be changed after ICM reload/Upgrade
Ref No US23608.1.1 en-US
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 3958 Func Desc software
Status Released
Status date 2010-09-20
Issue date 2010-09-17
Reference
ATTACHMENT

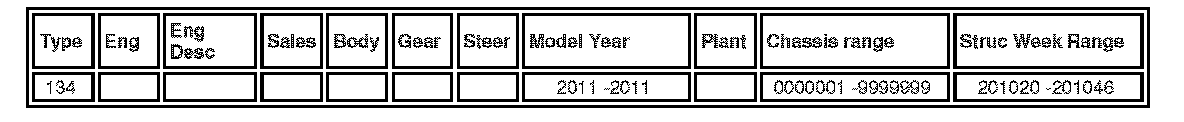

VEHICLE TYPE
CSC
DTC
Text

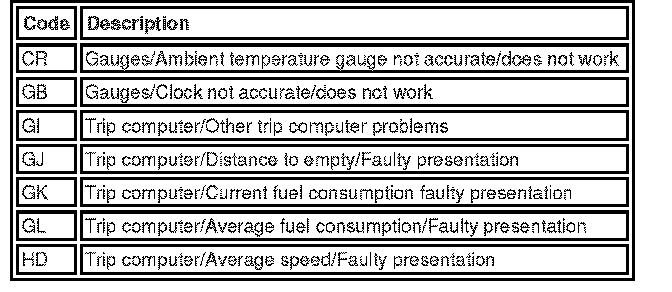

CSC = Customer Symptom Code
If using a printed copy of this Document always check for the latest online version.
DESCRIPTION:
After an ICM (Infotainment Control Module) reload or upgrade is performed the default settings for the following values will be presented in Metric values as below:
Clock = 24 hour format
Trip Computer Fuel consumption = Liters/100 Kilometers
Ambient temperature = degrees Celsius
PRODUCT MODIFICATION:
A new SW will be released after structure week 201046 with different default settings for the US market. The new SW will be back compatible to structure week 201020.
SERVICE:
After an ICM upgrade or reload or any MOST upgrade/reload that includes ICM SW it will be necessary to change the settings to US values.
The settings can be found in the Volvo SENSUS menu: My Car/Settings/System options
Change the settings as described above.
