Computers/Controls - Door Mirrors Don't Auto Unfold

Title: Automatic unfolding of outer mirrors does not work at passive unlock

Ref No: US24513.2.0 en-GB

Issuer: -

Partner: 3 US 7510 Volvo Cars North America

Func Group: 3640

Func Desc: electrical item

Status: Released

Status date: 09-12-2011

Issue Date: 09-08-2011

Reference:

Attachment

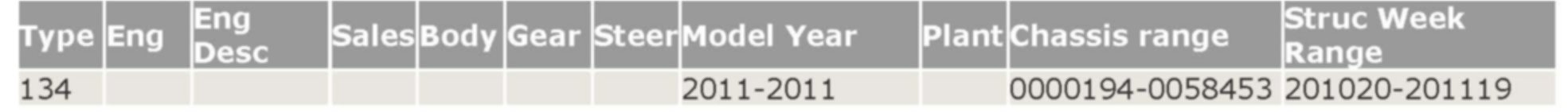

Vehicle Type

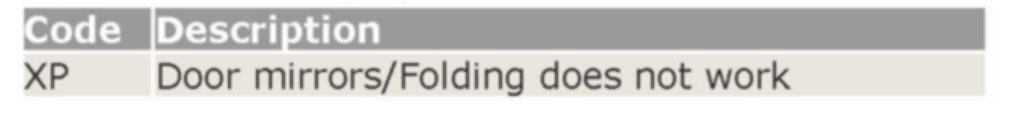

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text

CSC = Customer Symptom Code
DDM = Driver's door module
PDM = Passenger door module

Note:
If using a printed copy of this document, always check for the latest online version

DESCRIPTION:

The outer mirror does not automatically unfold on vehicles with keyless lock and with the settings for "Doors at same side" and "Front Doors", when opening the driver door.

PRODUCT MODIFICATION:

An improved DDM/PDM SW has been introduced into production and for service from structure week 201120.

SERVICE:

In case of customer complaints for above symptom perform an DDM/PDM SW upgrade.

VOLVO STANDARD TIME GUIDE OPERATION NUMBER:
36004-2: Software control module downloading. See VSTG
