Delivery And Return Line, Power Steering

Delivery and return line, Power steering

Operation number: 64515-2






Removal

Note! Removal steps in this procedure may contain installation details.

Drain reservoir fluid power steering Refer to: Reservoir fluid power steering, B6304T4, TF-80SC AWD Service and Repair

Remove right front wheel Refer to: Wheels Service and Repair

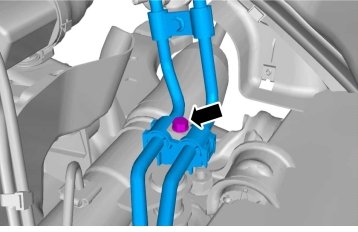

Warning! Be prepared to collect escaping fluid.

Caution! Make sure that all openings are sealed. Use new blanking caps.

Caution! Take extra care not to damage the clips.

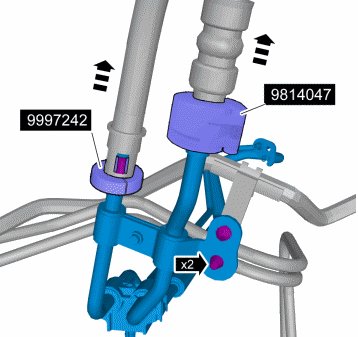

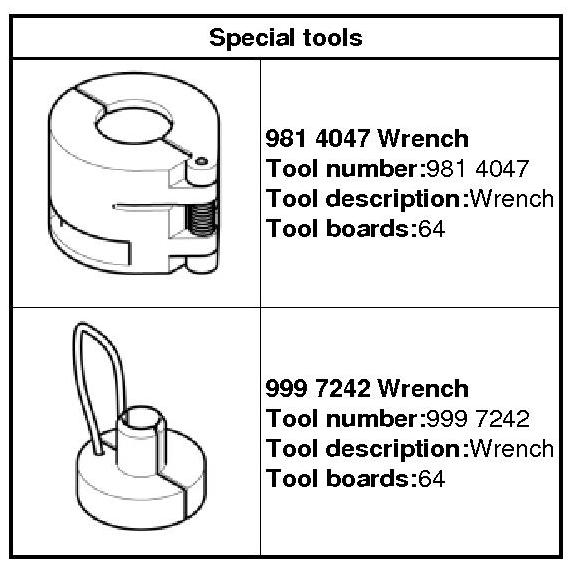

981 4047 Wrench 981 4047 Wrench 999 7242 Wrench 999 7242 Wrench









Warning! Be prepared to collect escaping fluid.

Caution! Make sure that all openings are sealed. Use new blanking caps.

Torque: Pressure line to steering gear, 20 Nm

Installation

To install, reverse the removal procedure.

Perform power steering system, bleeding air Refer to: Power steering system, bleeding Service and Repair
