Blower Motor: Service and Repair

Blower motor passenger compartment

Operation number: 87306-2






Removal

Note! Removal steps in this procedure may contain installation details.

























Caution! Take extra care when handling the component.

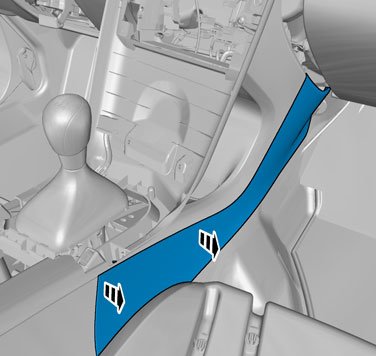

Detach and fold back the floor covering.

Remove glove compartment Refer to: Glove compartment Glove Compartment

Remove control module relay box passenger compartment Refer to: Control module relay box passenger compartment Service and Repair








Torque: M8, 24 Nm

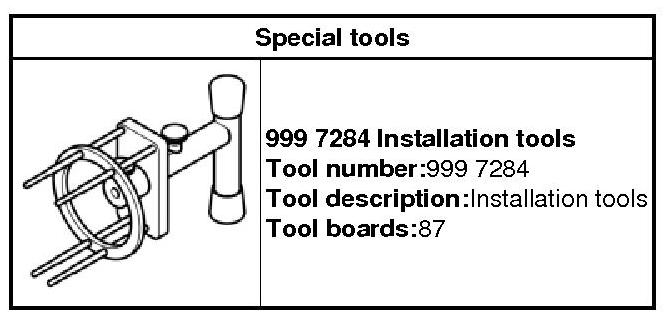

999 7284 Wrench 999 7284 Wrench





Caution! Take extra care when handling the component.





Caution! Take extra care when handling the component.





Note! This step requires the aid of another technician.





Caution! Take extra care when handling the component.





















Note! Make sure that the electrical connector is secured in the clip when disconnected.

Installation





Caution! Make sure that the blower motor and fan assembly is placed on the bench with the fan pointing upwards.





Caution! Take extra care when handling the component.





Caution! Take extra care when handling the component.





Caution! Take extra care when handling the component.

To install, reverse the removal procedure.

Perform climate unit, checking Refer to: Climate control system, check Climate Control System, Check
