Engine Support Insulator Left

Engine support insulator left

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

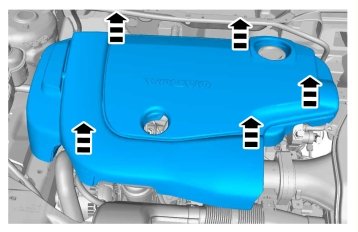

Remove the following items:
- the air cleaner (ACL) housing Refer to: Air cleaner housing, B6304T4 Service and Repair
- the battery. Refer to: Battery, B6304T4 Removal and Replacement.





Disconnect the connector for the sensor in the lower part.
Tightening torque, M6. Refer to: Tightening torque, B6304T4, TF-80SC AWD Tightening Torque.

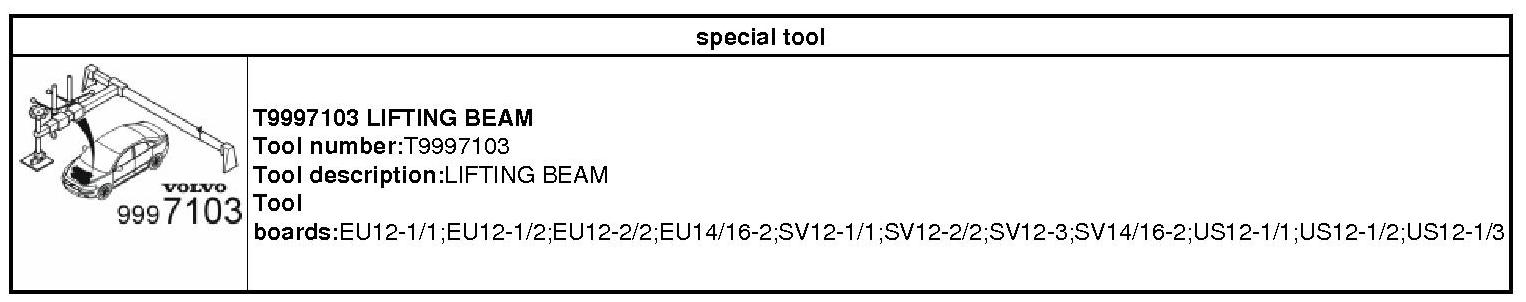

999 7103 Lifting beam 999 7103 Lifting Beam.

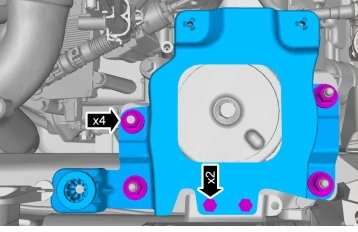

Tightening torque, engine support insulator, left side (4 nuts M10). Refer to: Tightening torque, B6304T4, TF-80SC AWD Tightening Torque.
Tightening torque, M6. Refer to: Tightening torque, B6304T4, TF-80SC AWD Tightening Torque.

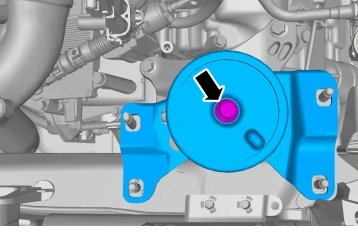

Tightening torque, M12. Refer to: Tightening torque, B6304T4, TF-80SC AWD Tightening Torque.

Installation

To install, reverse the removal procedure
