Front Fender: Service and Repair

825: Front Mudguard

Operation number:
80201-0

Fender







Removal

NOTE: Removal steps in this procedure may contain installation details.

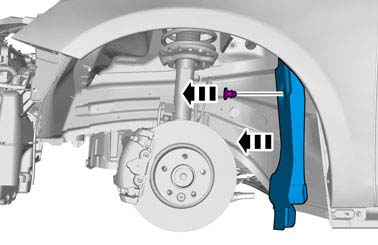

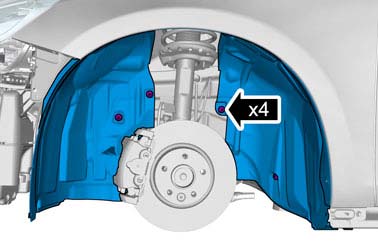

Remove the following items:
- Cover bumper front

Refer to: Cover bumper front

- Sill panel

Refer to: Sill panel

- A-Pillar Moulding

Refer to: A-Pillar Moulding

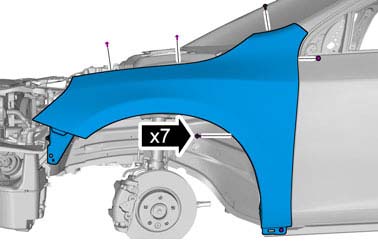

Torque: M6, 10 Nm

Follow the instructions regarding corrosion protection

Refer to: Rustproofing

Installation

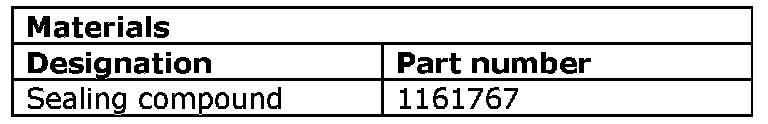

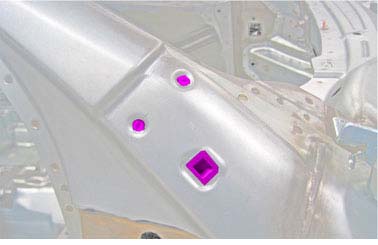

Use: Sealing compound, 1161767

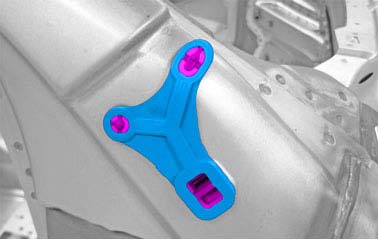

Use: Sealing compound, 1161767

To install, reverse the removal procedure.
