Hood Latch: Service and Repair

821: Hood, Cover With Assembly Parts

Door Latch Hood

Removal

NOTE: Removal steps in this procedure may contain installation details.

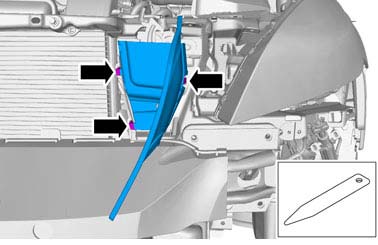

Remove casing bumper front

Refer to: Cover bumper front

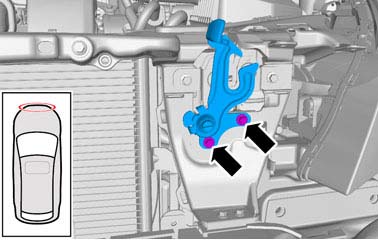

Torque: M6, 10 Nm







NOTE: Make sure that the bolts are not tightened until the hood is closed.

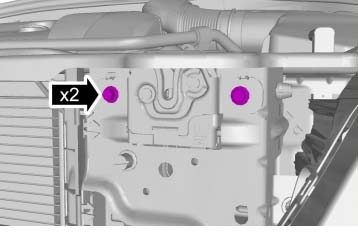

Torque: M6, 10 Nm







Installation
To install, reverse the removal procedure.
