Rear Bumper Cover / Fascia: Service and Repair

Cover bumper rear

Operation number: 86171-2, 86101-2, 89137-2

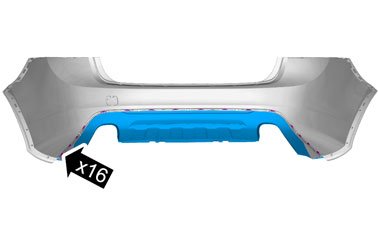

Removal

Note! Removal steps in this procedure may contain installation details.

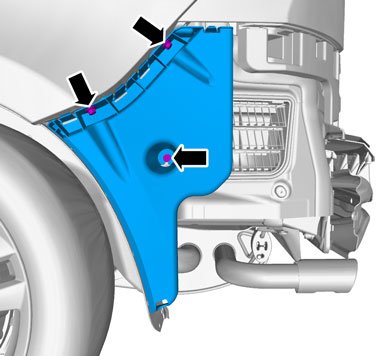

On both sides.

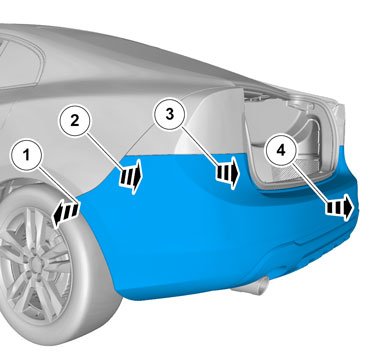

Note! This step requires the aid of another technician.

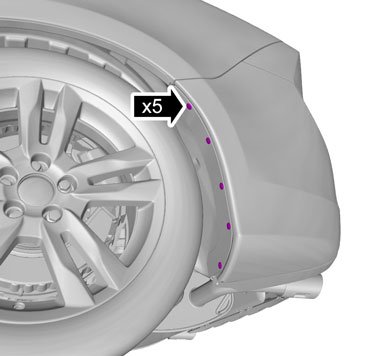

On both sides.

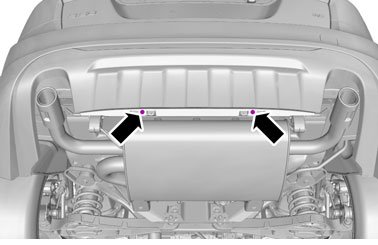

Torque: M5, 5 Nm

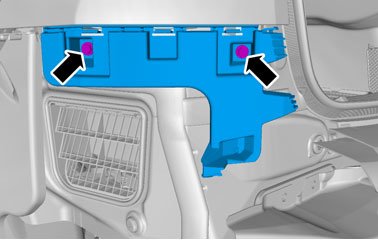

On both sides.
Torque: M5, 5 Nm

Installation

To install, reverse the removal procedure.
