Front Bumper Reinforcement: Service and Repair

This article uses a picture philosophy in the instructions for mechanical work methods. The instructions focus on the pictures and include text only if it is impossible to show the work method in the pictures. For further information, refer to: Images in Service Information

811: Floor, Frame Section, Wheel Housing, Bulkhead

Operation number:
86110-3

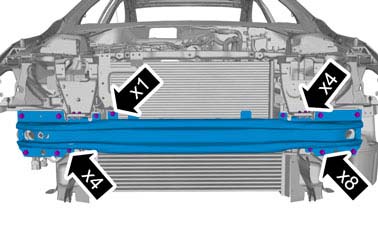

Crossmember Bumper Front

Removal and Installation

Remove casing bumper front

Refer to: Cover bumper front







1. Torque: M6, 10 Nm
2. Torque: M10, 50 Nm
