TV Receiver, Replacing

Receiver TV

Operation number: 39330-2

Removal

Note! Removal steps in this procedure may contain installation details.

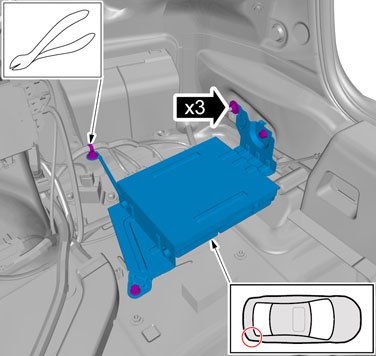

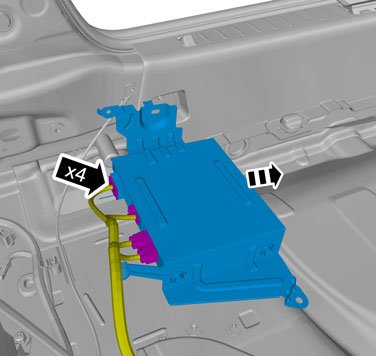

Remove right side panel cargo compartment Refer to: Side panel loadspace Side Panel Loadspace

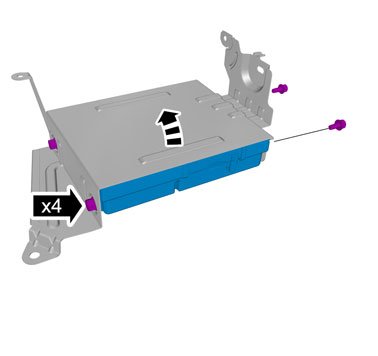

Torque: M6, 10 Nm








Torque: M5, 5 Nm

Installation

To install, reverse the removal procedure.

Order and download appropriate software. Programming and Relearning
