Checking AUX-Panel

Checking AUX-panel

Reading off diagnostic trouble codes (DTCs)

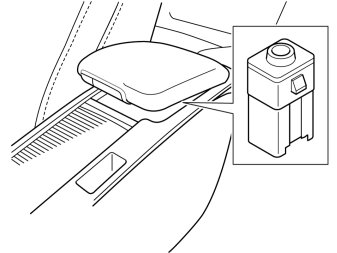

- Remove the equipment that is connected to the AUX-panel.
- Click the VCT2000 symbol to begin.
- Read out the diagnostic trouble codes in the vehicle
- Check if any of the DTCs, IAM-B1D7811, IAM-B1D7812 or IAM-B1D7813, are stored.
- Fault-trace according to diagnostic trouble code (DTC) instructions.

Other information
- Diagnostic trouble code (DTC) information IAM-B1D7811 Diagnostic Trouble Code (DTC) Information
- Diagnostic trouble code (DTC) information IAM-B1D7812 Diagnostic Trouble Code (DTC) Information
- Diagnostic trouble code (DTC) information IAM-B1D7813 Diagnostic Trouble Code (DTC) Information









Has the fault been remedied?

Yes - FAULT FOUND

No - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit Fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Reading off diagnostic trouble codes (DTCs)

-------------------------------------------------
