Component Tests and General Diagnostics

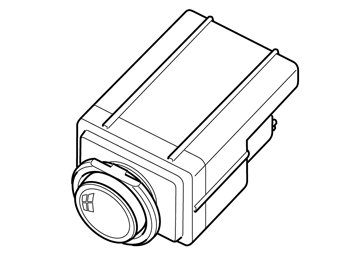

Checking front parking assistance camera

Fault-tracing
If the customer has problems with the front parking assistance camera, a check procedure can be run to check the causes of the fault.
Rectify in the following order:
- Click on the VCT2000 symbol.
- Read out the diagnostic trouble codes in the vehicle
- Check to see if DTCs ICM-B101087, ICM-B101088 or ICM-B10108F have been stored.





Have any of the DTCs been stored?

Yes - Fault-tracing

No - Fault-tracing

-------------------------------------------------

Fault-tracing
Fault trace these diagnostic trouble codes.

Other information
Diagnostic trouble code (DTC) information ICM-B101087 Diagnostic Trouble Code (DTC) Information
Diagnostic trouble code (DTC) information ICM-B101088 Diagnostic Trouble Code (DTC) Information
Diagnostic trouble code (DTC) information ICM-B10108F Diagnostic Trouble Code (DTC) Information

Continue - FAULT FOUND

-------------------------------------------------

Fault-tracing
Press the button for the front parking assistance camera on the Climate control module (CCM).





Is the text Front Camera displayed in the top left corner of the screen?

Yes - Fault-tracing

No - Fault-tracing

-------------------------------------------------

Fault-tracing
Clean the camera lens. Use a soft rag or moist sponge, so that it is not scratched.
If this does not help, replace the front parking assistance camera,





Continue - FAULT FOUND

-------------------------------------------------

Fault-tracing
The fault seems to be in the button for the front parking assistance camera on the Climate control module (CCM).
Fault trace according to DTC instructions for CCM-U200223.

Other information
Diagnostic trouble code (DTC) information CCM-U200223 Diagnostic Trouble Code (DTC) Information





Continue - FAULT FOUND

-------------------------------------------------
