Camera Collision Warning

Camera collision warning

Operation number: 37024-2






Removal

Note! Removal steps in this procedure may contain installation details.





Remove rear-view mirror inside Refer to: Inner rear view mirror Inner Rear View Mirror

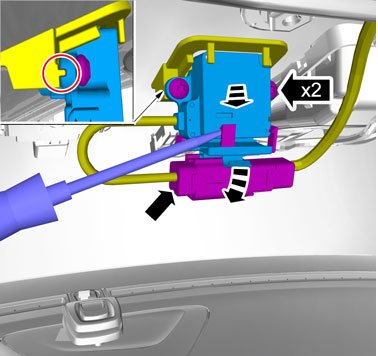

Torque: Camera collision warning for console, 3 Nm





Use: Window cleaner,

Installation

To install, reverse the removal procedure.

Calibrate camera according to: DIAGNOSTICS/CAR COMMUNICATION/Advanced/FSM/Calibrating radar and camera
