Quarter Window Glass: Service and Repair

Rear side window

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work





Close the window.

Removal

Removing the rear door window





Remove:
- the side panel in the rear seat as described in Side panel rear seat Side Panel Rear Seat
- the inner and outer weatherstrip

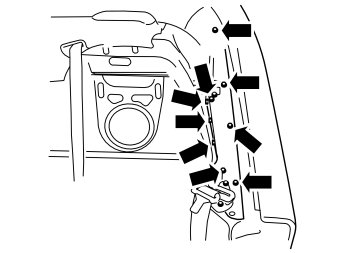

- the 7 screws and 2 nuts of the plate bracket
- the plate bracket





Note! Use butyl or the like as it is easy to drop the nuts and washers.

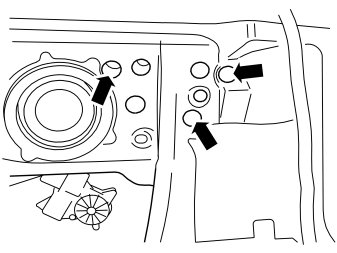

Remove the 3 nuts and 3 washers.
Angle the bottom of the window toward the vehicle interior and remove it.

Installation

Installing the rear door window

Note! For tightening torques, see.

Note! The regulator mechanism should be completely raised.

Note! Two people are required for this task.

Guide in the window.

Install:
- the 3 washers
- the 3 M6 nuts. Adjust as described in Side window rear, adjusting Side Window Rear, Adjusting
- the 6 M6 and 1 M8 screws and the 2 nuts of the plate bracket
- the plate bracket
- the inner and outer weatherstrip
- the side panel in the rear seat as described in Side panel rear seat Side Panel Rear Seat.
