Interior/Electrical - Seat Wiring Harness (CMP-244)
Title: Seat Wiring Harness - Service Action 244Ref No: US24943.1.1 en-US
Issuer: -
Partner: 3 US 7510 Volvo Cars North America
Func Group 8529 Func Desc miscellaneous
Status: Released
Status Date: 2011-06-30
Issue Date: 2011-06-21
Reference: VIDA
Attachment

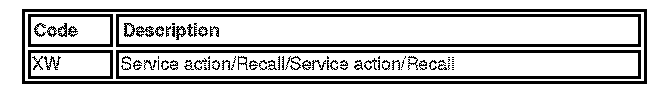

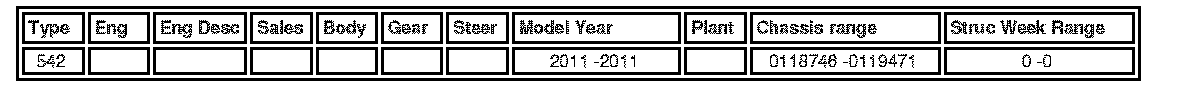

Vehicle Type
CSC
DTC
Text
CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION:
Volvo has identified that the wiring harness for the front seats may have been incorrectly installed on the outside of the seat recliner cover. Vehicles with the seat wiring incorrectly routed may have inoperative power seats and seat heaters.
SERVICE:

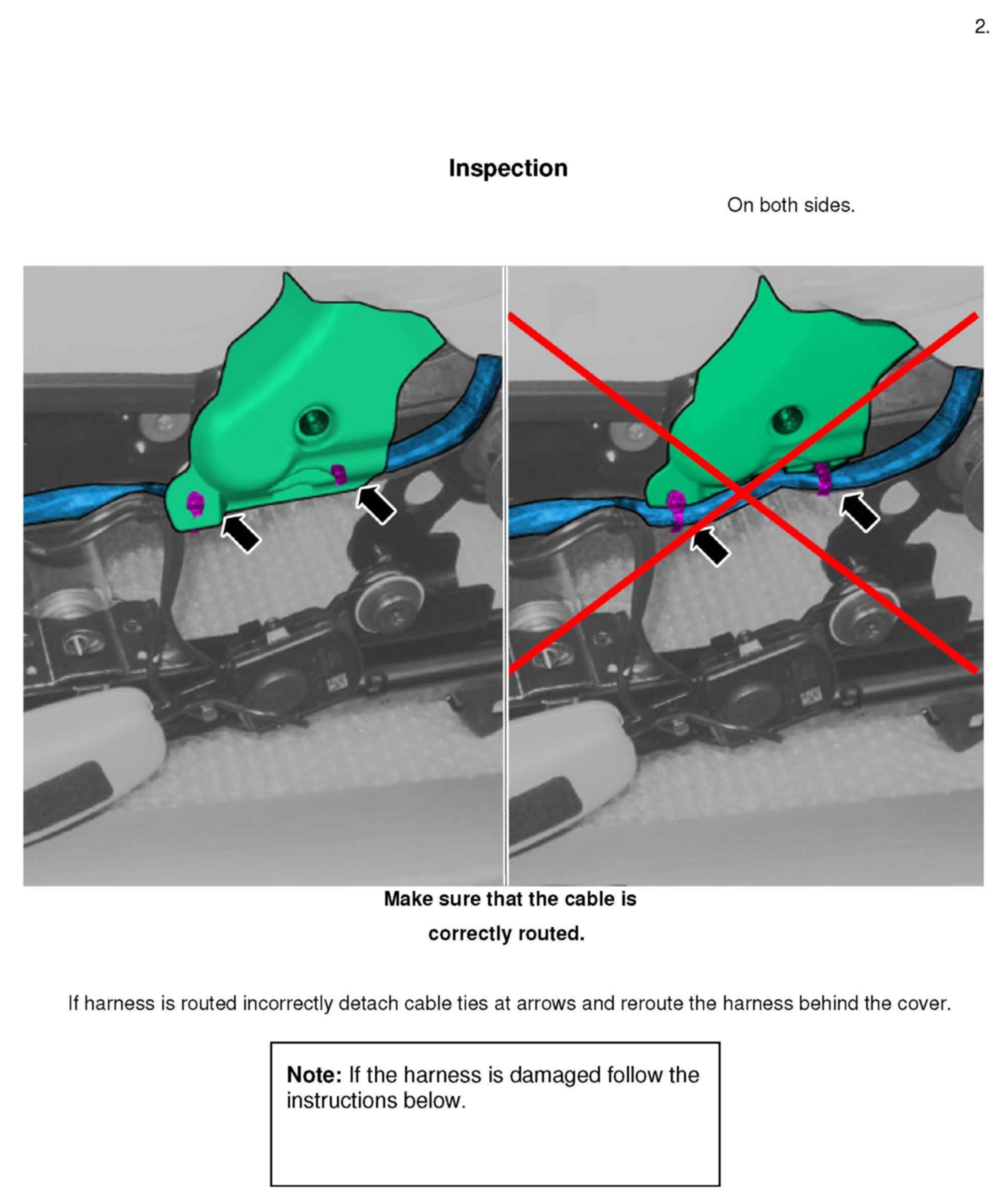

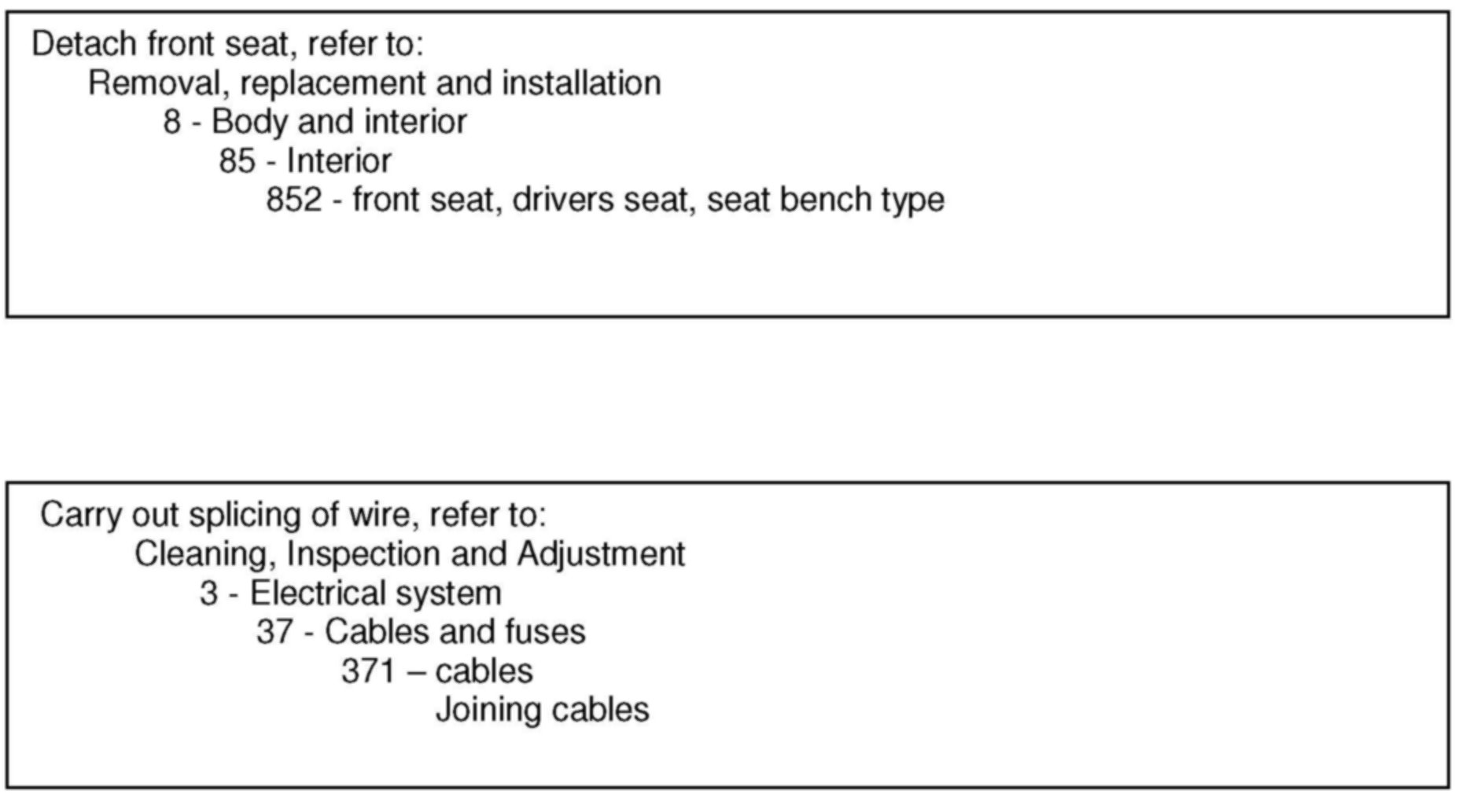

The corrective action is to check that the wiring harness is installed behind the recliner cover and if not installed correctly to re-route and repair the wiring if necessary per instructions in attachment.
ATTACHMENT

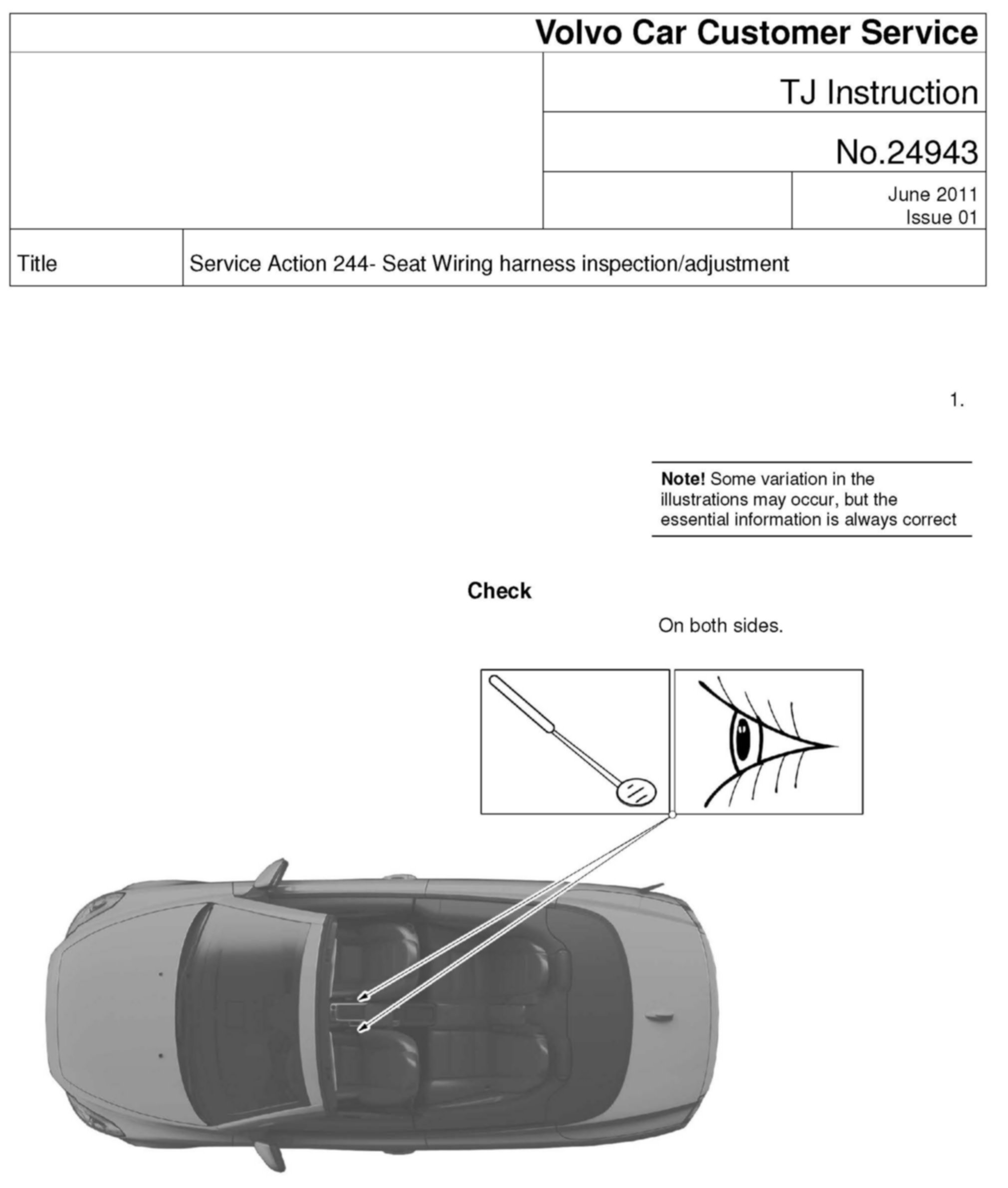

TJ Instructions
