Relay Box: Service and Repair

Control module relay box passenger compartment

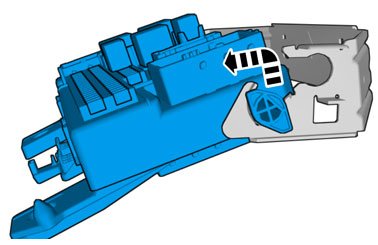

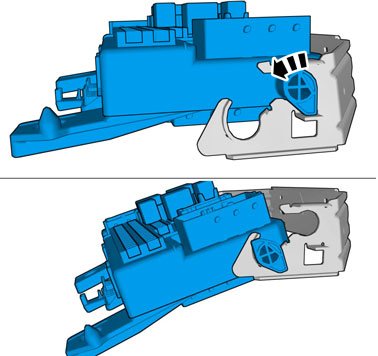

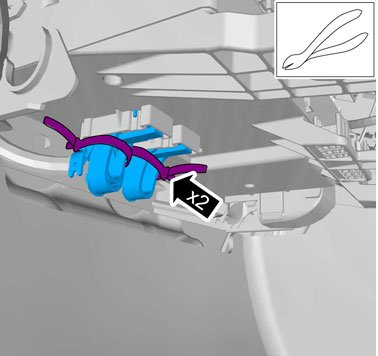

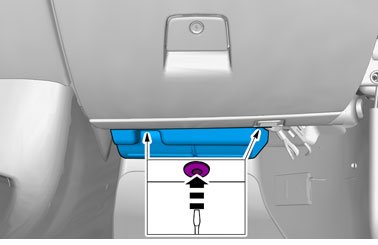

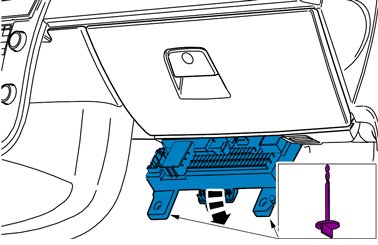

Removal

Perform battery disconnecting and connecting Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting

Caution! The instrument cluster and generic electronic module (GEM) must only be removed and new ones installed and loaded with software 1 at a time.

Note! This module contains customer parameters.

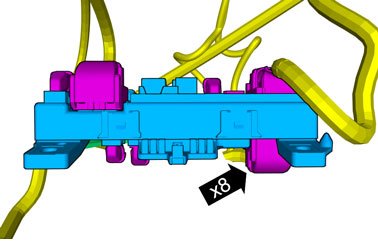

Note! Make sure that the component terminals are not bent or damaged.





Installation

To install, reverse the removal procedure.

Order and download appropriate software.

Set the clock.
