Alternator: Service and Repair

Generator

Operation number: 32102-2

Removal

Note! Removal steps in this procedure may contain installation details.





Remove air filter module Refer to: Air filter module, B5254T7 Service and Repair

Remove the throttle body Refer to: Throttle body, B5254T7 Removal and Replacement

Remove the auxiliaries belt Refer to: Tensioner accessory drive belt, B5254T7 Service and Repair









Remove the following items:

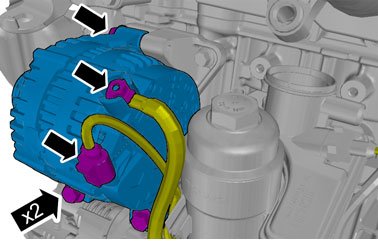

1. Torque: Generator B+ terminal, 15 Nm

2. Torque: M10, 50 Nm

Installation

To install, reverse the removal procedure.
