Campaign 249 - Navigation (MMM+) Software Upgrade

Title
SERVICE ACTION 249: NAVIGATION (MMM+) SOFTWARE UPGRADE

Ref No
US25432.1.1 en-US

Issuer -

Partner
3 US 7510 Volvo Cars North America

Func Group
3900

Func Desc
media, navigation and communication

Status
Released
2011-

Status Date
11-10
2011-

Issue Date
11-07

Reference
SMB 39 249





Attachment

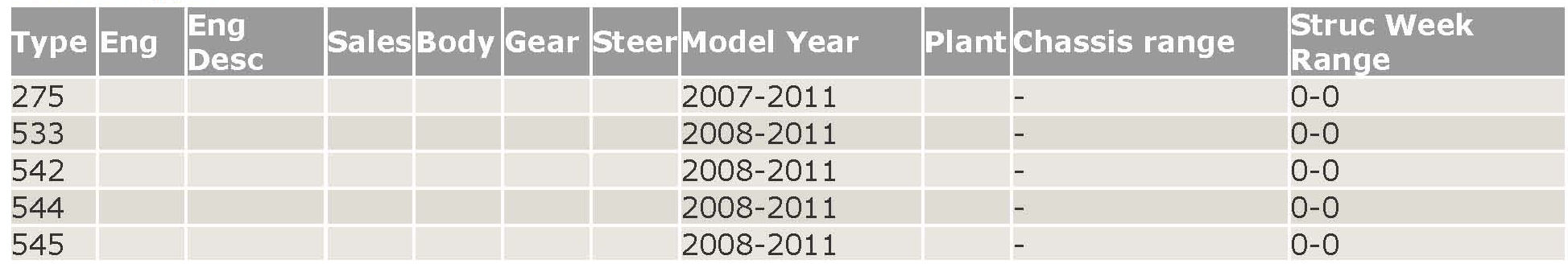

Vehicle Type

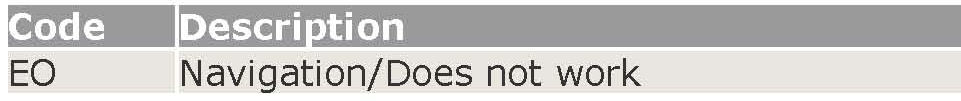

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text
CSC = Customer Symptom Code
MMM = Multi Media Module

If using a printed copy of this document, always check for the latest online version

DESCRIPTION:

Volvo Cars of North America, LLC. has decided to launch a service action on certain model year 2007 - 2011 XC90 and 2008 - 2011 S40, V50, C70 and C30 vehicles.

Volvo has identified that the Navigation system (MMM+) may enter into a permanent reset mode.

NOTE:
RETAILER MUST CONFIRM VEHICLE ELIGIBILITY PRIOR TO BEGINNING REPAIR FOR THIS SERVICE ACTION. Cars have been manually marked in QW9O with a chassis number list. There might be cars within the limitations above which are not affected by this action.
SERVICE:

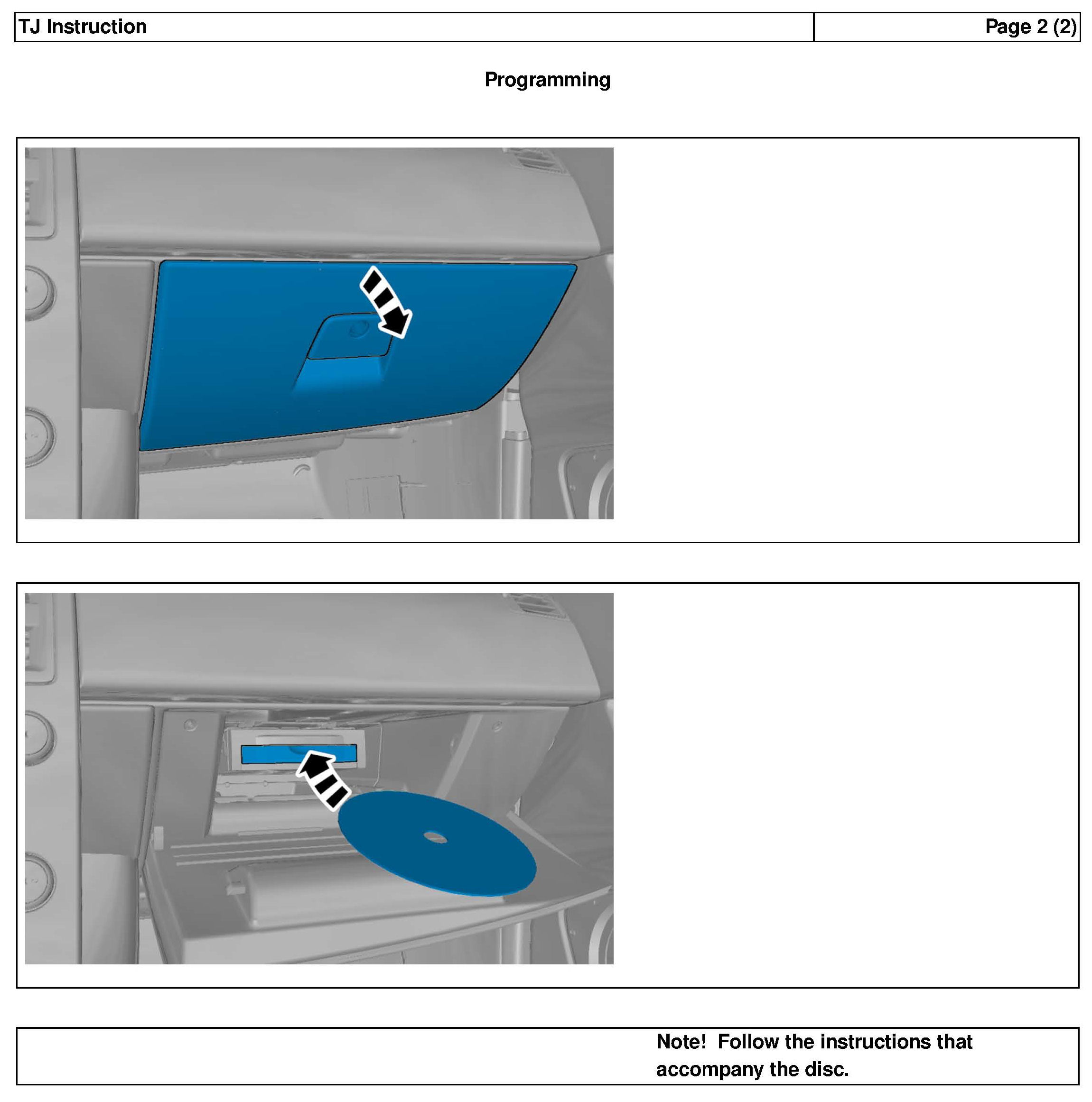

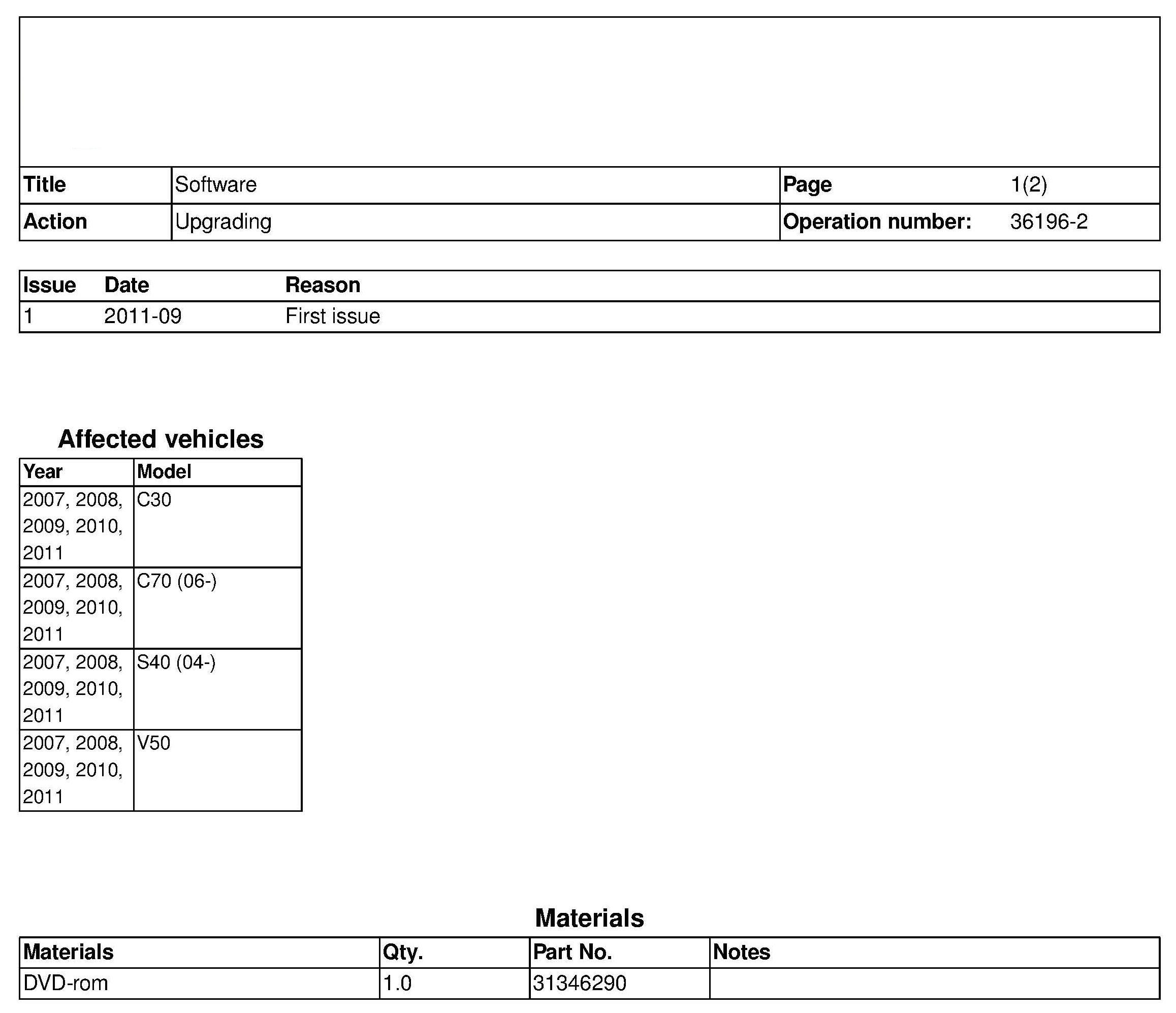

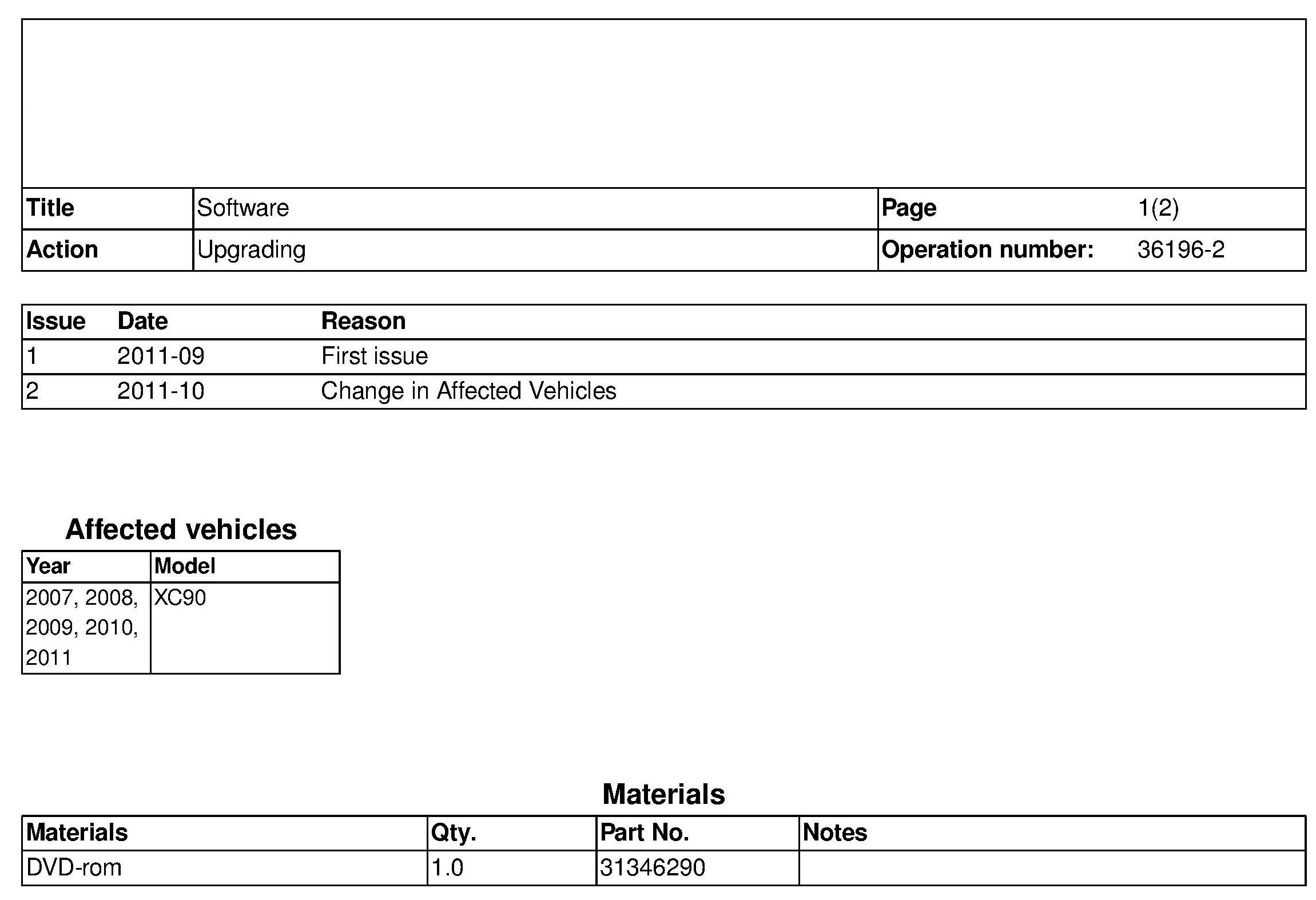

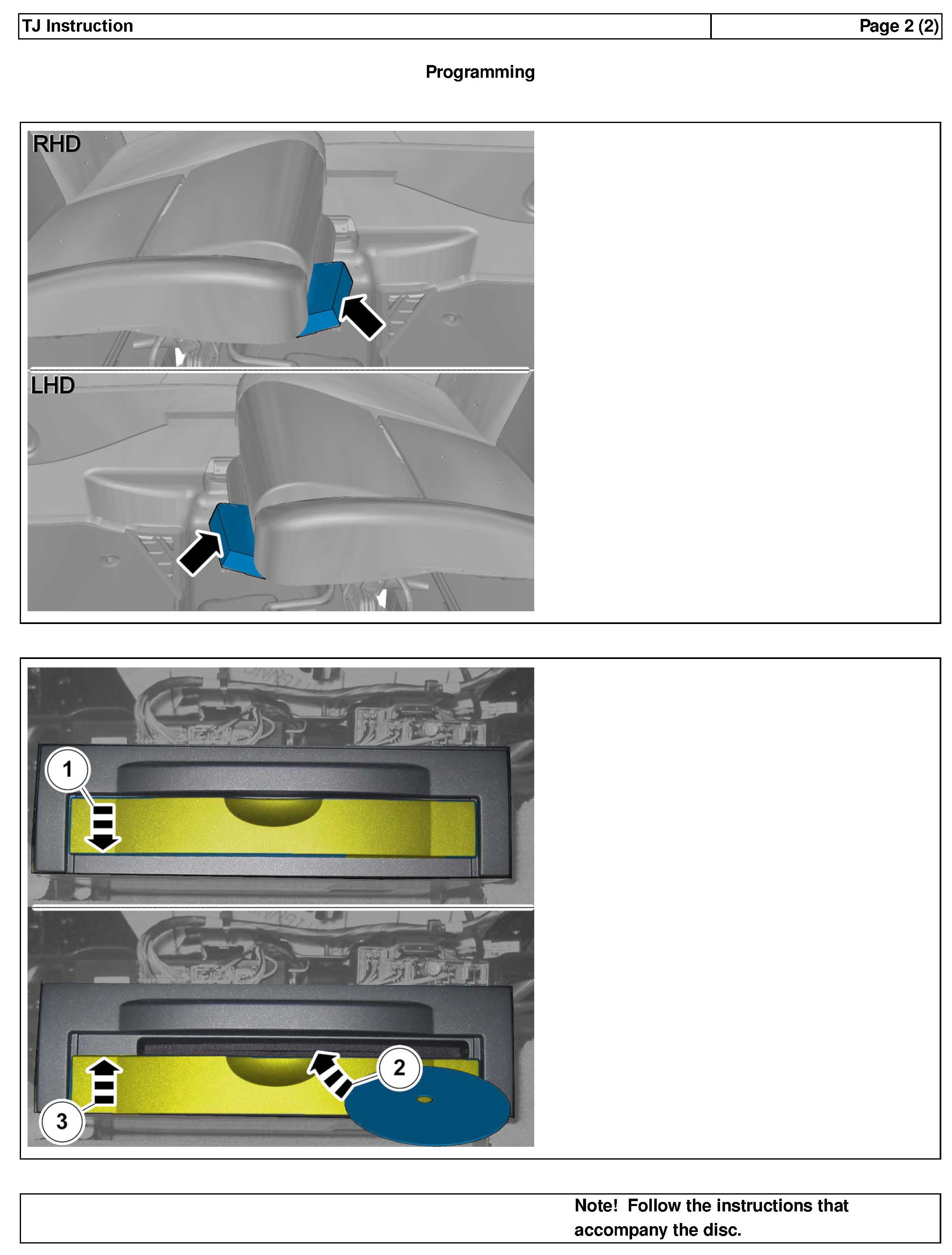

Download DVD-ROM part no.31346290 according to attached instructions: TJ instruction XC90 or TJ instruction P1X as applicable.

This DVD was allocated to retailers starting November 2, 2011. Please refer to Parts Operations Announcement dated 11/02/11 for details.

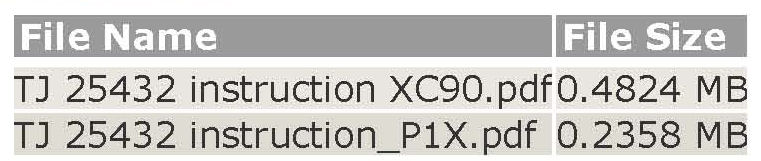

To view TJ attachments see illustrations above.
