Body - 'Trunk Divider Not Closed' When Opening Roof

Title DIM message "Truck divider is not closed"

Ref No US23317.1.0 en-GB

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 8380 Func Desc convertible top

Status Released

Status Date 2011-03-31

Issue Date 2010-08-06

Reference VIDA





Attachment

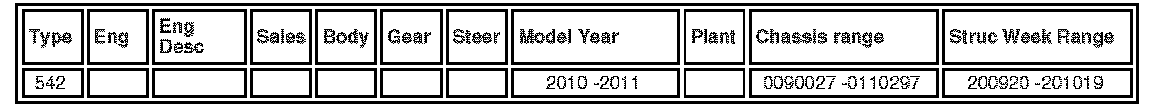

Vehicle Type





CSC

DTC

Text

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code

Note!
If using a printed copy of this Technical Journal, first check for the latest online version.

DESCRIPTION:

DIM message "Trunk divider is not closed" may occur when trying to open the roof.

Trunk divider out of adjustment.

PRODUCT MODIFICATION:

Production modification from 10w20 a 2mm washer is fitted on the left side trunk divider bracket to move the bracket in forward direction.

SERVICE:

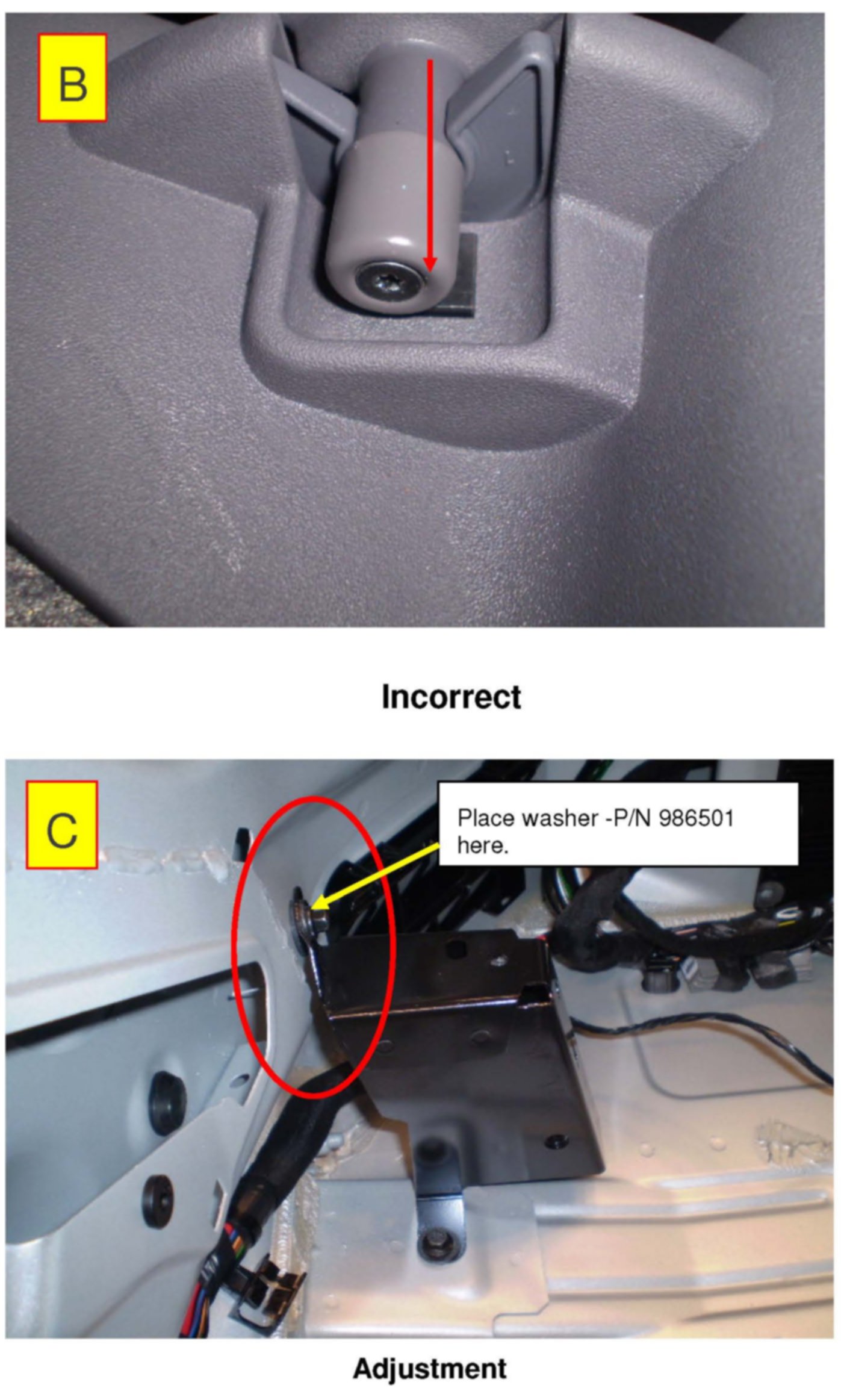

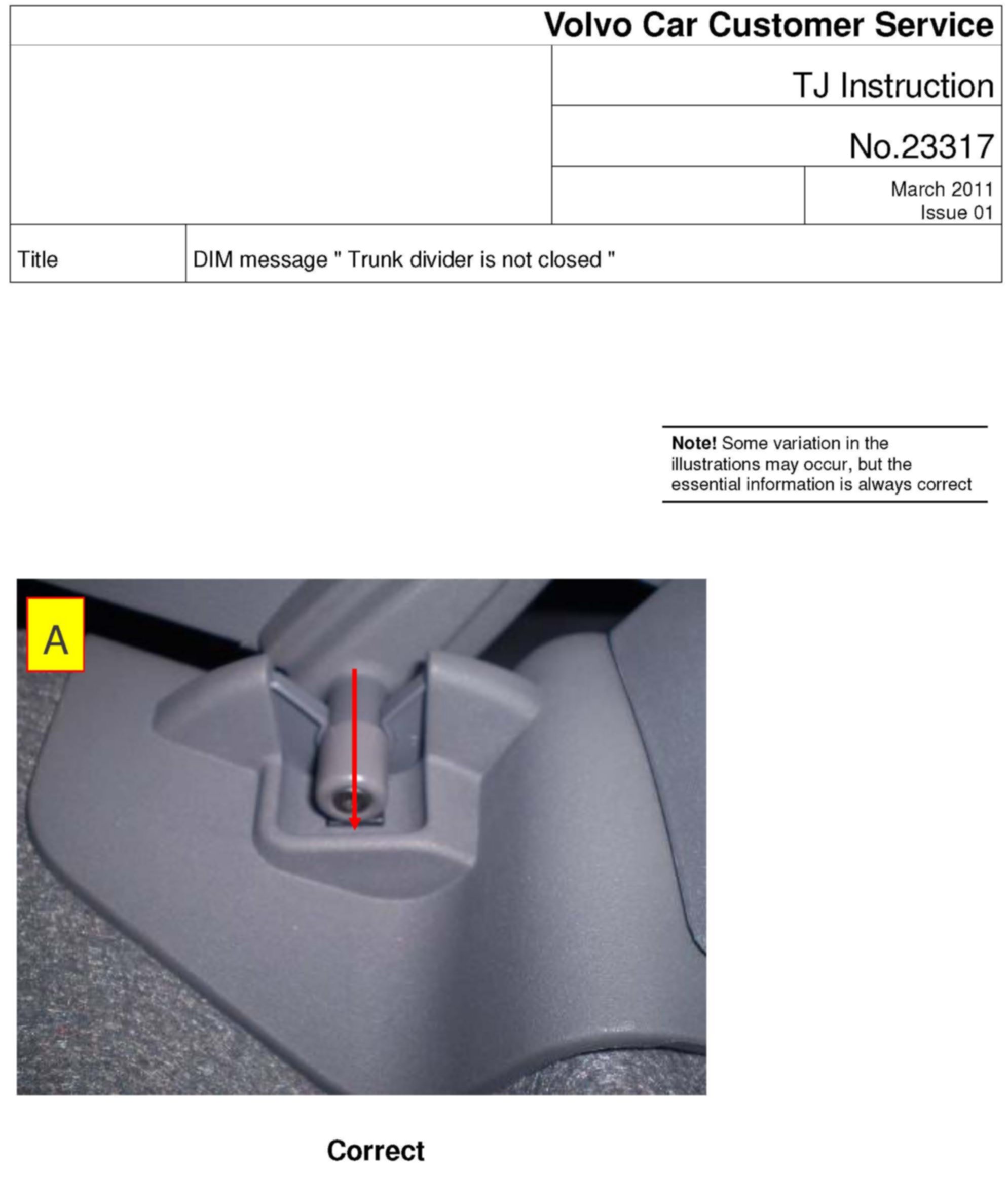

Loosen all 3 screws for the bracket add the 2mm washer P/N 986501 to adjust the sensor bracket in forward direction according to picture C in attachment then tighten all screws afterwards. Check the operation of the roof. Correct position of the trunk divider pin shall be according to picture A in attachment. Picture B shows wrong position.

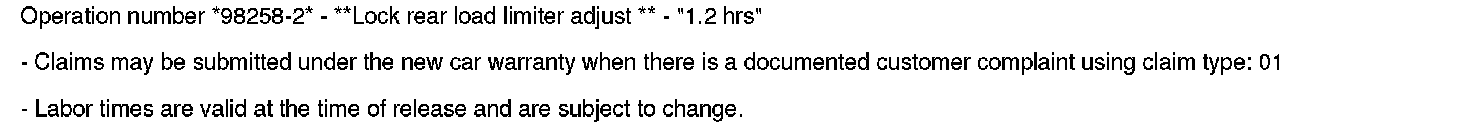

VOLVO STANDARD TIMES GUIDE (VSTG) INFO

ATTACHMENTS

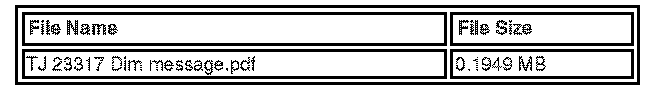

TJ Instructions
