Trunk / Liftgate: Testing and Inspection

Trunk lid, load opening check

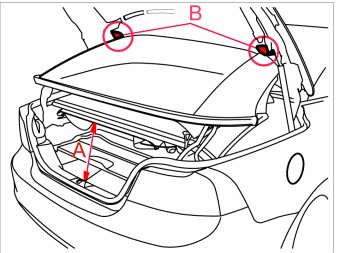

Operate the roof as illustrated.





Measurement (A) must be min 300 mm and max 308 mm.
The roof must not go up too hard at (B).
