Drive/Propeller Shaft: Service and Repair

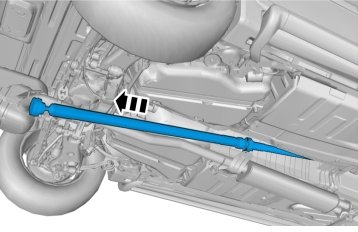

Propeller Shaft

Operation number: 45104-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.







Remove the catalytic converter. Refer to: Catalytic converter, B6324S5 Service and Repair.





Tightening torque:Propeller shaft (center bearing).






Note! Note the position of the component before removal.

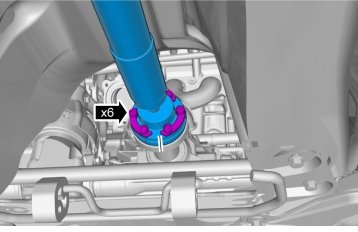

Tightening torque: Propeller shaft (CV joint, 6 screws).

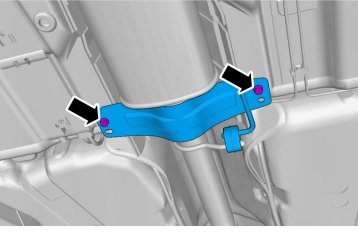

Tightening torque,M8.











Note! Note the position of the component before removal.

999 5743 Counterhold 999 5743 Counterhold.
Tightening torque: Propeller shaft (CV joint, 6 screws).






Installation

To install, reverse the removal procedure
