Rear Electronic Module (REM)

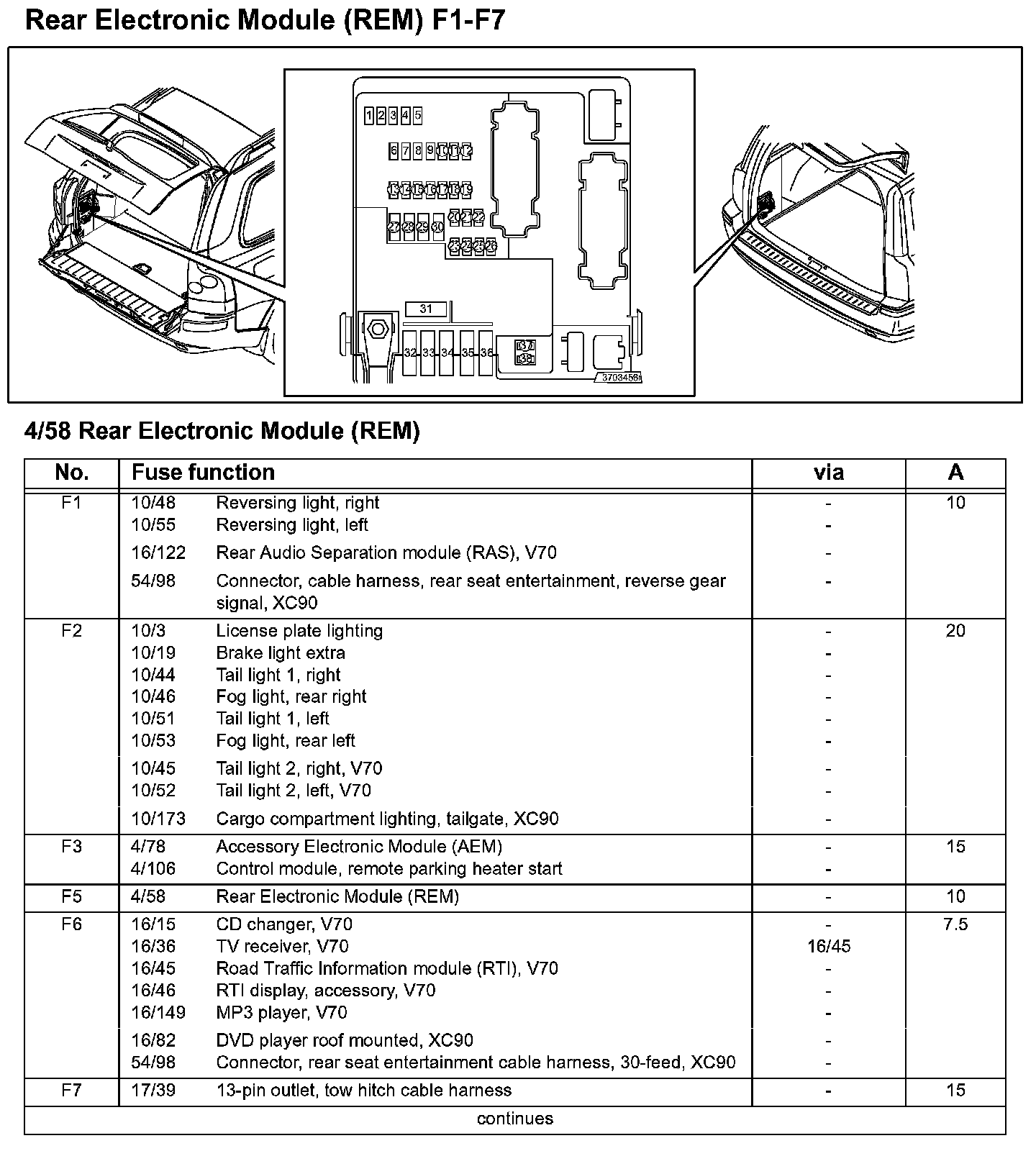

Rear Electronic Module (REM) F1-F7:

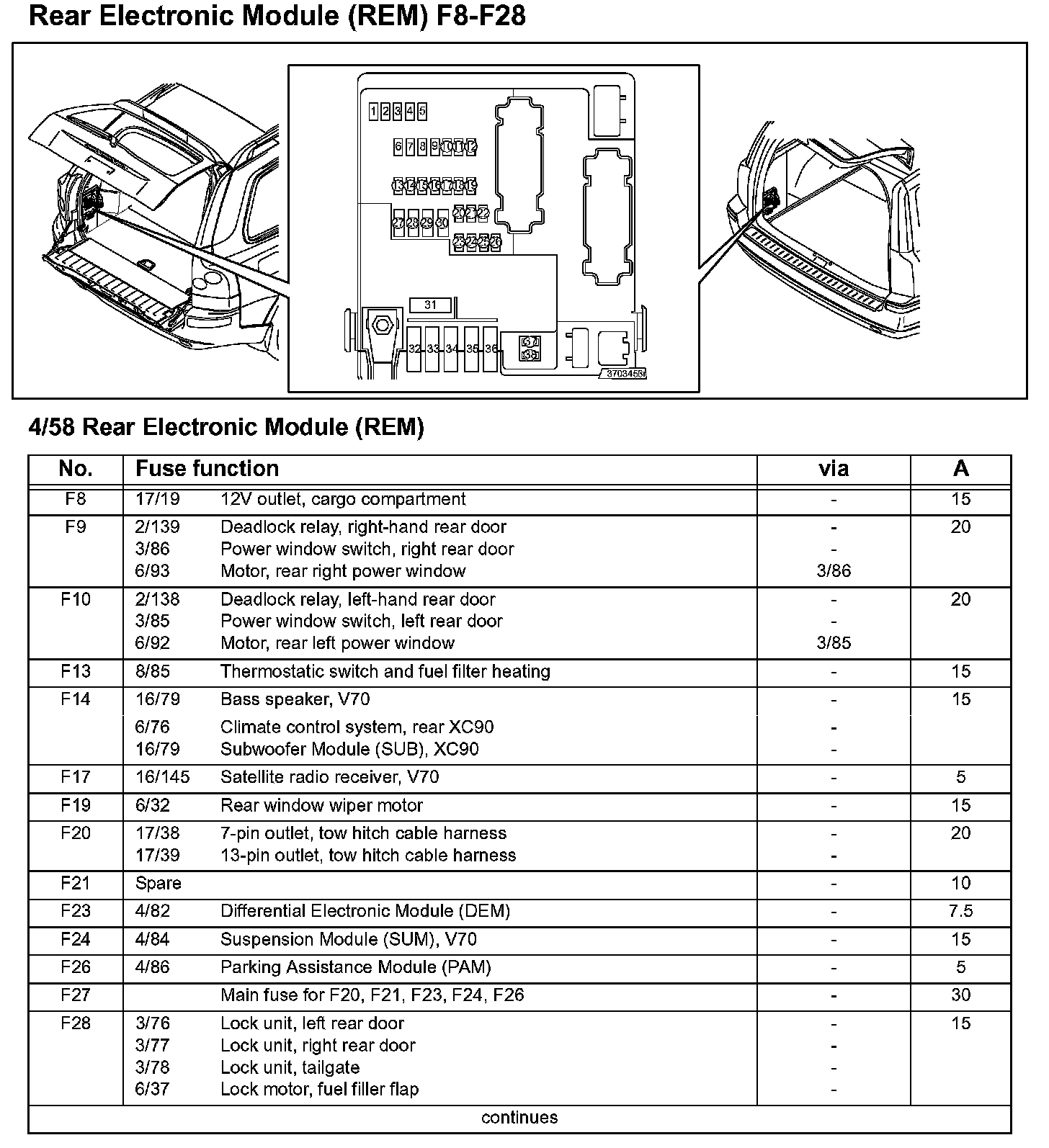

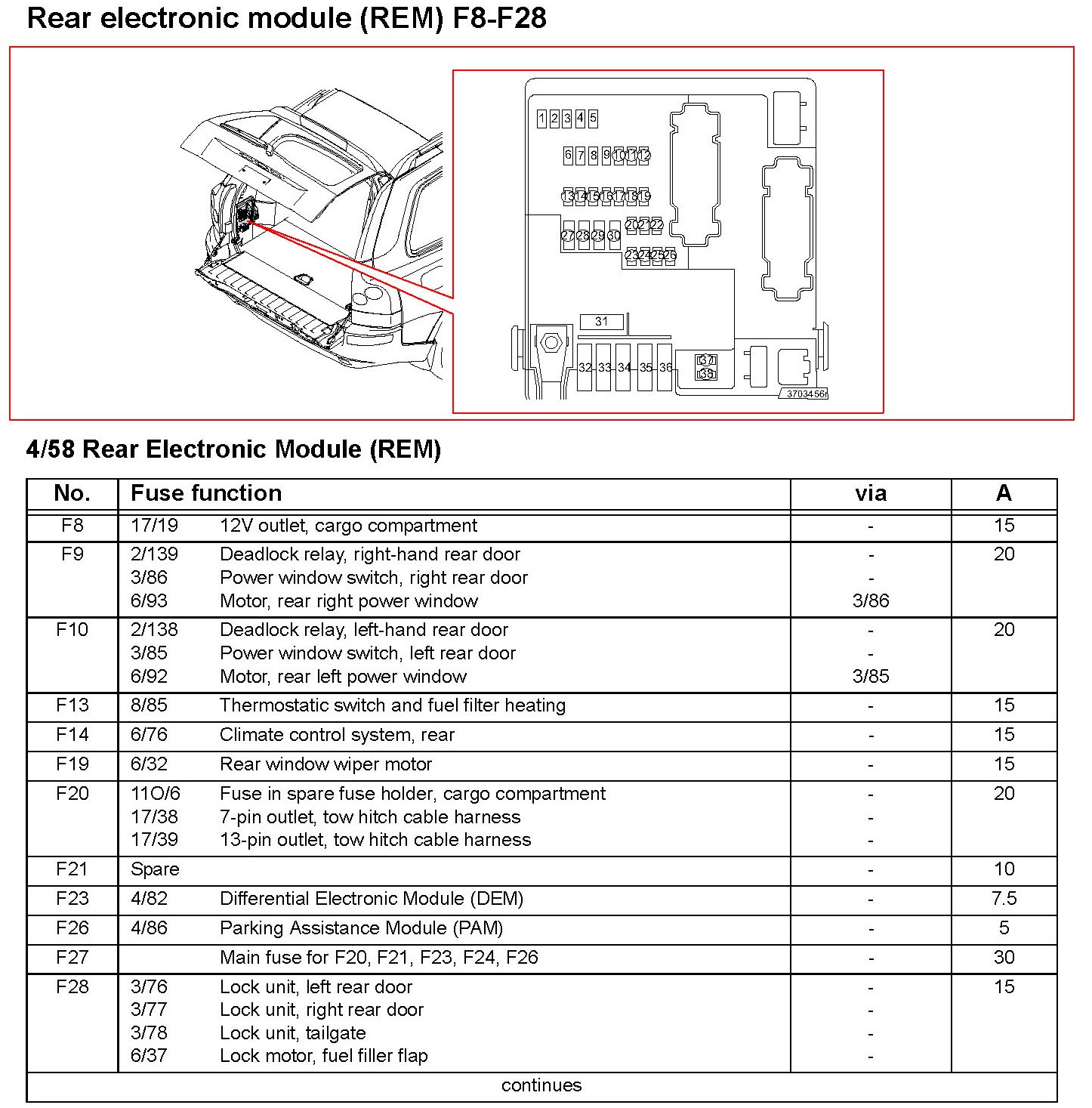

Rear Electronic Module (REM) F8-F28:

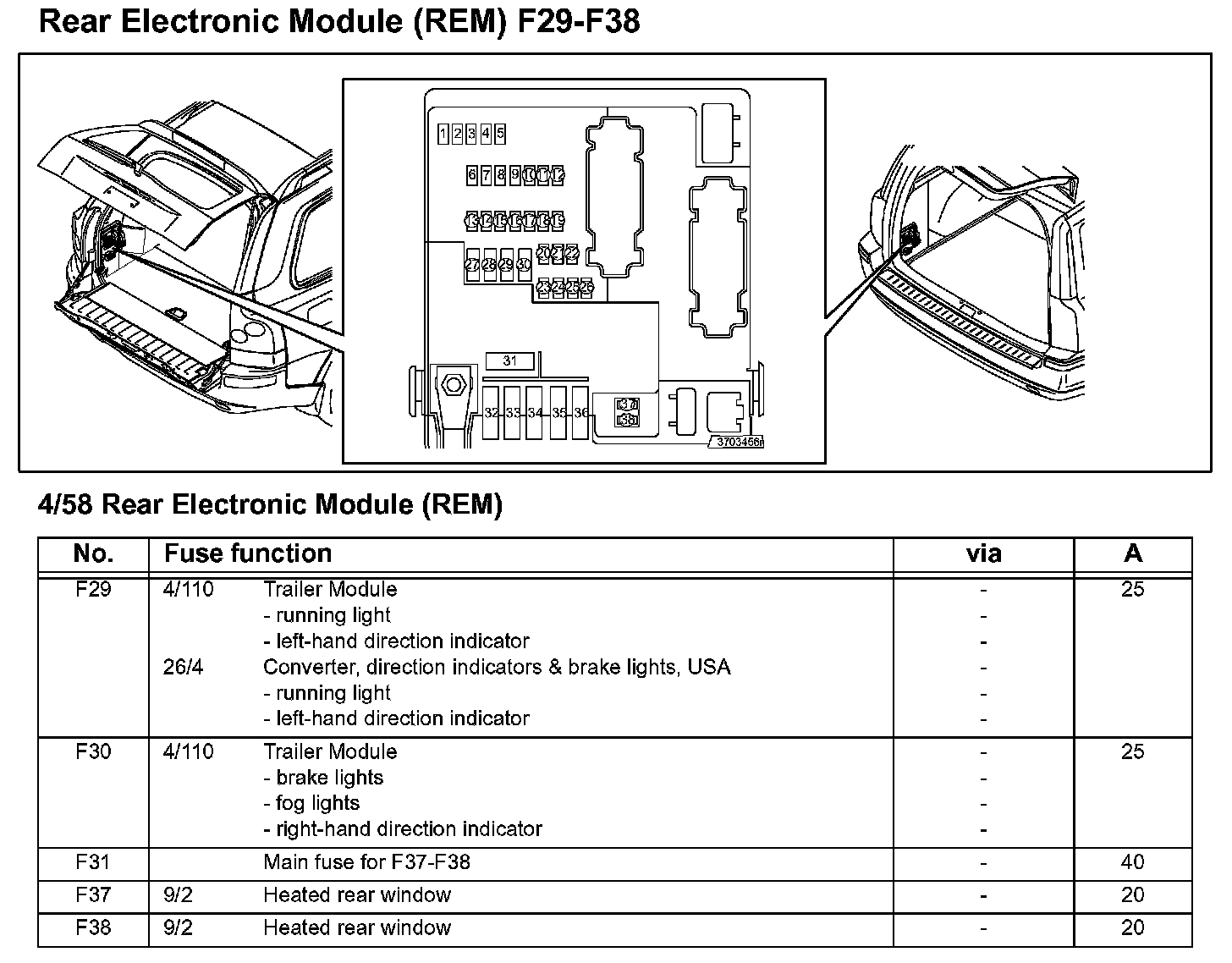

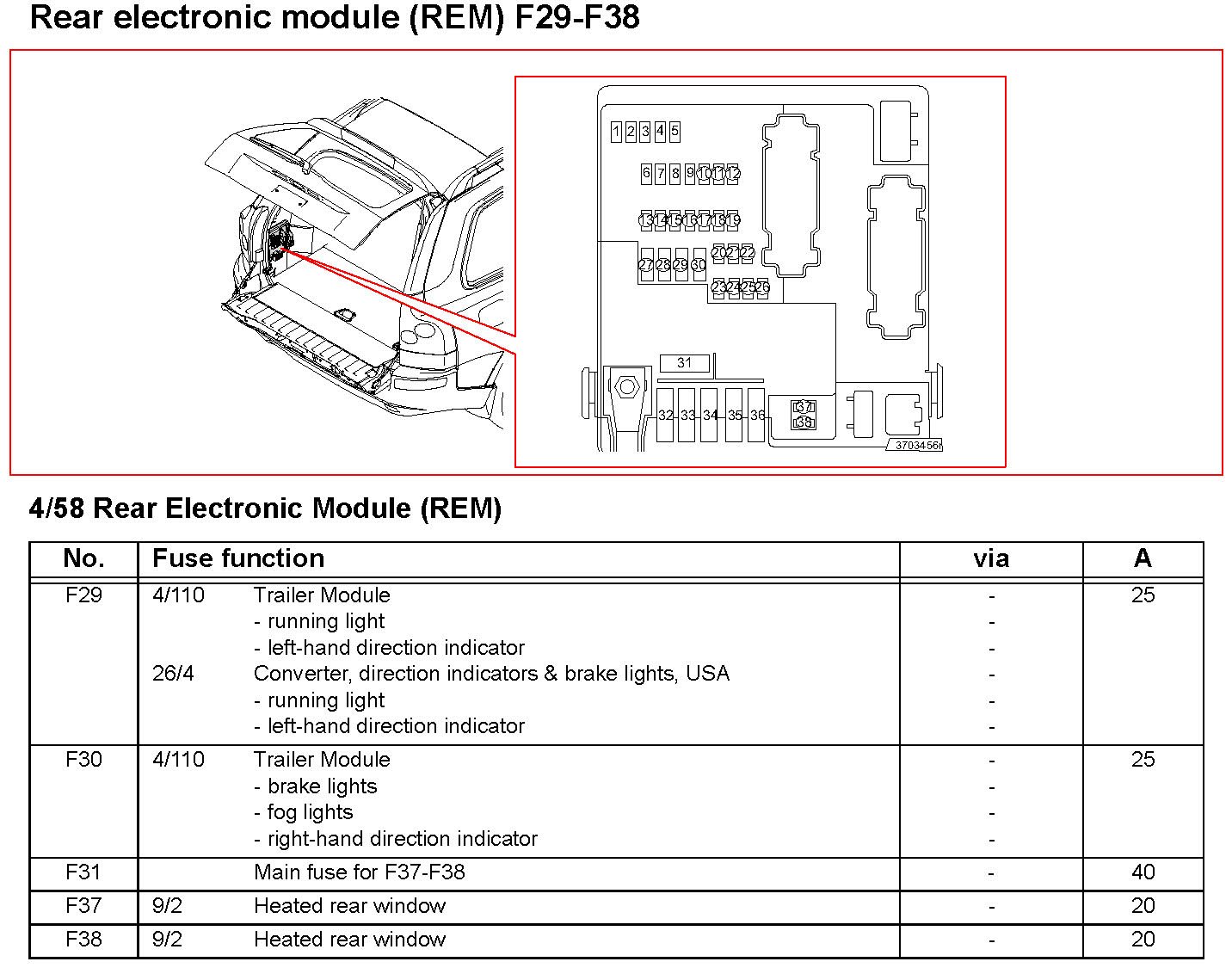

Rear Electronic Module (REM) F29-F38:
