Engine Pad Right, Replacing

Engine pad, right, replacement

Special tools:
999 5716 Reading off tool 999 5716 Reading Off Tool
999 7070 Mounting 999 7070 Mounting
999 5460 Lifting hook 999 5460 Lifting Hook

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work


Remove:
- right-hand front wheel
- the oil filler cap
- the upper engine casing by pulling it straight up.
Fit the oil filler cap.

Installing the lifting tool





Note! When lifting the engine make sure that the lifting eye does not scratch the torque rod. Tape the torque rod and keep it away from the eye.

Install: 999 5716 Reading off tool 999 5716 Reading Off Tool converted with: 999 7070 Mounting 999 7070 Mounting and lifting hooks: 999 5460 Lifting hook 999 5460 Lifting Hook.
Raise the engine slightly on the right-hand side so that the engine pad is unloaded.

Removal

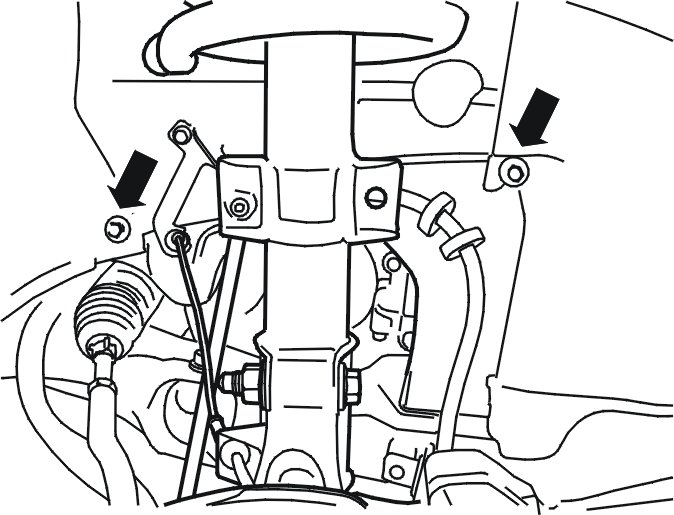

Removing the wing liner





Remove:
- the plastic nuts, x2
- the wing liner.

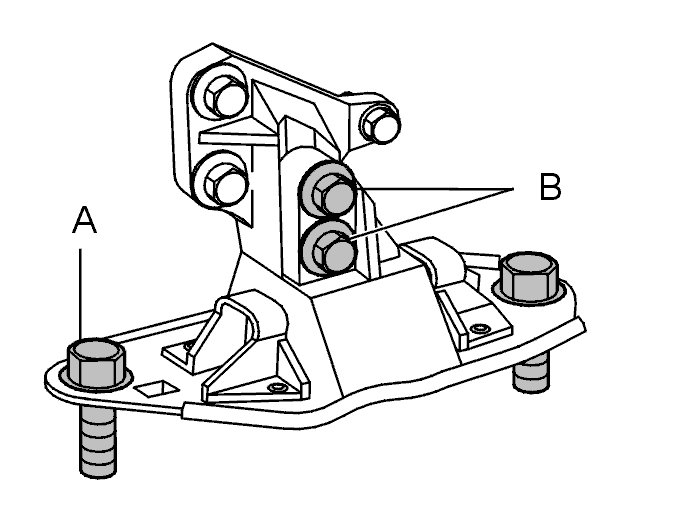

Removing the engine pad





Remove:
- the bolts at A , x2.
- the bolts at B, x2.
- the engine pad.

Installation

Note! For tightening torques, see: Tightening torque, B8444S Tightening Torque.

Installing the engine pad





Install:
- the engine pad
- the bolts at A loosely, x2.
Lower the engine.
Fit the bolts at B, x2.

Tighten:
- the bolts at A, x2 in accordance with: Tightening torque, B8444S Tightening Torque
- the bolts at B, x2 in accordance with: Tightening torque, B8444S Tightening Torque.

Installing the wing liner

Install:
- the wing liner
- the plastic nuts, x2.

Finishing

Removing the lifting tool
Remove: 999 5716 Reading off tool 999 5716 Reading Off Tool , 999 7070 Mounting 999 7070 Mounting and: 999 5460 Lifting hook 999 5460 Lifting Hook.

Remove the oil filler cap.

Install:
- the upper engine casing
- the oil filler cap
- the right-hand front wheel in accordance with: Installing wheels Service and Repair.
