Torque Bracket, Engine, Replacing

Torque bracket, engine, replacing

Removal and Installation

Removing the engine bracket

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.





Remove:

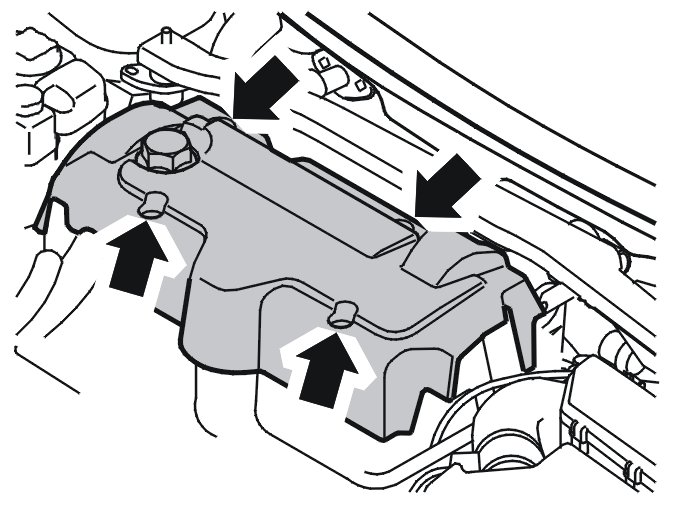

- the engine cover by pulling it straight up
- the torque rod. See
- the bracket for the crankcase ventilation hose
- the lifting lug
- the torque bracket.

Installing the torque bracket





Remove:
- the torque bracket. Tighten the screw (A). Tighten to17Nm. Tighten the screws (C). Tighten to 50 Nm
- the lifting lug and the bracket for the crankcase ventilation hose. Tighten to 10Nm
- the torque rod.
Tighten the screws on the suspension turret. Tighten to 50 Nm. Tighten the screw in the torque bracket (B). Tighten to 80 Nm
- the engine cover.
