Wheels/Tires - Winch For The Spare Wheel May Get Stuck
TIE - Technical JournalTitle: Spare wheel winch< tangled release wire
Ref No: US20927.7.0 en-GB
Issuer: -
Partner: 3 US 7510 Volvo Cars North America
Func Group: 7749 Func Desc: miscellaneous
Status: Released
Status date: 2010-05-07
Issue Date: 2010-05-05
Reference:
Attachment
Vehicle Type
CSC
DTC
Text

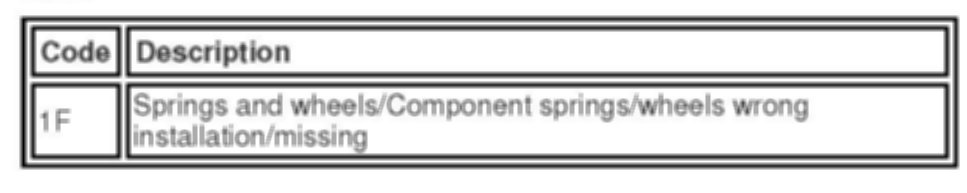

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
NOTE!
THIS DOCUMENT SUPERSEDES THE PREVIOUS RETAILER TECHNICAL JOURNAL 20927 DATED 10-13-2009. The description of the root cause, the chassis range, and the procedure have all changed. PLEASE UPDATE YOUR FILES.
DESCRIPTION:
The winch for the spare wheel may get stuck due to an entangled release wire. It is possible to release the spare wheel but it may get stuck when the wire is rewound.

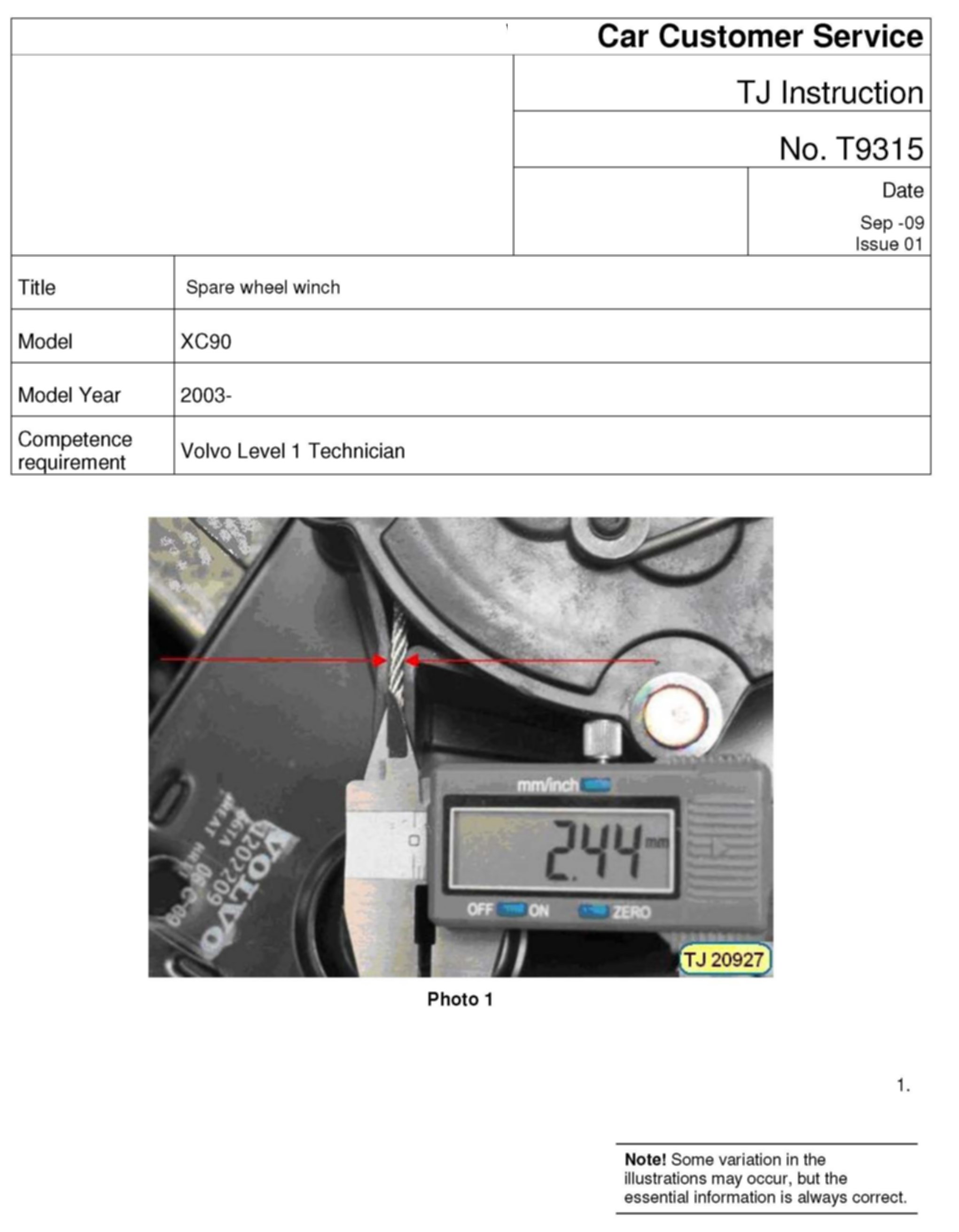

The root cause could be due to a guide rail for the wire that is too narrow. see Photo 1 in the attachment.
PRODUCT MODIFICATION:
Winches with improved guide rail were introduced in production from structure week 2010w16.
MATERIALS:
Parts: PN 31202209 (only for cars in the chassis range in the header)
SERVICE:

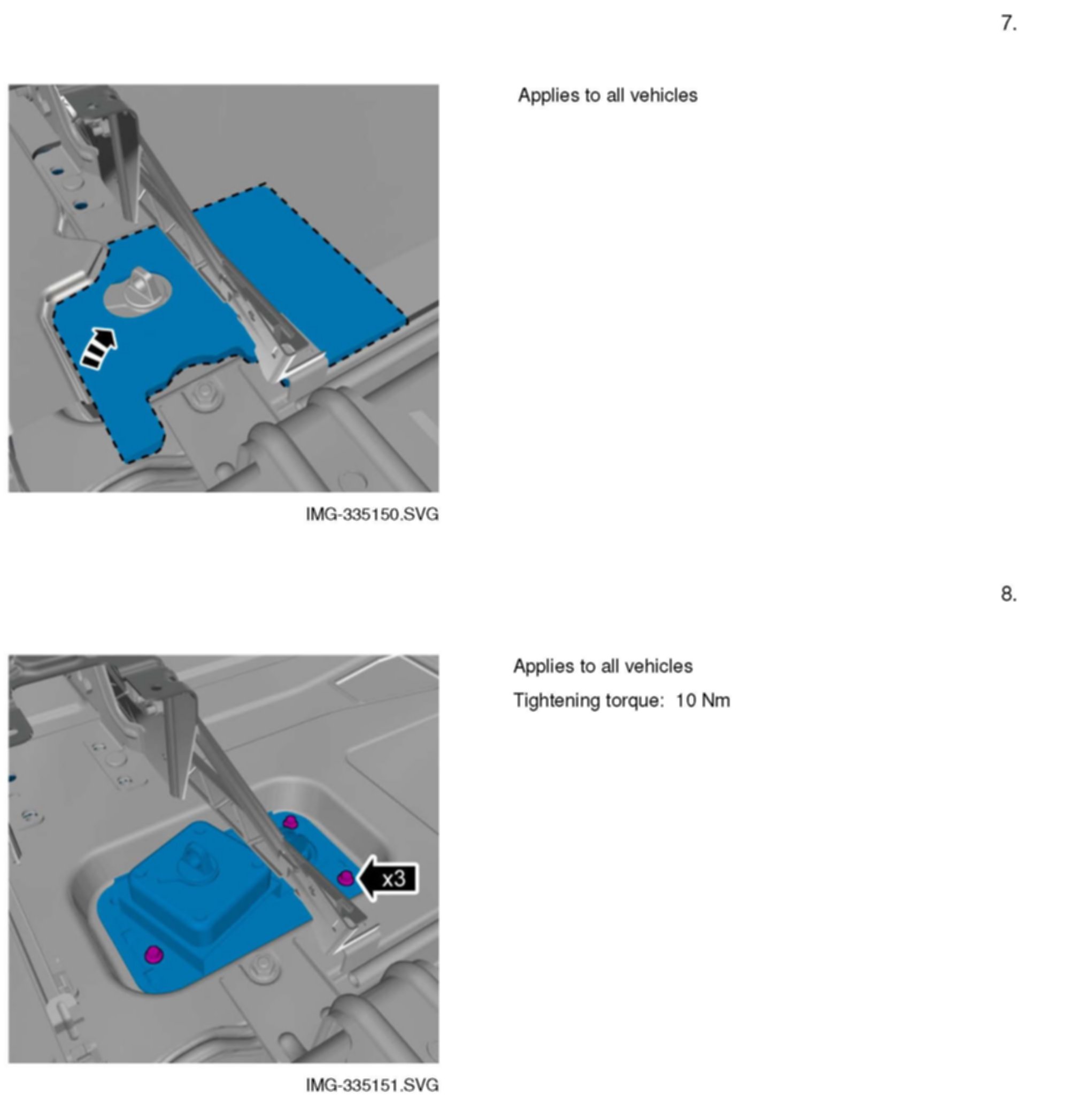

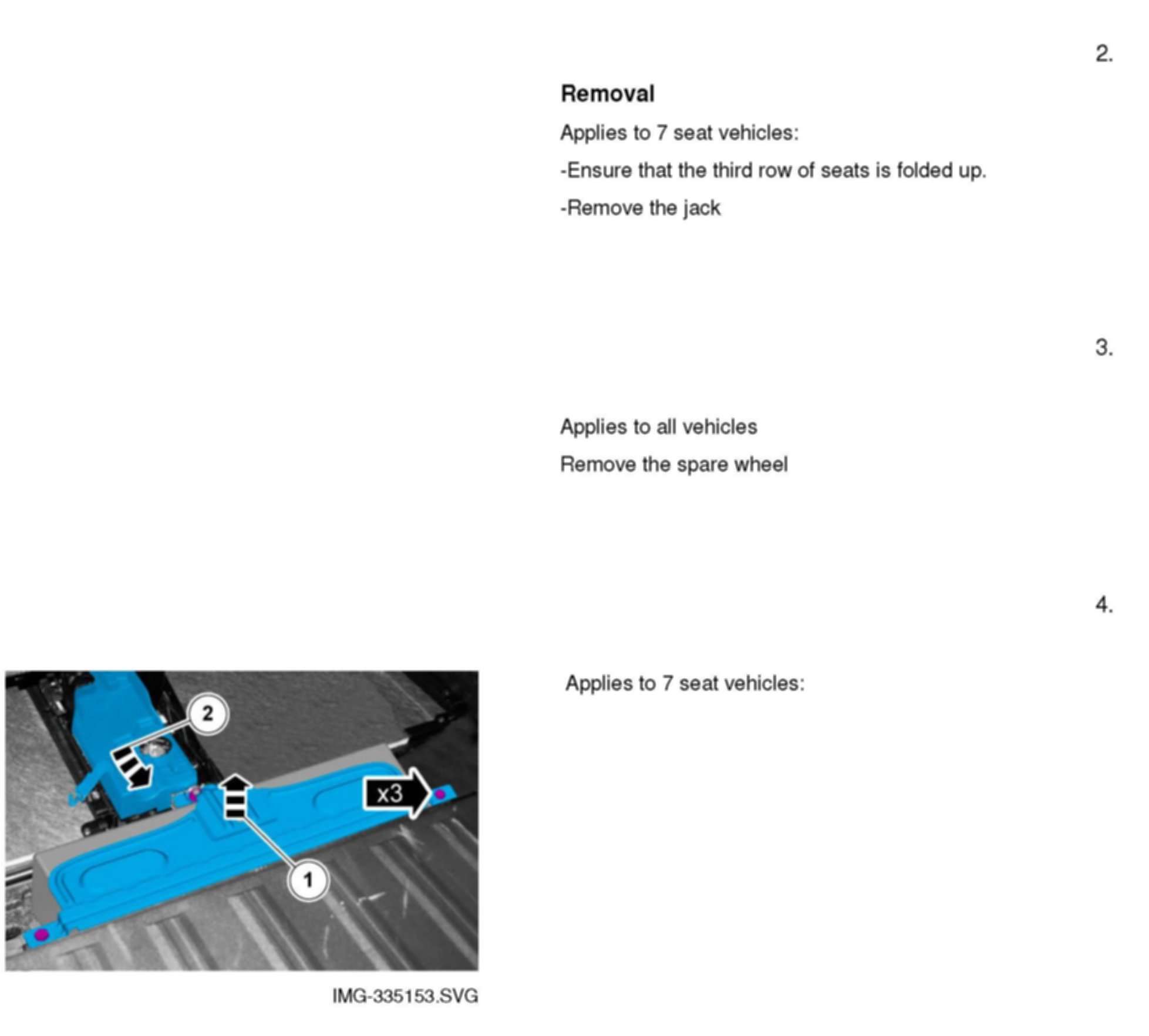

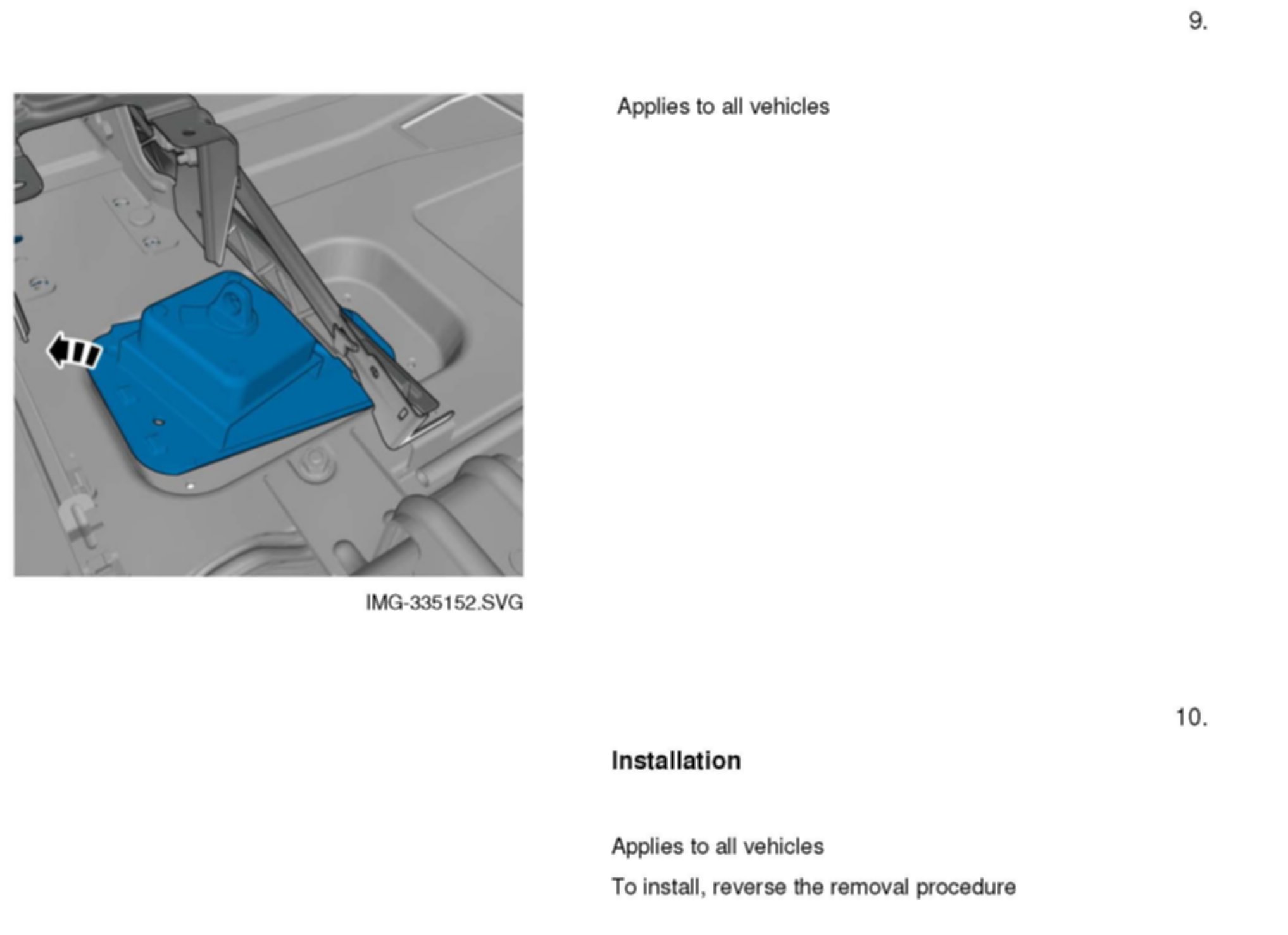

Replace the winch according to the attachment.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number 99666-2- Winch spare wheel replace acc. to TJ20927:
5-seater 0.4 hr
7-seater 0.7 hrs
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.
Car Customer Service
