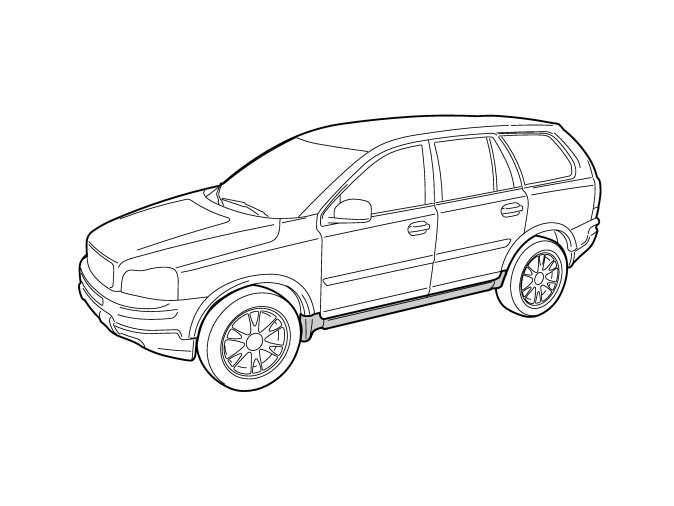

Sill decor

INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces

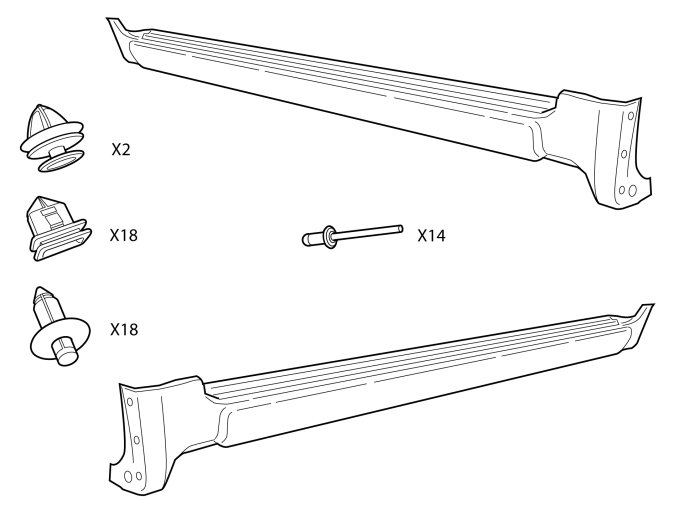

- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.

Sill decor

Preparations

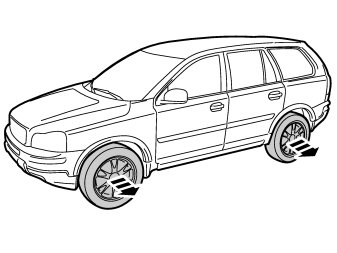

- Remove the front and rear wheels on one side.

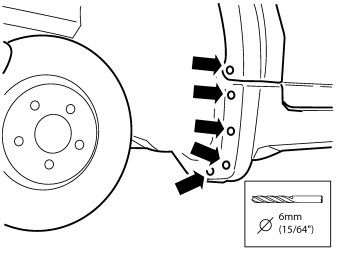

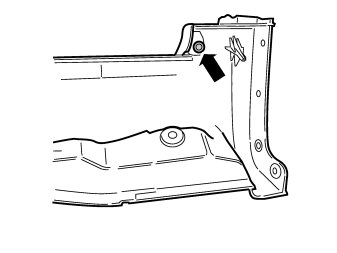

- Drill out the pop rivet at the rear edge of the door sill panel and the rear pop rivet in the wing extender. Use a -6 mm (15/64") drill bit.
- Remove any swarf and rivet residue.

- Carefully turn out the lower edge/rear edge of the front end of the wing extender.

Note! Do not turn excessively so that the tape at the front edge detaches.

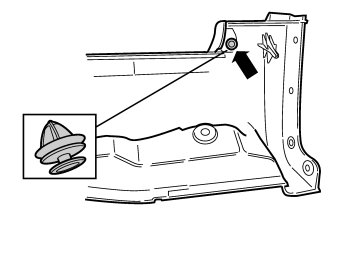

- Remove the clip holding the rear end of the door sill panel.

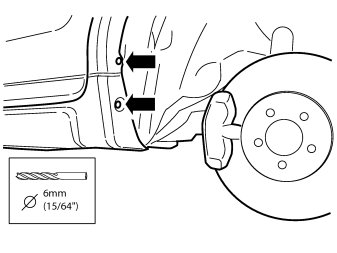

- Drill out the pop rivets at the front edge of the door sill panel and in the rear edge of the wing extender. Use a -6 mm (15/64") drill bit.
- Remove any swarf and rivet residue.

- Carefully turn out the lower edge/rear edge of the wing extender to make room to saw off the pin in the lower edge of the panel on the inside.

Note! Do not turn excessively so that the tape at the front edge detaches.

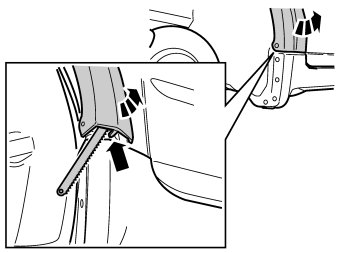

- Carefully cut off the pin on the panel. Use part of a hacksaw blade.

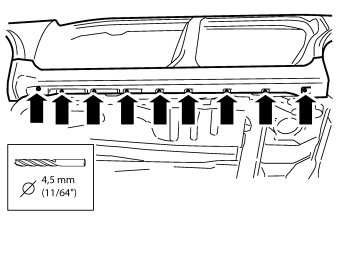

- Drill out the central pins in the clips at the lower edge of the door sill panel and remove them. Use a -4.5 mm (11/64")

- Remove the rubber strip.

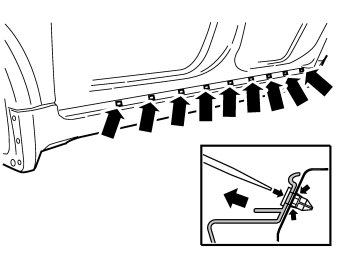

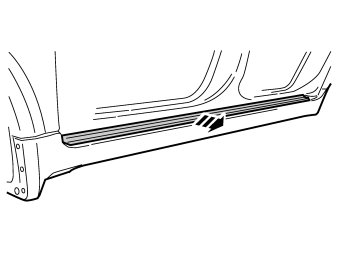

- Insert a large flat-bladed screwdriver, press the bottom of the clips and pull off the door sill panel with the clips.

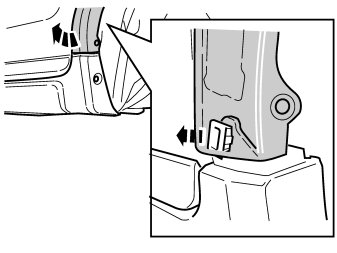

- Detach the door sill panel's front end. It is secured by a clip.

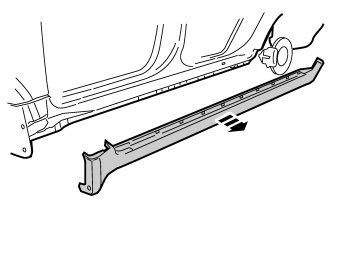

- Remove the panel from the body. It will not be reused.

Installation

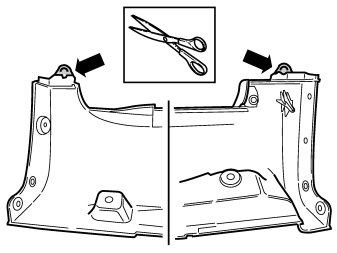

- Take a new panel from the kit. Cut off the mounting eyelets on top of the upper sides.

- Install a new clip.

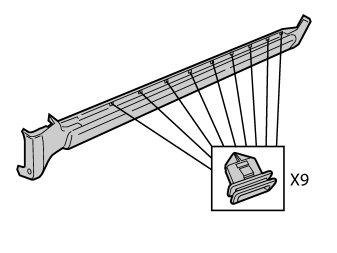

- Install new clips.

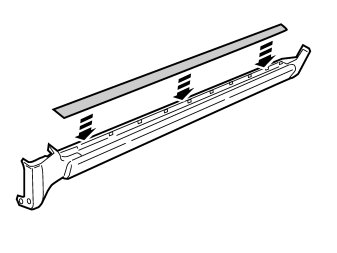

- Press the rubber strip onto the new panel.

- Align the door sill panel ends under the wing extenders.
- Press the front section clips into place.

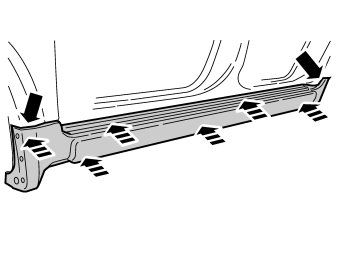

- Press the panel with the rubber strip along the body side. Ensure that all clips engage and that the rubber strip is correctly positioned.

- Press the panel into place in the lower edge using new clips.

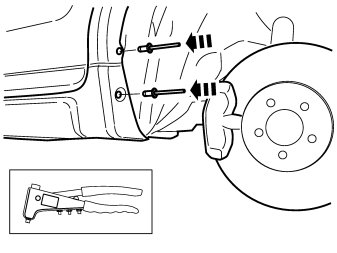

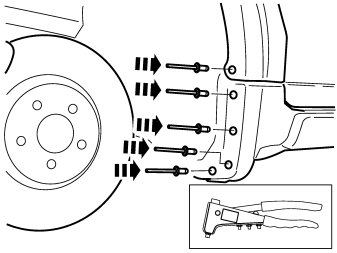

- Pop rivet the panels into place.

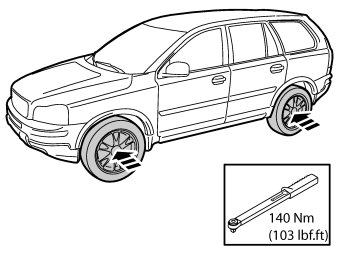

- Reinstall the front and rear wheels.
- Repeat all steps for the other side.
