Emblem (Executive/Premier), Replacement

Emblem (Executive/Premier), replacement

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the badge





Caution! Do not damage the car paintwork.

Use a hot-air gun to carefully heat up the badge.
Carefully lift up one edge of the badge.

Remove:
- the badge
- any tape residue.

Installation

Installing the badge

Note! To ensure optimal adhesion, do not wash the car for 72 hours.

Note! In order for the badge to secure, the surface must be clean and free of dust and grease. Guide the badge into the position indicated in the dimensions. Press the whole badge to ensure the tape is in good contact with the base. Check that the edges of the badge are against the base.

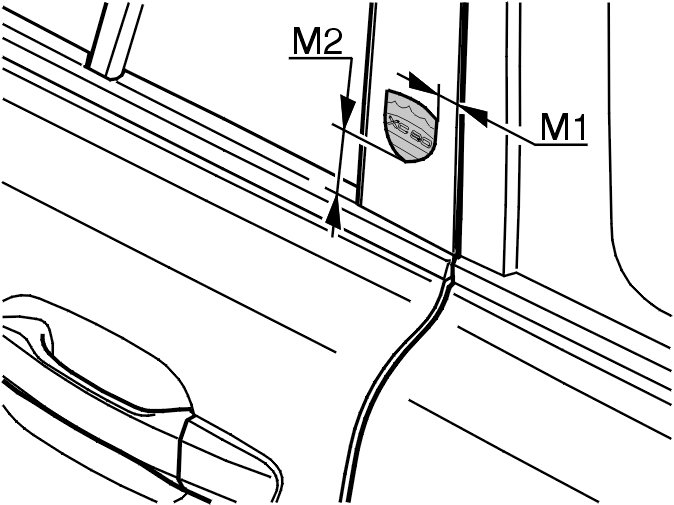

Use the following dimensions for the executive badge:





Ensure that the car is at least at room temperature (>20°C). Wash the area for the badge. Use a 50/50 mixture of isopropanol and water.
Wipe clean and dry using a lint-free cloth.
