Treble Loudspeakers, Front Door

Treble loudspeakers, front door















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces
- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation.
- Cut out the text page in order to follow the illustrations and text at the same time.






Treble loudspeakers, front door





- Remove the panel at the front edge of the door by carefully prying loose using a plastic weatherstrip tool.

Note! Leave the clips for the panel in the door.

- Place the panel to one side. The panel will not be reused
- Take the existing cable positioned behind the panel.

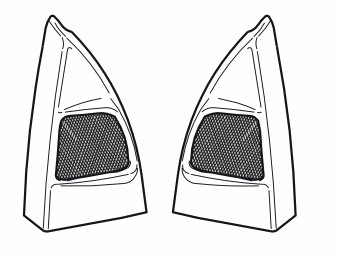

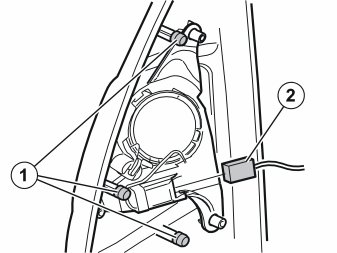

- Take the panel with the loudspeakers from the kit. Pull off the pre-mounted clips (1) and place to one side. Similar clips are left in the door
- Connect the cable (2) prepared in procedure 1 to the connectors for the treble loudspeakers.





- Press the panel with the treble loudspeakers in the clips which are in the door
- Repeat the operation on the other side.
