Treble Loudspeaker, D-Post

Treble loudspeaker, D-post















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces
- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation.
- Cut out the text page in order to follow the illustrations and text at the same time.






Treble loudspeaker, D-post

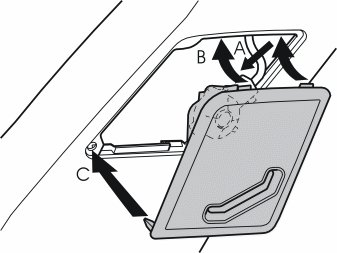

- Remove the loudspeaker grille in the D-post (secured by two catches) by carefully prying loose at the rear edge using a weatherstrip tool.

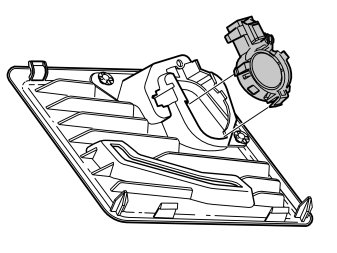

- Install the treble loudspeaker (marked LH for the left and RH for the right) on the reverse of the loudspeaker grille. Press into position.





- Connect the pre-routed cables to the treble loudspeaker. Reinstall the loudspeaker grille with the loudspeaker
- Repeat the operation on the other side.
