Monitor/DVD-player

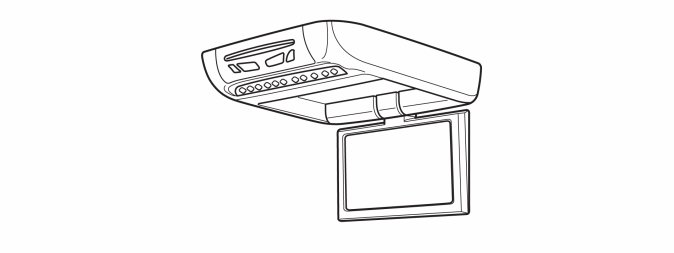

Monitor/DVD-player is central unit in the system for roof-mounted rear seat entertainment. Monitor and DVD-player are integrated and located in the roof between the front seats.
The unit interprets and performs the commands given by the user with the system's infrared remote control. Via external inputs (AV-panel), other audio and video sources can be connected, e.g., game pads or video cameras.
The monitor is an 8 inch TFT LCD-screen with a size format of 16:9 and with a 120 degree horizontal viewing angle. The monitor is manually adjustable in x-axis and via remote control adjustable in Y-axis.
The monitor is adapted to both PAL as well as NTSC.
The DVD-player mechanism has an anti-shock system and it helps to prevent the image or sound skipping when played. The DVD-player has Slot-in disc insertion and region coding programmed into the software. The region code can be changed using a security code.
The DVD-player has memory handling to remember where, e.g., in a film different power cut-off's occurred.
The system has 30-feed, that is, supplied directly from the battery. However, there is a signal that informs when the ignition turns off, and a question appears on the monitor if the system is to be active for another hour. Then the system will be shut off automatically and the ignition must be turned on again to start the system. There is also a voltage monitor that turns off the system when the battery voltage is too low.
The built-in loudspeakers can be turned off/on independent of the headphones.
To be able to select external audio and video sources there is an AUX-connection on the back of the unit. 3xRCA for video (yellow) and audio (red and white). AUX-inputs can be used to input signals from video camera, video game pad, VHS-video, MP3-player, portable DVD- or CD-player.

The following media formats can be played by the DVD player:
- DVD-R/+R
- DVD-RW/+RW
- CD-R/+R
- CD-RW/+RW
- CD-3 (80 mm)

The following information formats can be played:
- DVD - Video, Audio
- Audio CD (CD-DA)
- Super Audio CD (SACD)
- MP3 Audio CD/MP3 ID3 Tags ISO 96660
- VCD (Video CD)
- SVCD (Super VCD)
- DIVX/MPEG-4
- Photo-CD Kodak
- Photo-CD (JPEG ISO 9660)
- WMA - Video, Audio
Formats such as THX and Dolby Digital are also supported. Only stereo signals of this audio format are reproduced.
For a simple check that the unit is supplied with voltage and grounded, turn on the ignition. The background lighting for the POWER-button should come on. Activate the system by pressing on the POWER-button. Then monitor will be lowered.

Change of DVD player region code
The region coding means that only discs with the region code matching that of the DVD player can be played.
The regional code in the DVD-player can be changed up to 20 times. After that the set region will be locked and cannot be changed again.

Note! Warranty repairs due to locked region on the DVD player will not be approved. Region code changes to the region in which the vehicle will be used is to be done at the workshop. The security code is not to be given to the customer.

Do as follows to open the menu for region code change:
1. Switch on the ignition.
2. Switch on the system

Note! There must not be a disc in the DVD player.

3. Point the remote control at a screen and hold down the button for child lock for approx. 5 seconds. The menu SERVICE MENU will be shown with four starts underneath.
4. Enter the code 1971 using the arrow keys on the remote control and then press OK.
5. Select menu REGION CODE and press OK.
6. Select the region code which applies to the relevant vehicle and press OK.
7. Check that the set region code, which will be shown in the top left-hand corner of the screen corresponds with the region where the vehicle will be used.
8. Switch off the system
The submenu can then be used to select a new region for the DVD player.

Headphones




The wireless IR-headphones can be used for all passengers in the rear seats. Standard audio is transmitted via IR to the headphones in two-channel stereo format. The headphones are powered by an internal battery. The headphones are turned on with a button on one side and the volume, in each headphone, can be adjusted with a knob.

Remote control




The remote control can be used to switch between different audio and/or video inputs in the system:
- DVD player, audio/video
- AUX-panel, audio or audio/video
The remote control can be used to navigate in the menu systems, system menu, DVD-menu and service menu.
