System Overview

System overview

System for roof-mounted rear seat entertainment




The system for rear seat entertainment is a mobile entertainment to keep the rear seat passengers occupied and amused with TV-games or movies.

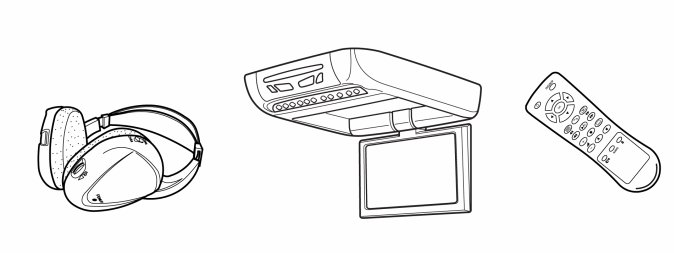

The roof-mounted system consists of a unit with an 8-inch monitor with integrated DVD-player. The unit is mounted in the roof between the front seats. The unit has automatic opening/closing of the monitor when it is turned on/off.

The following media formats can be played by the DVD player:
- DVD-R/+R
- DVD-RW/+RW
- CD-R/+R
- CD-RW/+RW
- CD-3 (80 mm)

The following information formats can be played:
- DVD - Video, Audio
- Audio CD (CD-DA)
- Super Audio CD (SACD)
- MP3 Audio CD/MP3 ID3 Tags ISO 96660
- VCD (Video CD)
- SVCD (Super VCD)
- DIVX/MPEG-4
- Photo-CD Kodak
- Photo-CD (JPEG ISO 9660)
- WMA - Video, Audio
Formats such as THX and Dolby Digital are also supported. Only stereo signals of this audio format are reproduced.
An AUX-panel with RCA-inputs is found on the back of the DVD-player. Through this, other audio and video sources can be connected to the system, such as video cameras, game pads or portable MP3-, DVD- and CD-players.
The system includes two pairs of wireless headphones. Audio is transmitted to the headphones via an IR-transmitter from the monitor/DVD-player. Wired headphones can also be connected. Audio can also be played via internal speakers in the unit.
Control of the system is also possible with an infrared remote control.

Signals

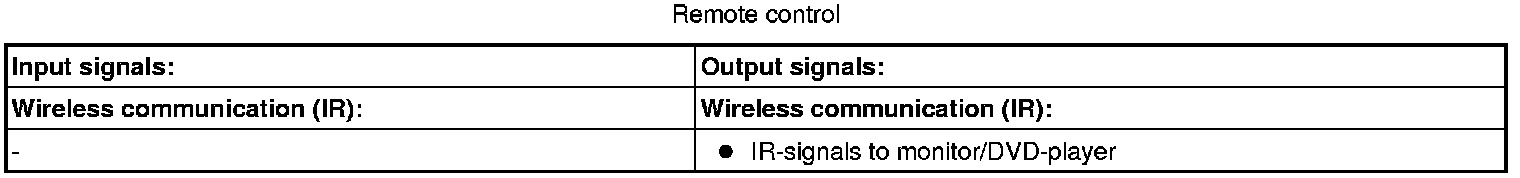

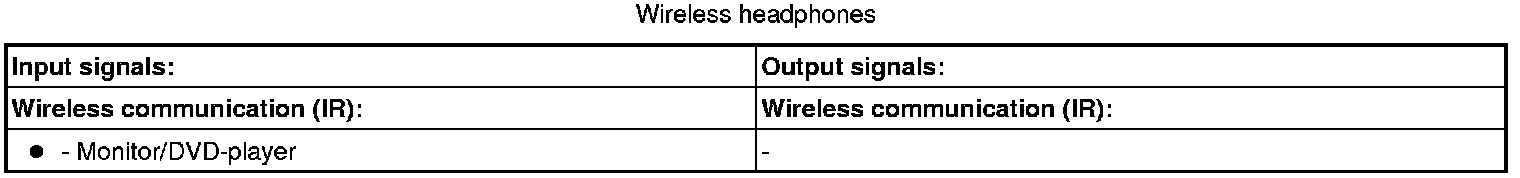

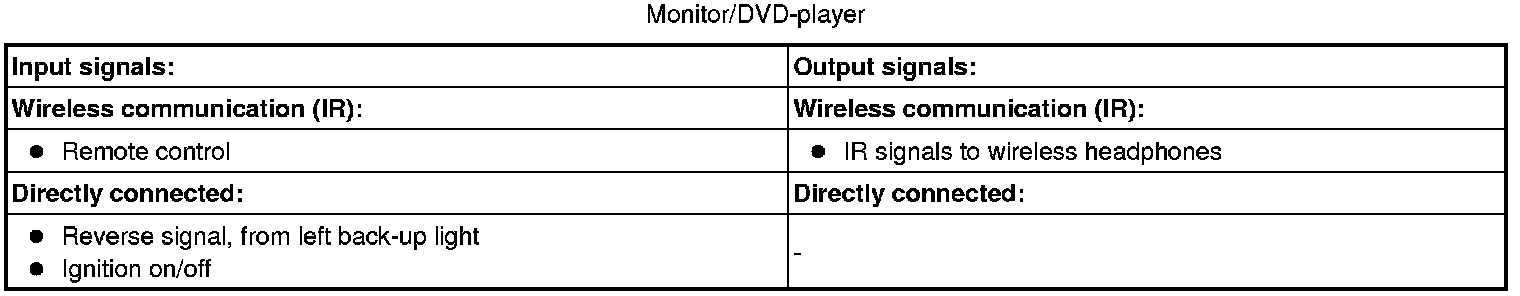

The tables below include the input and output signals for the unit in the system for rear seat entertainment.
